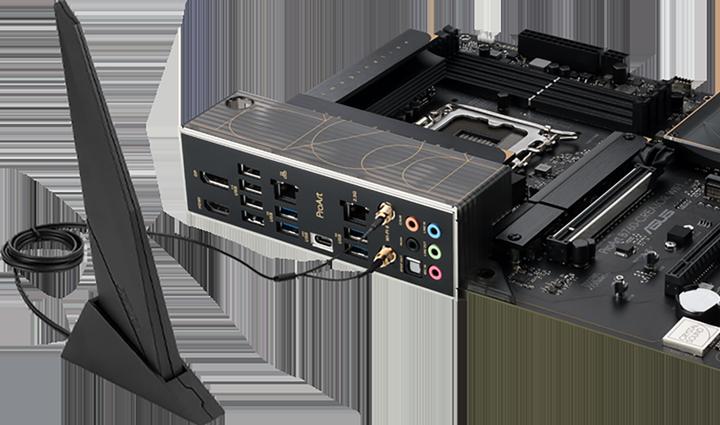

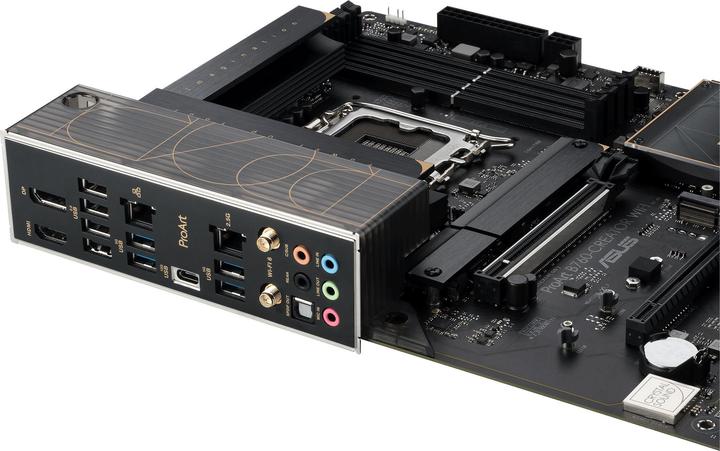

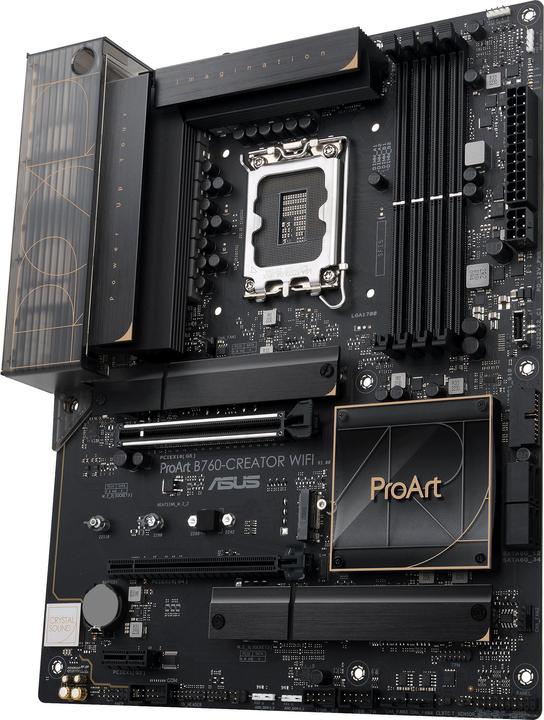

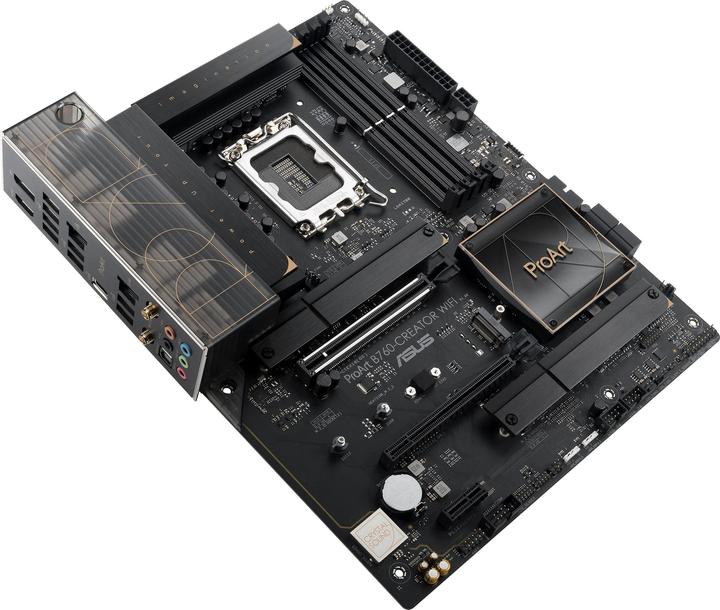

ASUS ProArt B760-CREATOR WIFI

LGA 1700, Intel B760, ATX
3Ratings
BrandMore from ASUS
Delivered between Thu, 3.7. and Fri, 4.7.
More than 10 pieces in stock at third-party supplier
Supplied by
ASUS DE
free shipping

Product details

Intel LGA 1700 Socket: Ready for Intel Core processors of the 13th and 12th generation.
Comprehensive connectivity: WiFi 6, 2.5 Gb and 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt header support, and a USB 3.2 Gen 2x2 Type-C port on the front with 60W Quick Charge 4+.
Next-generation performance: 12+1 power stages with a rated power of 50 Amperes, PCIe 5.0 ready.
Optimized cooling design: Enlarged VRM heatsinks, aluminum M.2 heatsink, six 4-pin PWM fan headers, and an AIO pump header.
ProArt offers you more: Two-way AI noise cancellation for clear online communication and ProArt Creator Hub with CreationFirst for all-in-one system control.
Enhanced security features: USB port restriction, software blacklisting, and Windows registry protection via ASUS Control Center Express.

Key specifications

Processor family
Core i3, Core i5, Core i7
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (3x), S-ATA (4x)
Wireless transmission
Bluetooth
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Item number
36851568

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1FY0-M0EAY0
Release date
29.6.2023
Sales rank in Category Motherboards
294 of 954
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
BIOS type
UEFI
Wireless transmission
Bluetooth
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Core i3, Core i5, Core i7

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections

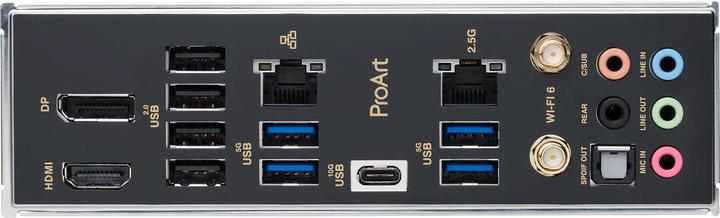

DisplayPort (1x), HDMI (1x)

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel
Ethernet controller
Intel
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel

Internal interfaces

Internal connection options
M.2 (3x), S-ATA (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (3x)
PCI express version (max.)
5
Number of fan connector
6

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (6x), USB-A 3.0 (4x), USB-B 3.1 (1x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
incl. accessories, Manual and G, Product in OVP

Product dimensions

Length
305 mm
Width
244 mm
Weight
1950 g

Package dimensions

Length
34.60 cm
Width
28.50 cm
Height
7.30 cm
Weight
1.92 kg
