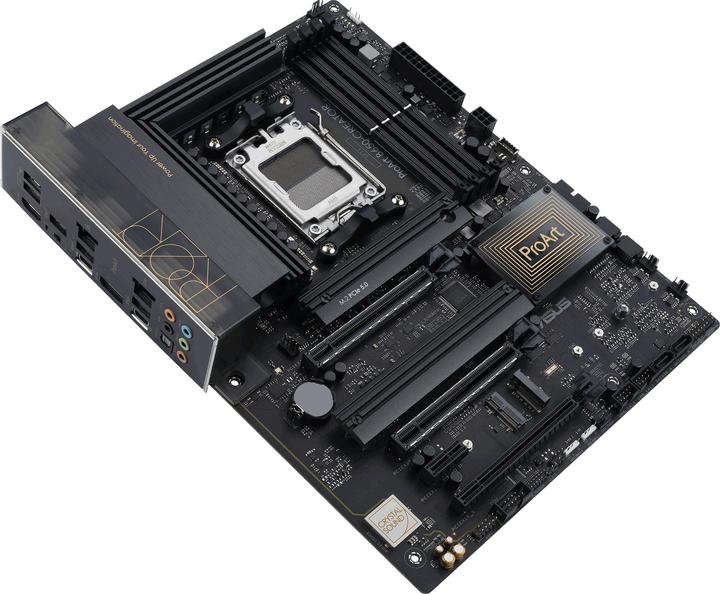

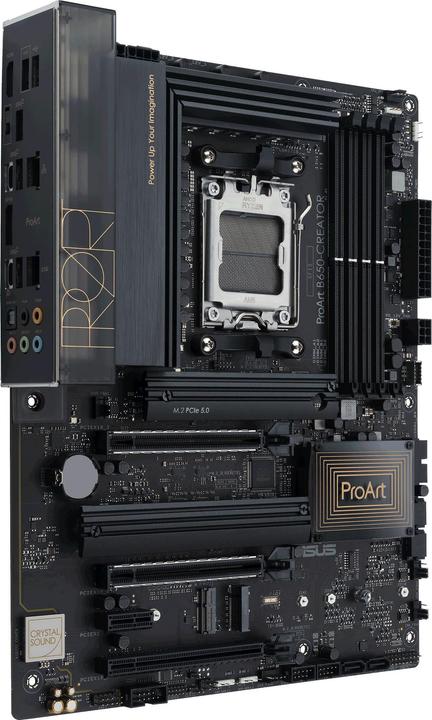

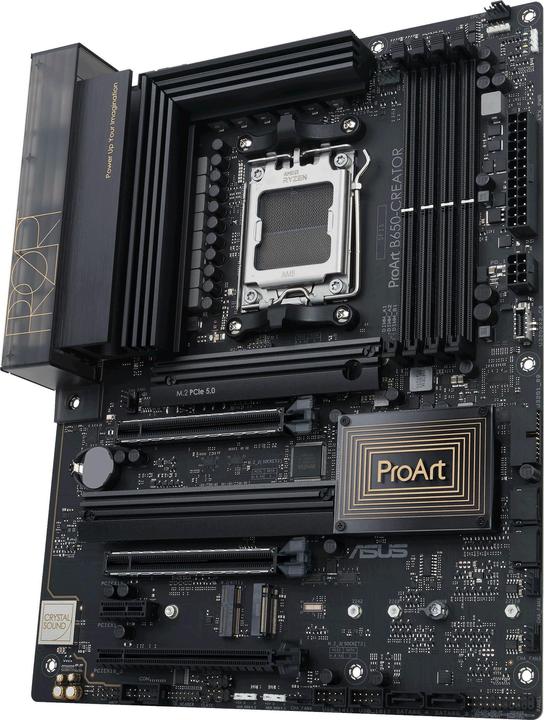

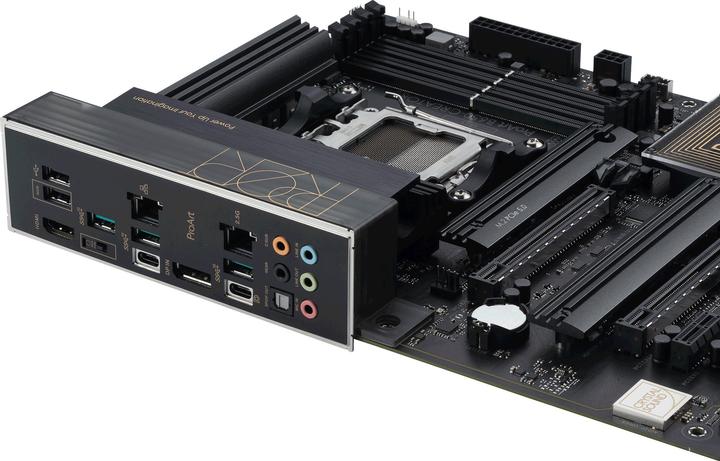

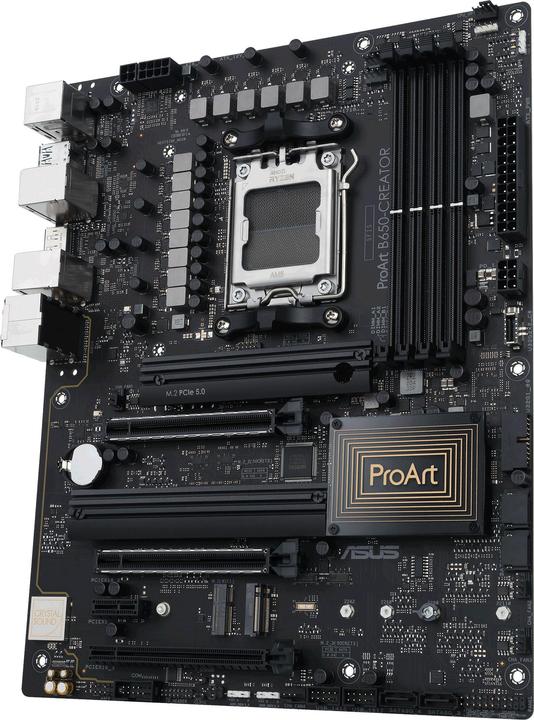

ASUS PROART B650 Creator

AM5, AMD B650, ATX
13Ratings
BrandMore from ASUS
Delivered between Thu, 25.6. and Fri, 31.7.
Supplied by
free shipping

Product details

The ProArt B650-Creator is an advanced motherboard designed for intensive workloads in content creation, such as virtual production, 3D rendering, and 4K/8K video editing. It unleashes the power of AMD Ryzen 7000 series processors through a robust power delivery and cooling design. Its comprehensive connectivity includes integrated 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front panel port with Quick Charge 4+, and DisplayPort over USB-C.

Key specifications

Mainboard features
Front panel audio connector, RGB header, Thunderbolt header
Wireless transmission
Bluetooth, Wi-Fi
Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Number of memory modules (RAM)
4x
Memory type
DDR5 RAM
Internal connection options
M.2 (4x), S-ATA III (4x)

General information

Item number
23351535
Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1C40-M0EAY0
Release date
9.3.2023

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector, RGB header, Thunderbolt header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi

Processor

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
6400 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 Gigabit Ethernet (2x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (4x), S-ATA III (4x)
Expansion slot
PCI Express x16 (3x), PCI Express x4 (1x)
PCI express version (max.)
4
Number of fan connector
4

Further connections

USB ports
USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2 (2x)

Power supply

Power connectors
12-pin PCI-E, 24-pin ATX, 6-pin PCI-E, 8-pin PCI-E

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
2989.5 kg
Climate contribution
CHF 16.23

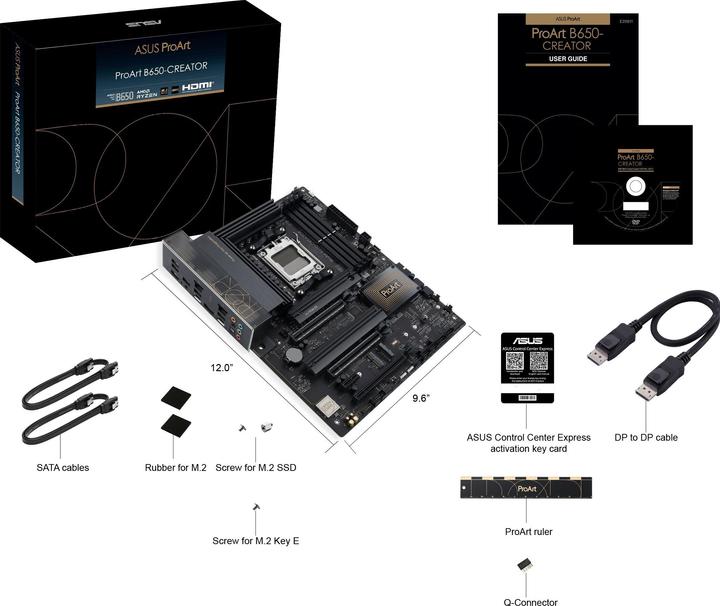

Scope of delivery

Scope of delivery
SATA cable

Product dimensions

Length
244 mm
Width
305 mm
Height
71 mm
Weight
1950 g

Package dimensions

Length
34 cm
Width
28 cm
Height
7 cm
Weight
1.94 kg
