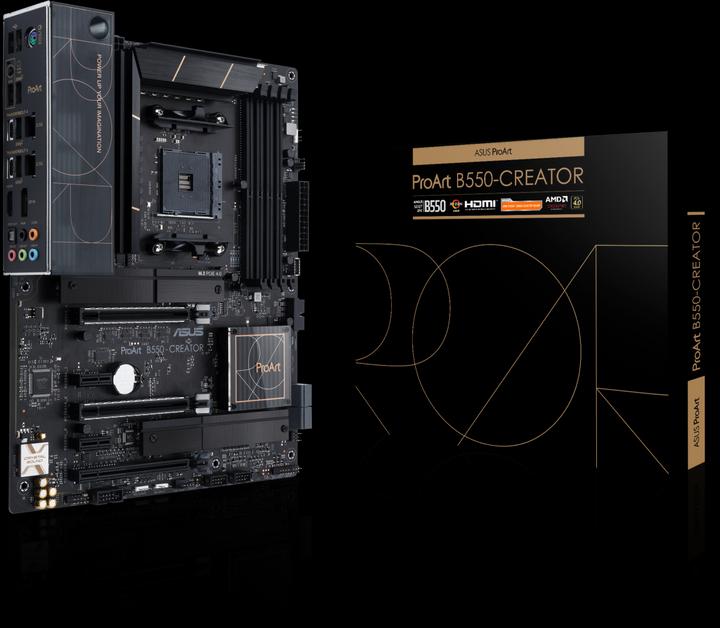

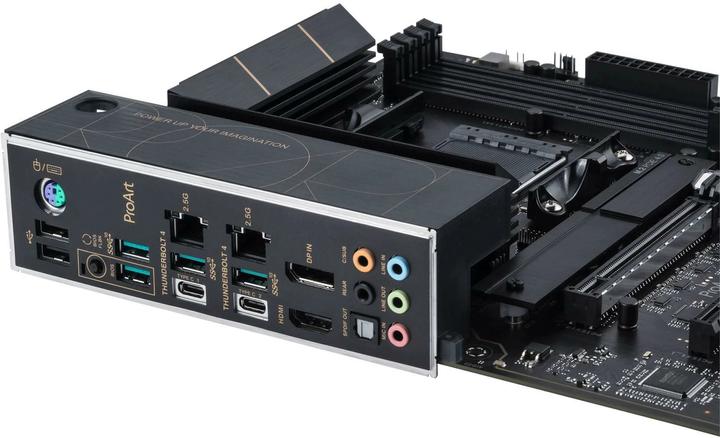

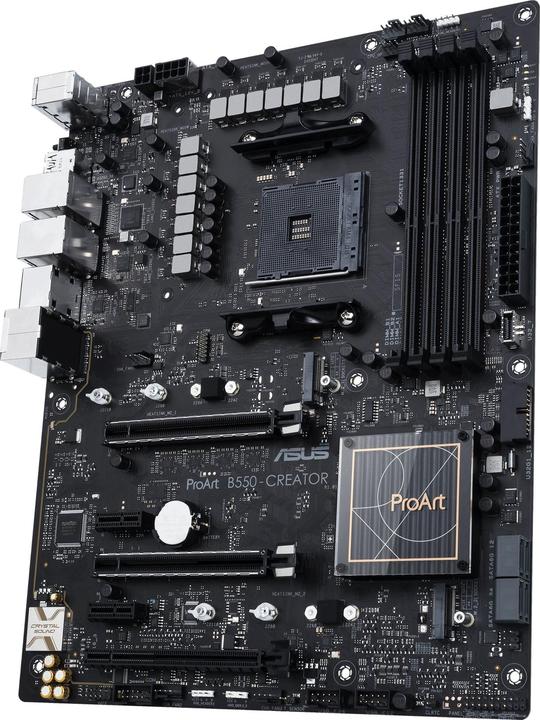

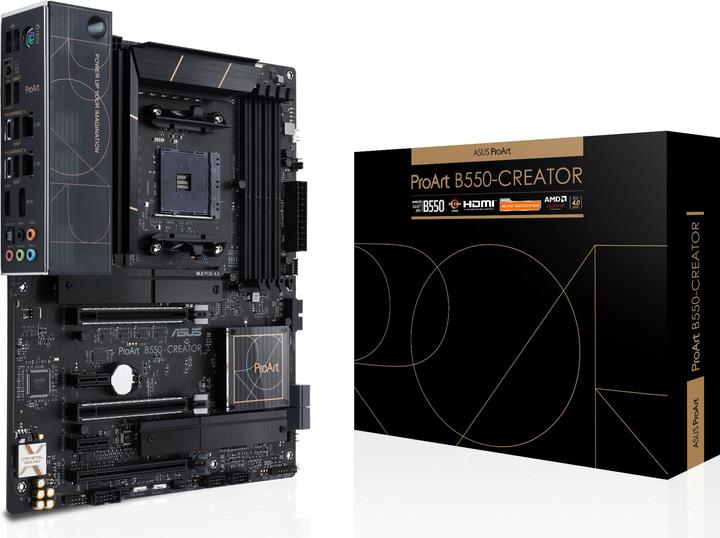

The ProArt B550 Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Equipped with comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the processing power of the latest AMD Ryzen processors so you can create faster and get more done. Combined with a sleek design, advanced security features, and the proven stability and reliability ASUS motherboards are known for, the ProArt B550-Creator perfects the art of performance to enhance your creative flow. A comprehensive range of high-performance I/O ports, including two Thunderbolt 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports, enable fast data transfers and extensive storage options with flexible, hassle-free connectivity. The ProArt B550 Creator provides robust power and comprehensive cooling to handle the latest AMD Ryzen processors. It also supports PCIe 4.0, giving you everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compilation.
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 SATA (2x), S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 15754276 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB17L0-M0EAY0 |
Release date | 8.11.2021 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 4866 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Video connections | HDMI (2x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 SATA (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 1.0 (1x), USB-C 4 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 305 mm |
Height | 680 mm |
Weight | 2000 g |
Length | 34 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 2 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
The $299.99 Asus ProArt B550 Creator includes dual M.2 sockets, 8 USB ports on the rear IO (including two TB4 Type-C ports), dual 2.5 GbE, and an appearance that fits in with most build themes. If you're looking for Thunderbolt 4 ports for ultra-fast transfer or enhanced video outputs, the Creator is worth a look.
