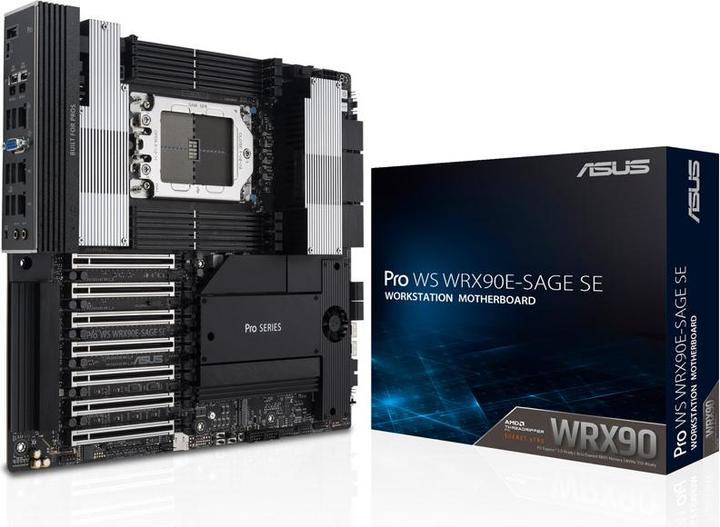

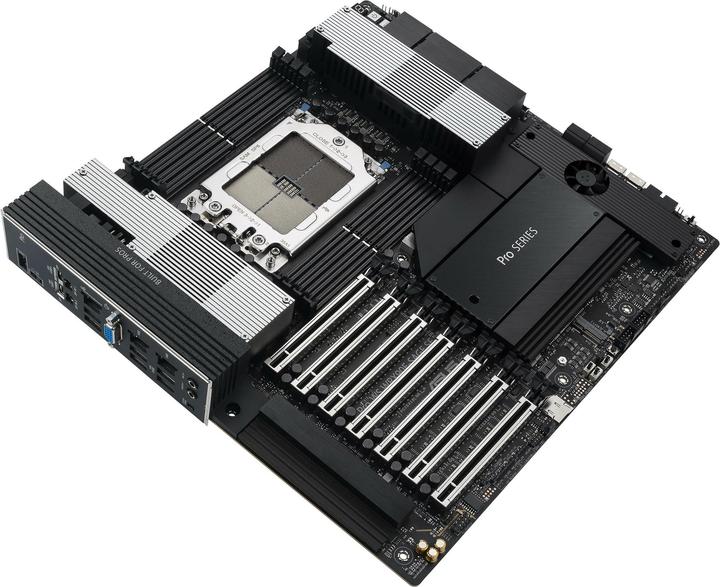

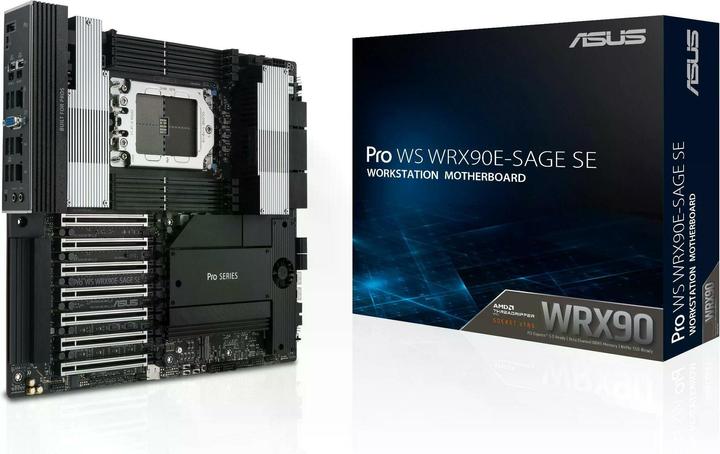

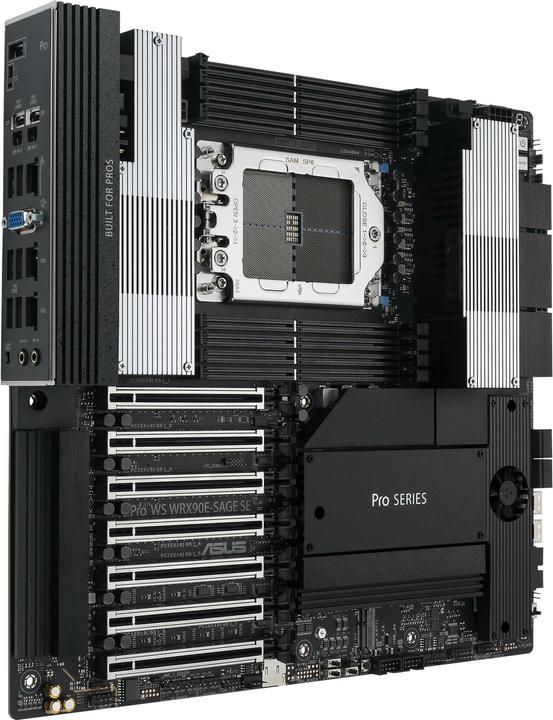

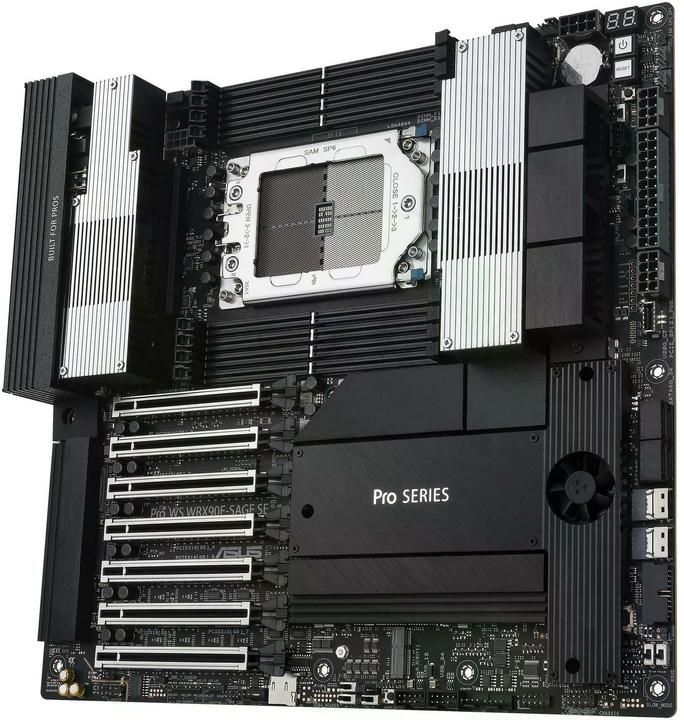

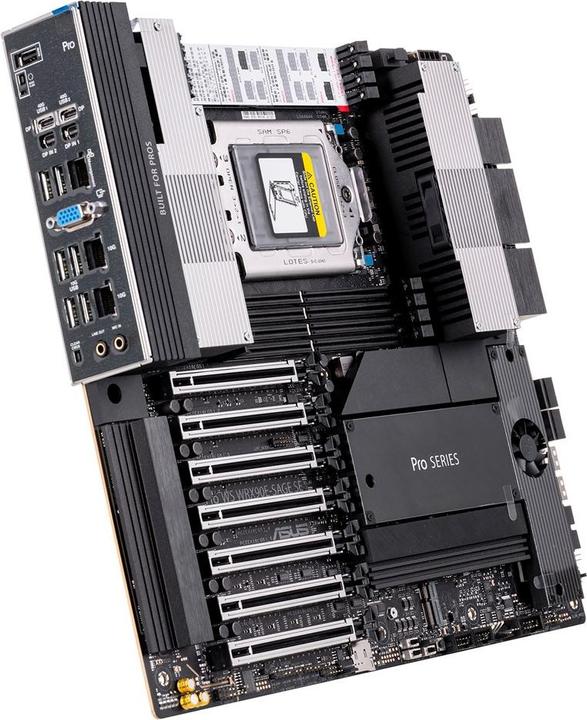

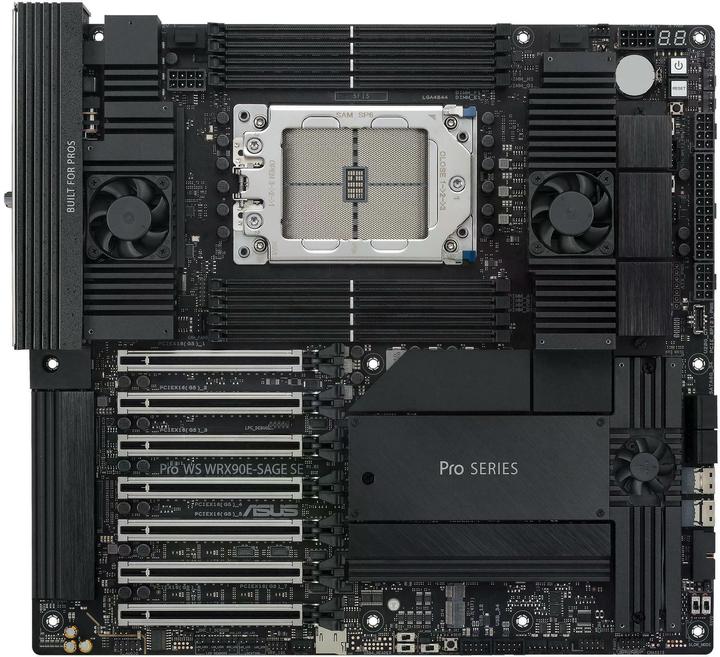

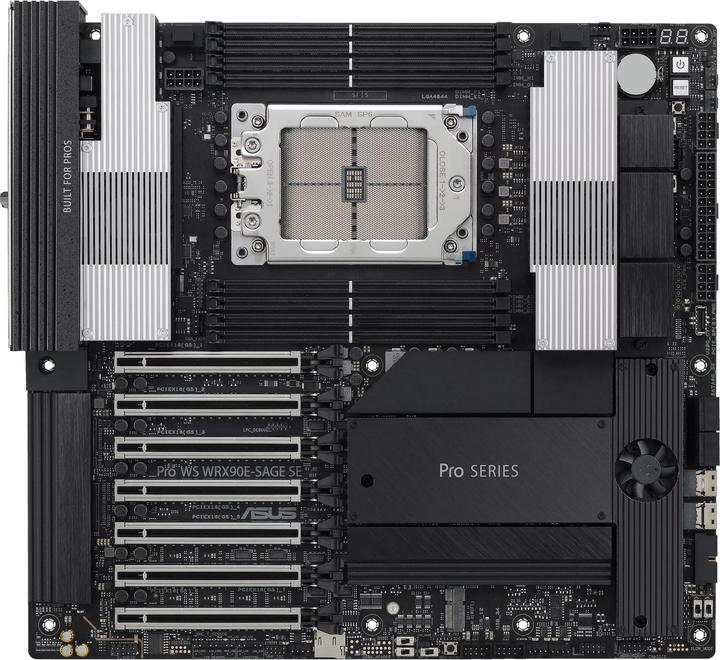

The AMD sTR5 socket supports up to 96-core CPUs and is ready for the AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors.
It offers ultra-fast connectivity with seven PCIe® 5.0 x16 slots, two 10-Gbit LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® ports, and SlimSAS NVMe support.
CPU and memory overclocking supports up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).

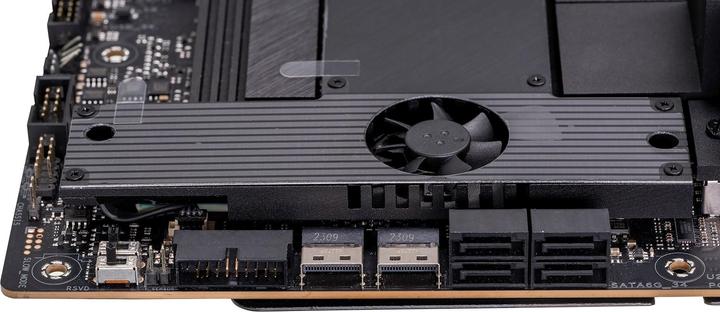

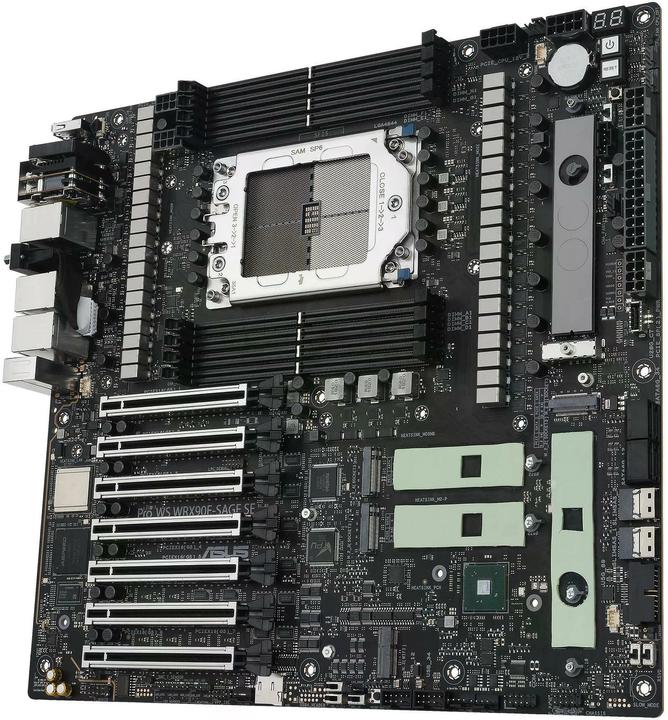

The robust power and thermal design includes 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, as well as chipset and M.2 heatsinks with active fans and an M.2 thermal pad.
With the PCIe Q-Release Slim feature, you can easily remove the graphics card by pulling it straight up instead of pressing a PCIe latch.
The IPMI-level remote management and integrated BMC provide hardware and software layers with a dedicated LAN port connected to an integrated AST2600 BMC controller, along with ASUS Control Center Express software for real-time monitoring and management.
Trusted stability is ensured through comprehensive compatibility with the latest technologies, an extensive QVL list, and testing for 24/7 operation.
Processor family | Ryzen Threadripper, Ryzen Threadripper Pro |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (4x), USB 2.0 Header (2x) |
Wireless transmission | Wi-Fi |

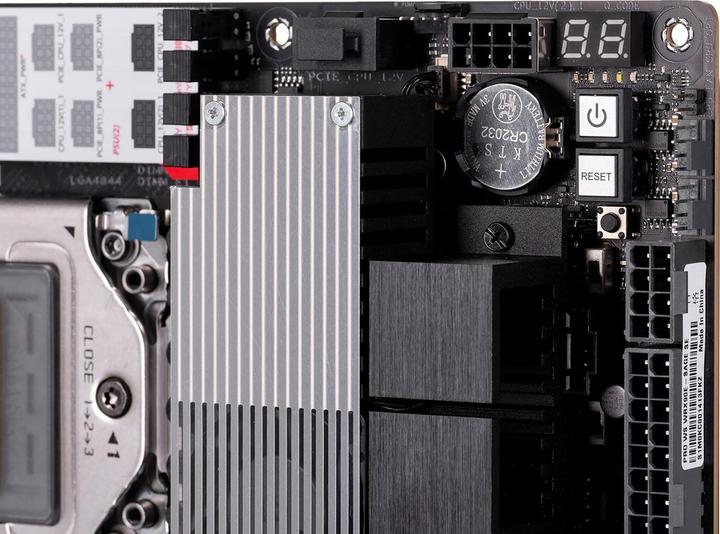

Mainboard features | Clear CMOS Button |
Item number | 40318390 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1FW0-M0EAY0 |
Release date | 30.11.2023 |
Sales rank in Category Motherboards | 198 of 1021 |
Form factor | SSI EEB |

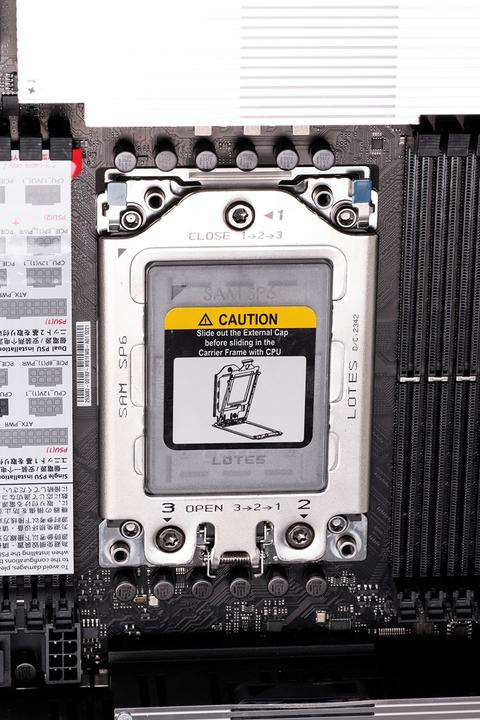

Socket | sTR5 |
Chipset | AMD WRX90 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Processor family | Ryzen Threadripper, Ryzen Threadripper Pro |
Memory form factor | R-DIMM |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 2000 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | ECC Registered |

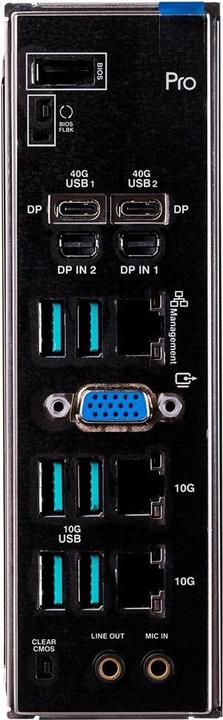

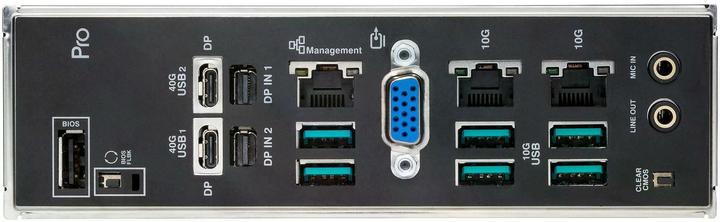

Video connections | Mini DisplayPort (2x), VGA (1x) |

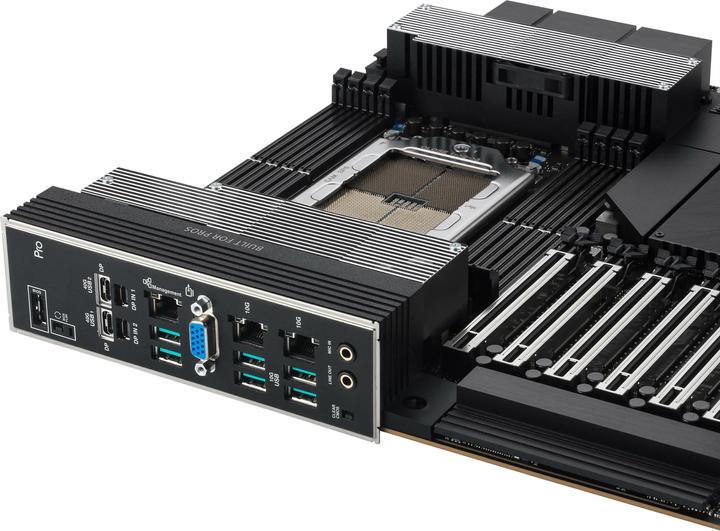

Network connections | RJ45 10 Gigabit Ethernet (2x), RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel, Realtek |
Ethernet controller | Intel |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC1220P |
Audio channel | 6.0 Channel |
Audio Connections | Headphone output (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x), USB 2.0 Header (2x) |

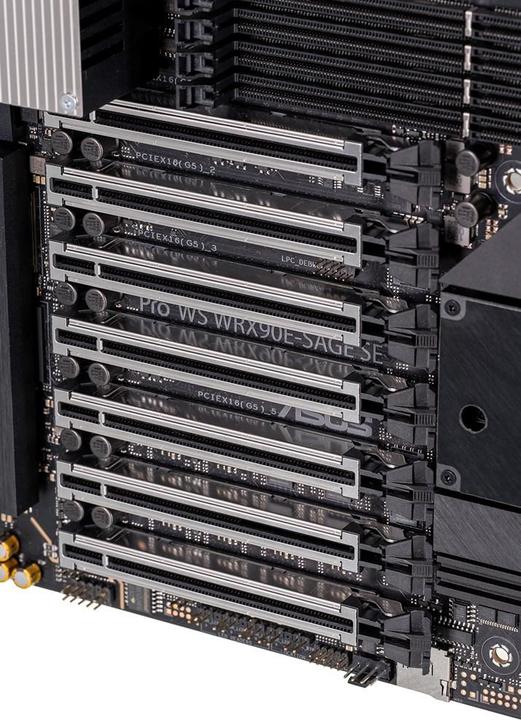

Expansion slot | PCI Express x16 (6x), PCI Express x8 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-C 4 (2x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 330 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 4740 g |
Length | 40 cm |
Width | 37 cm |
Height | 25 cm |
Weight | 4 kg |
