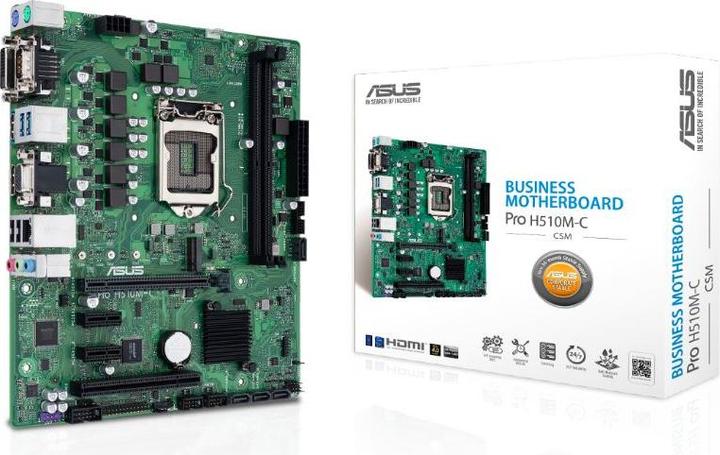

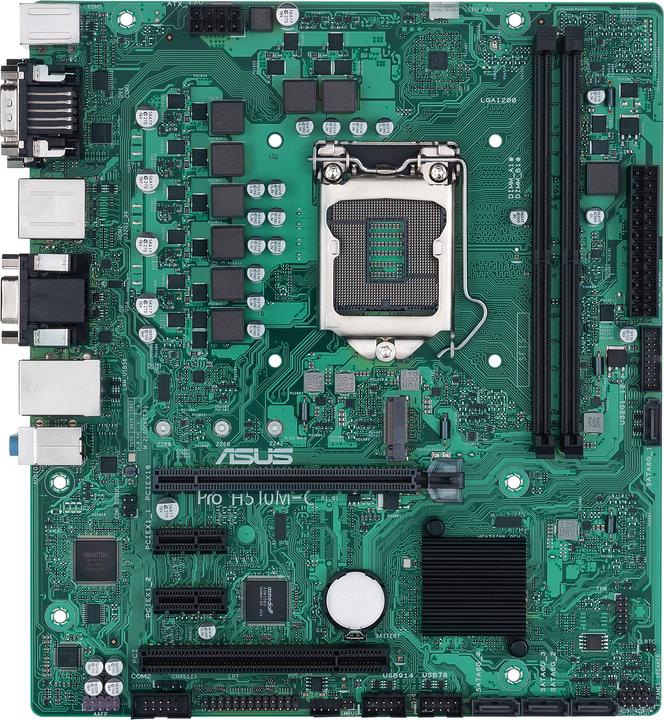

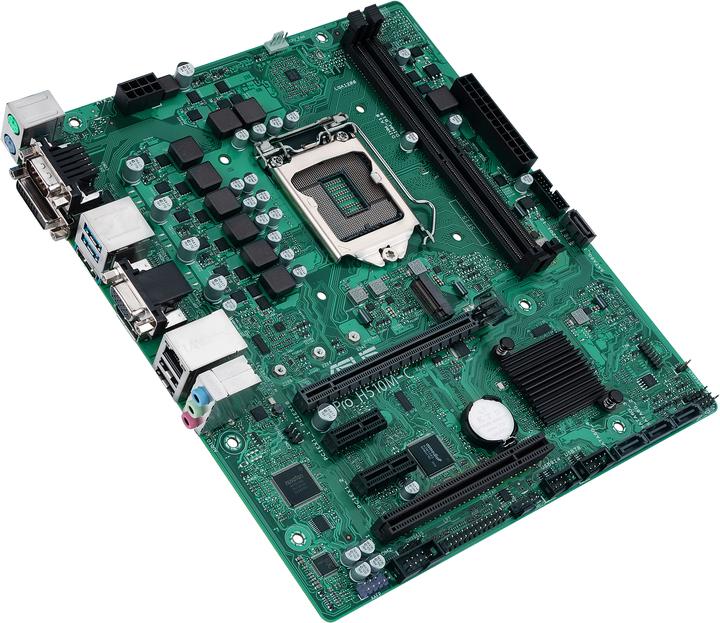

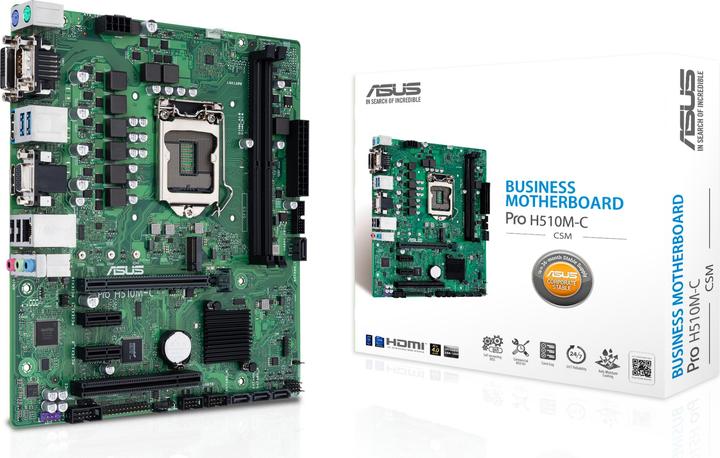

ASUS Pro H510M-C/CSM - Motherboard - micro ATX - LGA1200 socket - H510 - USB 3.2 Gen

LGA 1200, Intel H510, mATX
Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

Our latest ASUS Pro Business motherboards offer advanced features for smooth IT operations, including comprehensive system protection, high stability and reliability in 24/7 operation, as well as improved management software for easier customization. As the world's largest and most recognized motherboard brand, ASUS provides top-notch after-sales service and guaranteed long-term availability to maximize your investments throughout the entire product lifecycle. This makes ASUS Business motherboards a high-quality, total cost of ownership-optimized solution for your business computing needs.

ASUS Corporate Stable Model
The ASUS Corporate Stable Model (CSM) is a special program designed to equip businesses of all sizes with stable and reliable motherboards. We offer up to 36 months of product lifecycle support and a 6-month end-of-life notification, giving your company ample time to adapt.

Key specifications

Processor family
Celeron, Pentium
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Mainboard features
Front panel audio connector
Item number
15661206

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB17K0-M0EAYC
Release date
15.4.2021

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel H510
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Pentium

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
D-Sub (1x)
Video connection version
Display port 1.4

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I219-LM
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 4) (1x)

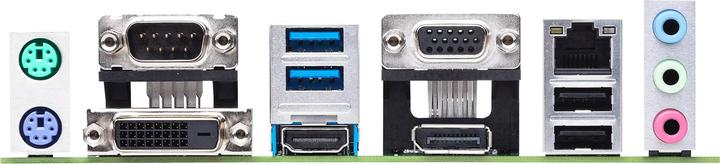

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
216 mm
Width
244 mm
Height
51 mm
Weight
634 g

Package dimensions

Length
27 cm
Width
28 cm
Height
6 cm
Weight
870 g
