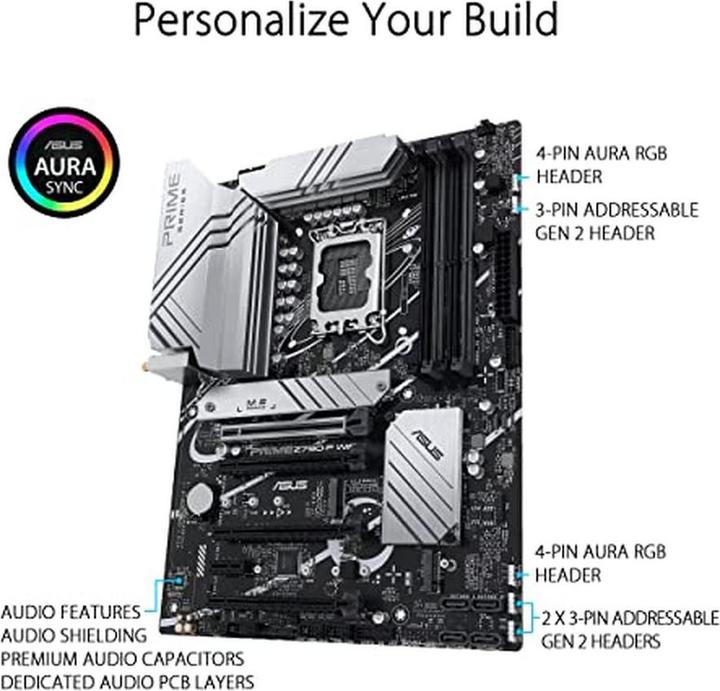

The ASUS Prime Z790-P WIFI is a powerful ATX motherboard specifically designed for Intel® Core™ processors of the 13th generation. With the LGA 1700 socket and the Intel Z790 chipset, it provides a robust platform for demanding applications and gaming. The motherboard supports DDR5 RAM and features three M.2 slots for lightning-fast SSDs, enabling high data transfer rates. The integrated Intel WIFI 6 technology ensures a fast and stable wireless connection, while the Realtek 2.5 Gb LAN port guarantees a reliable wired network connection. The comprehensive cooling and power supply options, including 14+1 DrMOS, ensure optimal performance and stability under load. With a variety of connectivity options, including USB 3.2 Gen 2x2 Type-C® and Thunderbolt™ support, the ASUS Prime Z790-P WIFI is ideal for PC DIY builders and tech enthusiasts who value flexibility and performance.
Processor family | Celeron, Core i5 13th Gen, Core i9 13th Gen, Pentium Gold |
Memory type | DDR5 RAM |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Number of memory modules (RAM) | 4x |
Item number | 38688296 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1CJ0-M1EAY0 |
Release date | 18.9.2023 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i5 13th Gen, Core i9 13th Gen, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x), USB-C 3.2 Gen 2x2 (1x) |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Beater, Sata Cables |
Length | 234 mm |
Width | 305 mm |
Height | 40 mm |
Weight | 1031 g |
Length | 32 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 150 g |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
... The upper graphics card slot communicates with the CPU via PCI Express 5.0, provided that graphics cards with this interface are available in the future. The three other PEG slots also mechanically accept x16 cards. However, they are all connected to the Z790 via four PCIe 4.0 lanes, which limits the throughput to around 8 GByte/s per direction...
