ASUS Prime Z690-P Wifi
LGA 1700, Intel Z690 (DDR5), ATXProduct details
The ASUS Prime series motherboards have been developed by experts to fully harness the potential of Intel's 12th generation processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the Prime Z690-P WIFI offers users and PC builders a range of performance tuning options through intuitive software and firmware features.

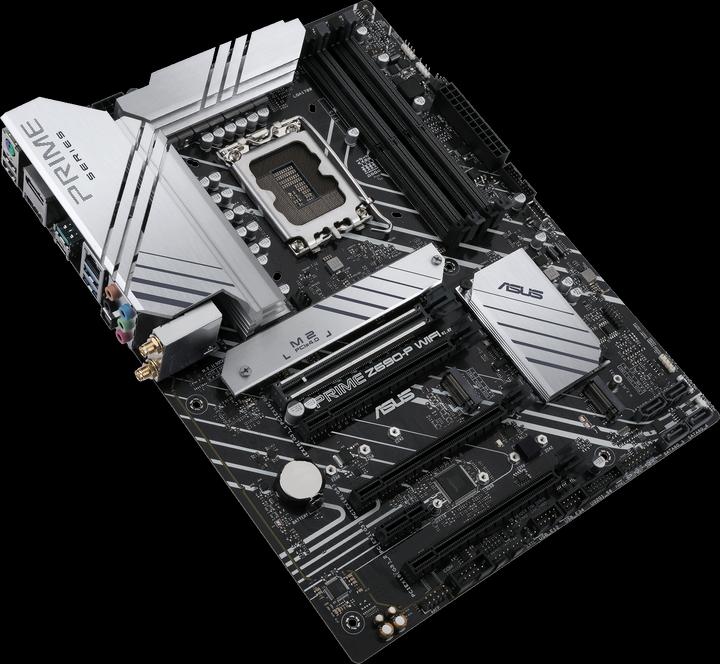

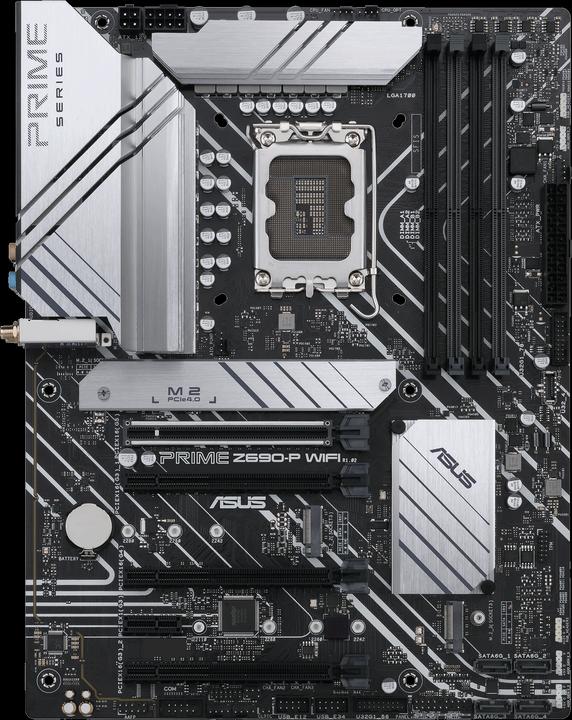

The ASUS Prime Z690-P WIFI features a sleek, futuristic exterior with a black and white finish, space shuttle-inspired design elements, a metallic nameplate, and a PCB cover. Extensive control options form the foundation of the ASUS Prime series. The Prime Z690 motherboard provides flexible tools that allow you to optimize every aspect of your system, enabling you to perfectly tailor performance to your workflow and maximize your productivity.
Processor family | Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth |
Mainboard features | Front panel audio connector |
Item number | 17252889 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1A90-M0EAY0 |
Release date | 4.11.2021 |
External links |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR5) |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5-5800 |
Max. RAM OC | 6000 MHz |
Supported memory speed | 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

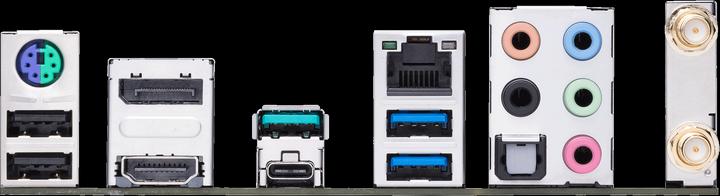

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x) |
Number of fan connector | 4 |
USB ports | USB-C |
Exact USB ports | USB-A 3.0 (2x), USB-A 3.1 Gen 1 (1x), USB-A 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

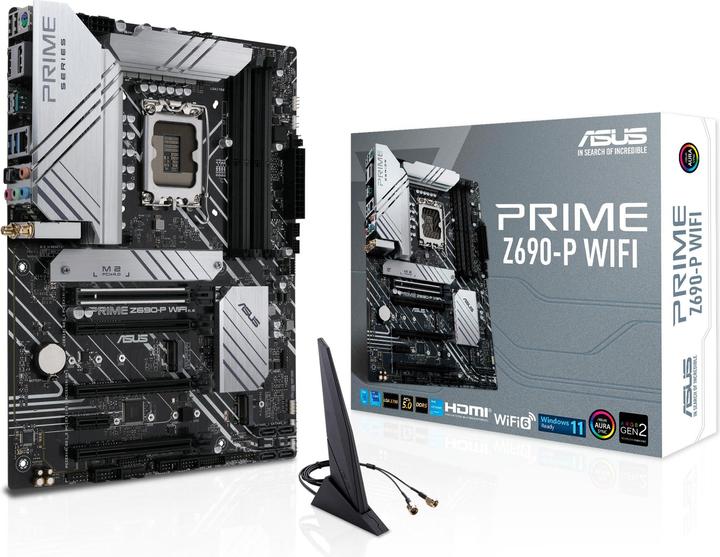

Scope of delivery | I/O backplane, 2 x M.2 screws, 1 x M.2 rubber pack |
Length | 305 mm |
Width | 345 mm |
Height | 275 mm |
Weight | 1706 g |
Length | 34 cm |
Width | 27.30 cm |
Height | 7 cm |
Weight | 1.69 kg |
