CHF 124.–

ASUS PRIME Z270M-PLUS (LGA 1151, Intel Z270, mATX)

Art-Nr 6067599
approx. 3 – 5 days 4 item(s) ready for shipment from external warehouse

Availability

Mail delivery

  • approx. 3 – 5 days
    4 item(s) ready for shipment from external warehouse

Collection

  • All locations: approx. 5 – 7 days
    Currently 4 piece(s) in stock at the supplier

If ordered immediately.
Information subject to change.

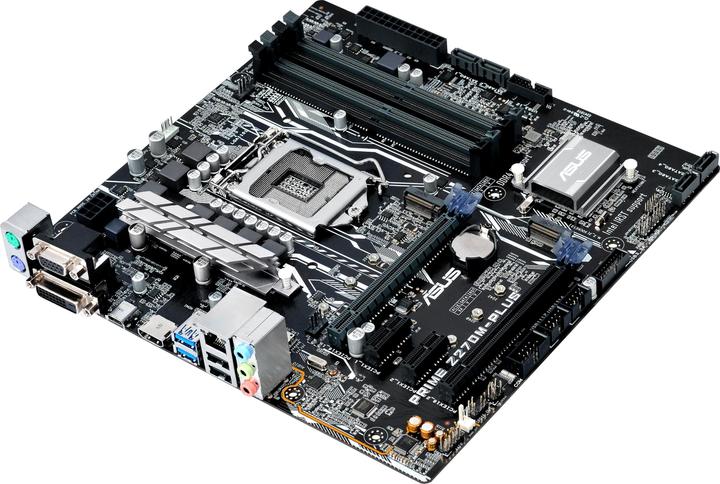

ASUS PRIME Z270M-PLUS (LGA 1151, Intel Z270, mATX) Actual product image
CHF 124.–

ASUS PRIME Z270M-PLUS (LGA 1151, Intel Z270, mATX)

Description

ASUS Mainboard PRIME Z270M-PLUS, Memory Type: zero, Memory Type: zero, PCI Slots: zero, PCI-Express Slots: zero, Integrated graphics: zero, Processor Socket: zero, RAID Level: zero, Chipset: zero.

Specifications

Key specifications

PCI express version (max.)3
Multi-GPU technologyNVIDIA Quad SLI, AMD Quad-GPU CrossFireX

General information

Manufacturer ASUS
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number6067599
Manufacturer no.90MB0S50-M0EAY0
Release date05.01.2017
External links Manufacturer's site (en)

Motherboard properties

Form factor
mATX
i

mATX

microATX, also known as µATX (sometimes transliterated as mATX or uATX on Internet forums) is a standard for motherboards that was introduced in December 1997. The maximum size of a microATX motherboard is 244 mm × 244 mm (9.6 in × 9.6 in), but some microATX boards can be as small as 171.45 mm × 171.45 mm (6.75 in × 6.75 in). The standard ATX size is 25% longer, at 305 mm × 244 mm (12 in × 9.6 in).

More information...

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

LGA 1151
Chipset
Intel Z270
BIOS Flashback
Yes
SuperSpeed USB 3.0
Yes
UEFI BIOS
Yes

Processor compatibility

Processor family
Core i5 7th Gen
,
Core i7 7th Gen
,
Core i3 7th Gen

Memory

Number of memory modules
4 x
Max. memory
64 GB
Memory chip
DDR4-2133
Max. RAM OC
3866 MHz
Memory type
DDR4-RAM
Channel architecture
RAM buffer
i

RAM buffer

In addition to bandwidth and capacity variants, modules can
1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation.
2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation.
3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.

unbuffered
Memory form factor
DIMM 288

Mass storage controller 1

Data storage controller
Intel onboard
i

Intel onboard

More information...

S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

4 x
M.2
2 x
RAID configuration
0
i

0

(block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance.

More information...

,
1
i

1

(mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency.

More information...

,
5
i

5

(block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure.

More information...

,
10
i

10

A RAID 10 group is a RAID 0 over several RAID 1, combining the characteristics of both RAIDs: security and increased read/write speed.
A RAID 10 network requires at least four hard disks.

More information...

Expansion slots

PCI express version (max.)
3
PCI Express x16
i

PCI Express x16

PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors.
During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output".

More information...

3 x
PCI Express x1
i

PCI Express x1

PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes.

More information...

4 x

Expansion slot speed

PCI-E 3.0 x16 (@x16)
2 x
PCI-E 2.0 x16 (@x4)
1 x

Graphics properties

i

Graphics properties

Beschreibt die Grafik Eigenschaften des Gerätes.

Multi-GPU PCI-E x16 Speed
x8/x8
,
x16/x0
Multi-GPU technology
NVIDIA Quad SLI
,
AMD Quad-GPU CrossFireX

Graphic connectors

DVI-D (Dual Link)
i

DVI-D (Dual Link)

Dual Link allows two digital signals to be transmitted simultaneously, enabling higher resolutions.
Analog signals (e.g. via a DVI-VGA adapter) cannot be transmitted on a DVI-D connection.

1 x
VGA
i

VGA

A VGA connector as it is commonly known (other names include RGB connector, D-sub 15, mini sub D15 and mini D15) is a three-row 15 pin DE-15. There are four versions: original and DDC2 pinouts, the far older and less flexible DE-9 connector, and a Mini-VGA used for laptops.
The common 15-pin VGA connector found on most video cards, computer monitors, and other devices, is almost universally called "HD-15". HD stands for "high-density", which distinguishes it from connectors having the same form factor but only 2 rows of pins. However, this connector is often incorrectly referred to as a DB-15 or HDB-15.[citation needed]
"VGA connectors" and their associated cabling are almost always used solely to carry analog component RGBHV (red - green - blue - horizontal sync - vertical sync) video signals along with DDC2 digital clock and data.
Where size is a constraint (such as laptops) a mini-VGA port can sometimes be found in place of the full-sized VGA connector.

1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x

Network

RJ45/LAN port
i

RJ45/LAN port

Network connection allows connection to an internal or external network.

More information...

1 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
Intel
i

Intel

Intel Corporation is an American multinational semiconductor chip maker corporation headquartered in Santa Clara, California.

More information...

Ethernet controller
I219V

Audio

Chip
Realtek S1220A
Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

8.1 Channel
Audio (3. 5 mm) connectors
1 x
Optical TOSLINK
1 x

Internal interfaces

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

2 x
USB 3.0 type A
2 x
Number of fan connector
3
Onboard power button
Yes
S/PDIF Header
1 x

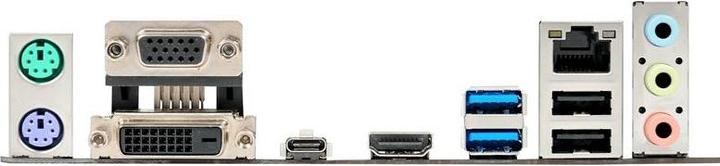

External interfaces

PS/2 Combo
1 x
USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

2 x
USB 3.0 type A
2 x
USB 3.1
1 x
USB Type-C
1 x

Power supply

i

Power supply

All power supply related details.

Power connectors
24-pin ATX
i

24-pin ATX

More information...

,
8-pin ATX 12V
i

8-pin ATX 12V

More information...

Delivery contents

S-ATA cable
3 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

More information...

Yes

Product dimensions

Length
305 mm
Width
244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Correction suggestion

Comment

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Returns and warranty

Dead on arrival (DOA) 7 Days Bring-in
Warranty 36 month Bring-in
30-day right of return
i

30-day right of return

Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified process, which shows the correct warranty period and takes into account any warranty extensions you have purchased. This ensures that your return or case can be processed as quickly and easily as possible.

Warranty services

Warranty extension

Warranty extension

Extension of the manufacturer's warranty.

to 4 years CHF 14.–

More information about warranty services

Availability

Mail delivery

Expected delivery time from external warehouse: approx. 3 – 5 days
4 item(s) ready for shipment from external warehouse

Collection

All locations

Expected delivery time: approx. 5 – 7 days
Currently 4 piece(s) in stock at the supplier

If ordered immediately. Information subject to change.

Questions about this product

The 3 most helpful customer questions

User Anonymous

Ihr schreibt, dass das Mainboard 6 Lüfterstecker hat (Ich gehe davon aus 1 CPU-Fan + 5 Case-Fans). Die ASUS-Website besagt aber, dass es 1 CPU-Fan + 2 Case-Fans hat... Habe ich da was übersehen?

30.01.2017
1 answer
User Quentin Aellen
Accepted answer

Hallo
Es sind nur 3 Stecker, wir haben die Angaben korrigert, danke für den Hinweis.

Grüsse

02.02.2017

What's your question to the Community?

The Community terms and conditions apply.
If you have any questions about your order, please contact the Customer service.

Product ratings

Overall rating

Avg. 4.5 of 5 stars


Your rating

To what extent does the product meet your expectations?


The 2 most useful ratings

User sraLton
PRIME Z270M-PLUS (LGA 1151, Intel Z270, mATX)

Standart Mainboard, für normale Rechenleistung gut geeignet.

Keine Probleme beim einbauen, ausser, dass ich etwas zu kämpfen hatte beim Einbau in das Gehäuse (Musste es stark in die Blende reindrücken).


+
-

31.08.2018
0 Comments
Report abuse

You must log in to report an abuse.

User claudioreist
PRIME Z270M-PLUS (LGA 1151, Intel Z270, mATX)

Ich würde das Motherboard für ein Barebone oder sonstiges mATX-Kompatibles Gehäuse jederzeit wieder kaufen!

Das Board tut was es soll. Preis/Leistung völlig ok und wenn es nicht gleich die Full-Professional-Overclock MB sein muss, reicht dieses MB völlig aus. Habe 32 GB 2400 MHZ Corsair (OC über das BIOS Menu, Standard 2133MHZ) und einen Intel i7 7700 3.6 GHZ verbaut. Alles Problemlos funktioniert und erkannt. BIOS-Update war nötig, ging aber mit EZ-Problemlos über die Bühne.more


+
+

09.08.2017
