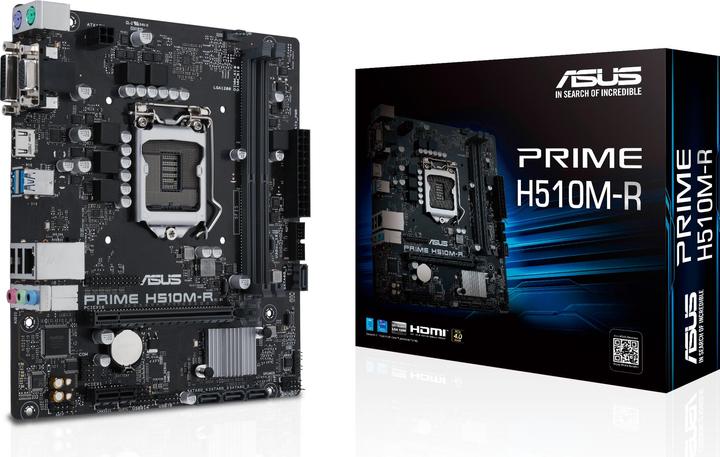

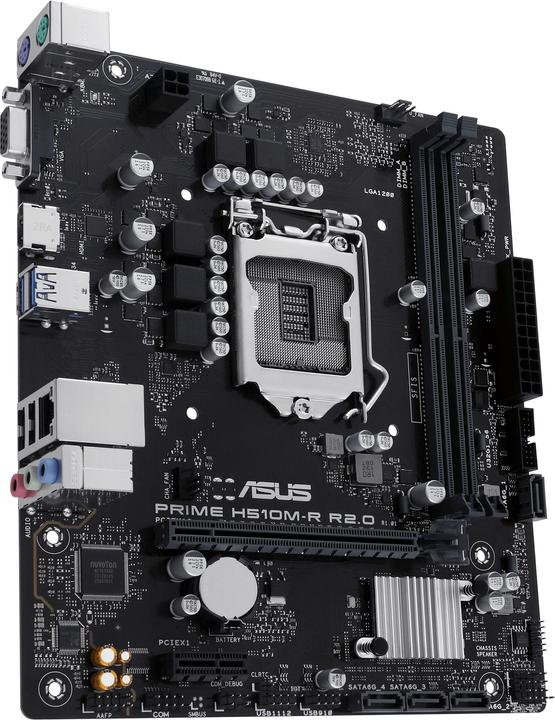

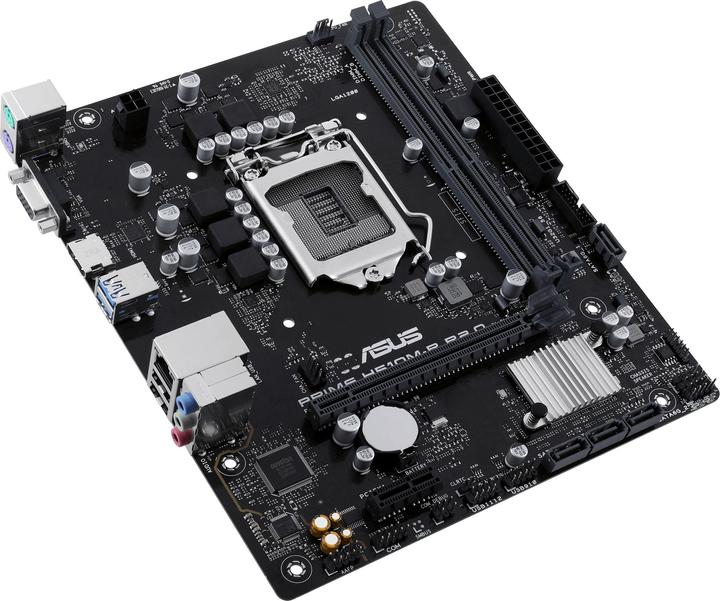

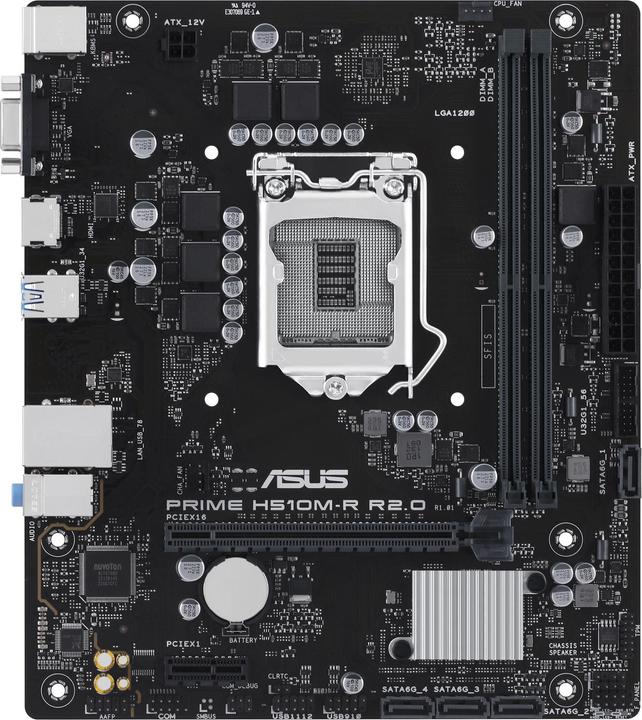

ASUS PRIME H510M-R R2.0-SI

LGA 1200, Intel H510, mATX
Ratings
BrandMore from ASUS
Delivered between Sat, 5.7. and Sat, 12.7.
Only 2 items in stock at supplier
free shipping

Product details

The ASUS Prime series motherboards have been developed by experts to unleash the full potential of Intel Core processors from the 10th and 11th generations. With a robust power supply, extensive cooling solutions, and intelligent tuning options, the Prime H510M-R offers a range of performance optimizations for regular users or PC builders, accessible through intuitive software or firmware features.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Mainboard features
Clear CMOS Button, Current voltage measuring points, Onboard processor, Reset button, RGB header
Item number
25450673

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1EX0-M0ECY0
Release date
28.4.2023

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel H510
Mainboard features
Clear CMOS Button, Current voltage measuring points, Onboard processor, Reset button, RGB header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR4 RAM
Max. RAM OC
3200 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

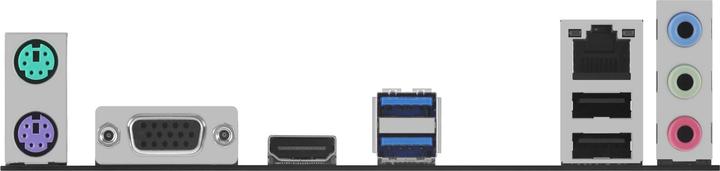

Video connections
D-Sub (1x), HDMI Type A
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Gigabit Ethernet
Max. port speed
1 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4
Number of fan connector
2

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
188 mm
Width
218 mm
Weight
710 g

Package dimensions

Length
25.10 cm
Width
22.90 cm
Height
5.90 cm
Weight
705 g

30-day right of return
36 Months Warranty (Bring-in)
