Product details

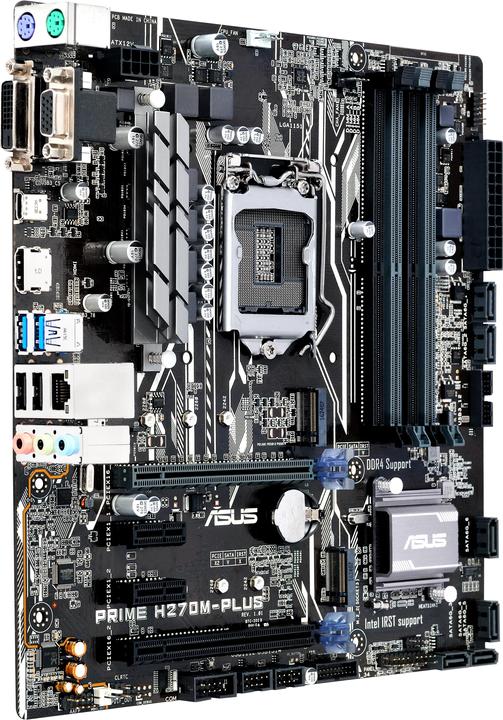

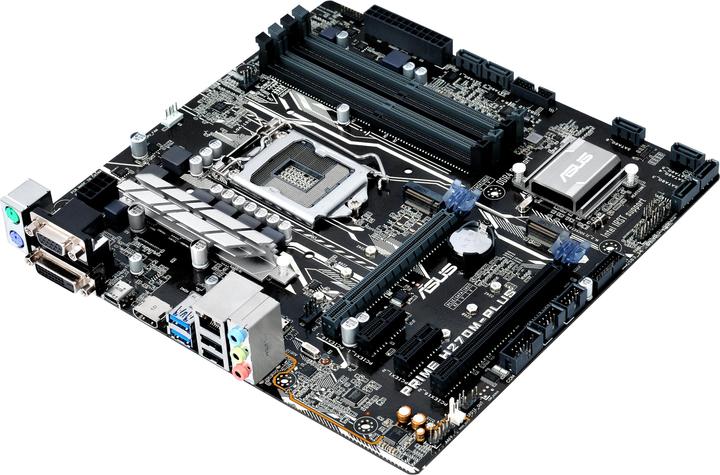

The ASUS PRIME H270M-PLUS is a powerful Micro-ATX motherboard designed for 7th generation Intel Core processors. With the LGA 1151 socket, it provides a solid foundation for high-performance systems. The Intel H270 chipset enables a variety of connectivity options and supports up to 64 GB of DDR4 RAM, ensuring high flexibility for various applications. The motherboard is equipped with multiple PCI Express slots, allowing for expansion with graphics cards or other expansion cards. Additionally, it offers integrated graphics options and a range of connectivity options for peripherals, including USB 3.0 and HDMI. Support for RAID levels 0, 1, 5, and 10 provides added data security and flexibility in storage management.
- Supports up to 64 GB of DDR4 RAM with speeds up to 2400 MHz
- Integrated graphics and HDMI port for easy video output
- Two PCI Express 3.0 x16 slots for powerful graphics cards
- RAID support for enhanced data security and performance
- 8.1-channel audio output for an immersive sound experience.
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Item number | 6067604 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0T00-M0EAY0 |
Release date | 5.1.2017 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel H270 |
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400 |
Supported memory speed | 2133 MHz, 2400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

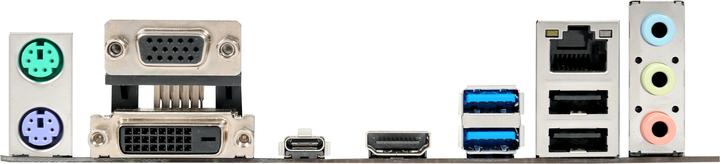

Video connections | HDMI (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD Quad-GPU CrossFireX, NVIDIA Quad SLI |
Ethernet controller brand | Intel |
Ethernet controller | I219V |
Max. port speed | 1 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 8.1 Channel |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (2x) |
Number of fan connector | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 239 mm |
Width | 244 mm |
Height | 2438 mm |
