ASUS PRIME B860M-A WIFI

LGA 1851, Intel B860, mATX
Ratings
BrandMore from ASUS
Delivered between Thu, 8.5. and Fri, 9.5.
6 items in stock at third-party supplier
Supplied by
ASUS DE

Product details

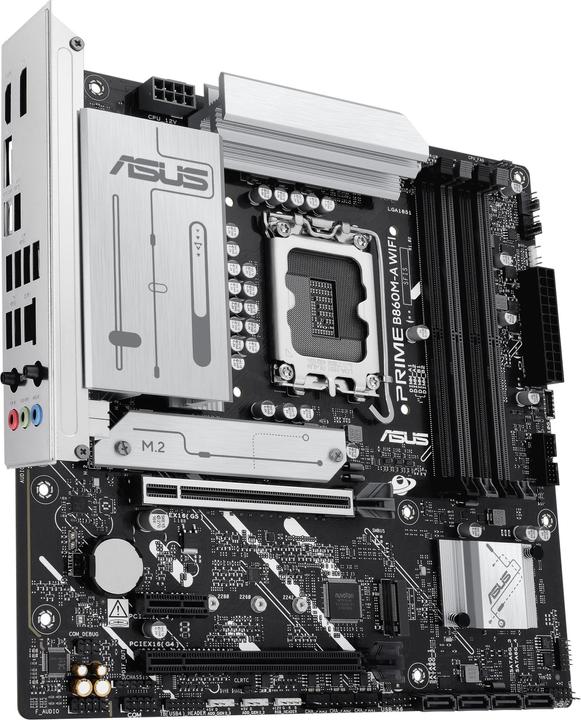

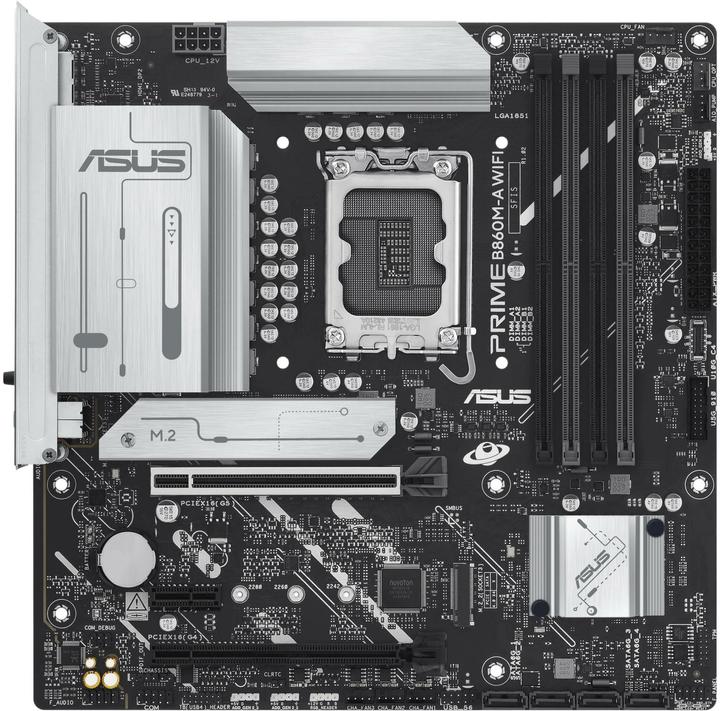

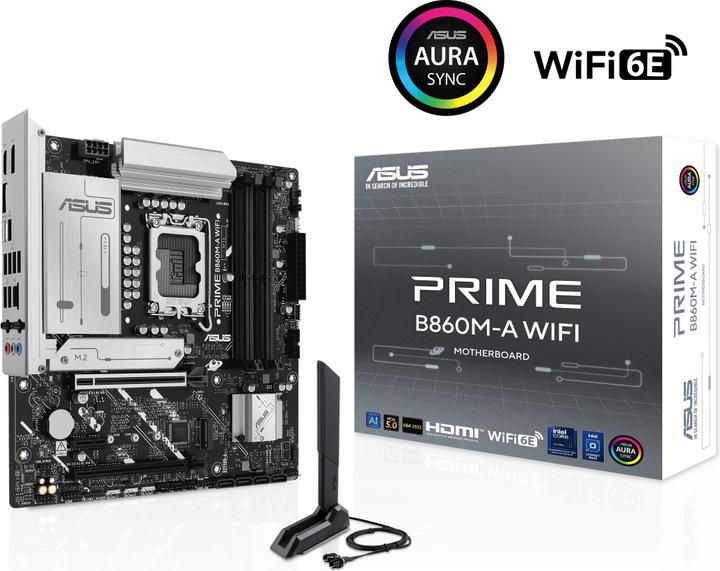

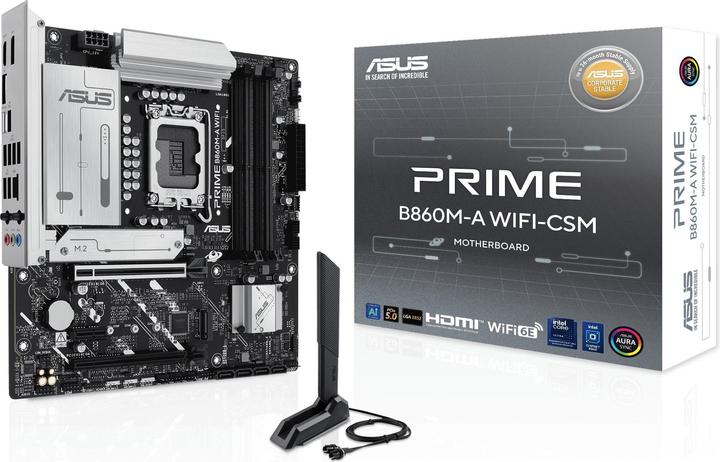

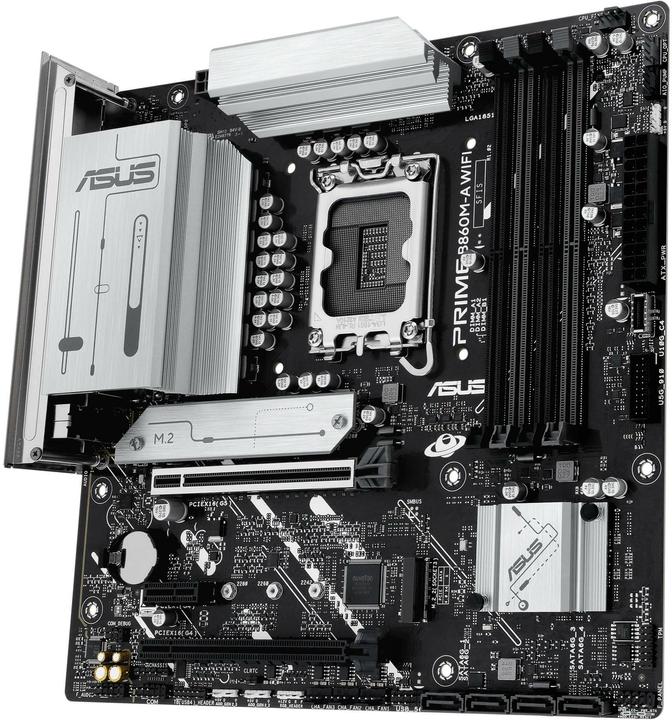

B860M-A WIFI

ASUS PRIME Series motherboards are expertly designed to realise the full potential of Intel Core Ultra (Series 2) processors. The PRIME B860M-A WIFI motherboard features a robust performance design, comprehensive cooling solutions and intelligent tuning options. It offers users and PC DIY builders a range of performance optimisations via intuitive software and firmware functions. Designed to be "Advanced AI PC-ready", it provides the necessary performance and connectivity for demanding AI applications.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x), USB 2.0 Header (4x)

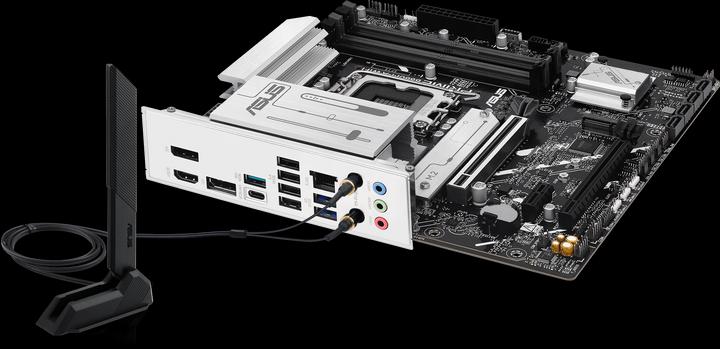

Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector, Onboard processor
Item number
53791717

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1JY0-M0EAY0
Release date
2.12.2024
Sales rank in Category Motherboards
389 of 977

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1851
Chipset
Intel B860
Mainboard features
Front panel audio connector, Onboard processor
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

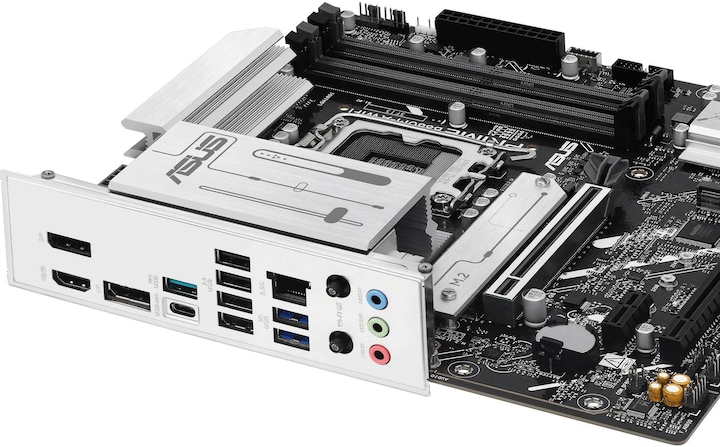

Video connections
DisplayPort (2x)

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x), USB 2.0 Header (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
5
Number of fan connector
3

Further connections

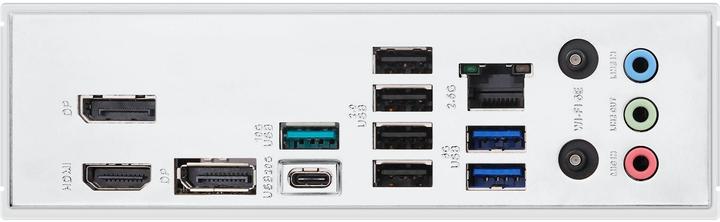

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
244 mm
Width
244 mm
Weight
1440 g
