ASUS Prime B760M-A-CSM

LGA 1700, Intel B760, mATX
2Ratings
BrandMore from ASUS
Delivered between Thu, 12.6. and Wed, 18.6.
More than 10 items in stock at third-party supplier
Supplied by
ASUS DE

Product details

The ASUS Prime series motherboards have been expertly designed to fully harness the potential of Intel® Core processors of the 13th generation. With a robust power supply design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A-CSM offers users and PC enthusiasts a range of performance optimizations through intuitive software and firmware features.

Key specifications

Processor family
Core i3, Core i5, Core i7, Core i9
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x), USB 2.0 Header (3x), USB 3.0 Header (1x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
32811039

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1EK0-M0EAYC
Release date
1.5.2023
Sales rank in Category Motherboards
207 of 959
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi

Processor

Processor family
Core i3, Core i5, Core i7, Core i9

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7200 MHz
Supported memory speed
4400 MHz, 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

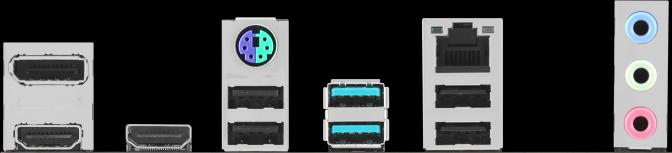

Video connections
DisplayPort (1x), HDMI (2x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Headphones, Jack 3.5mm Line In (1x)

Internal interfaces

Internal connection options
S-ATA III (4x), USB 2.0 Header (3x), USB 3.0 Header (1x)
Expansion slot
PCI Express x16 (3x)
PCI express version (max.)
4
Number of fan connector
2

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cables supplied: SATA

Product dimensions

Length
244 mm
Width
244 mm
Height
40 mm
Weight
1140 g

Package dimensions

Length
27.40 cm
Width
27.40 cm
Height
5.50 cm
Weight
1.08 kg
