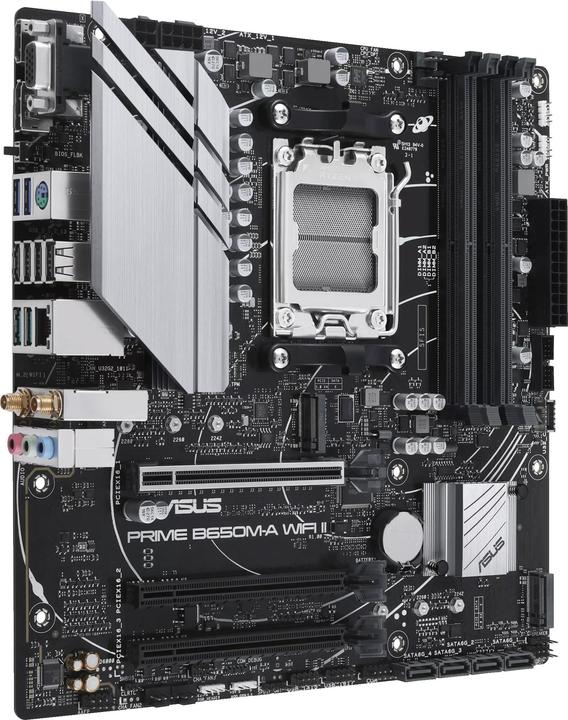

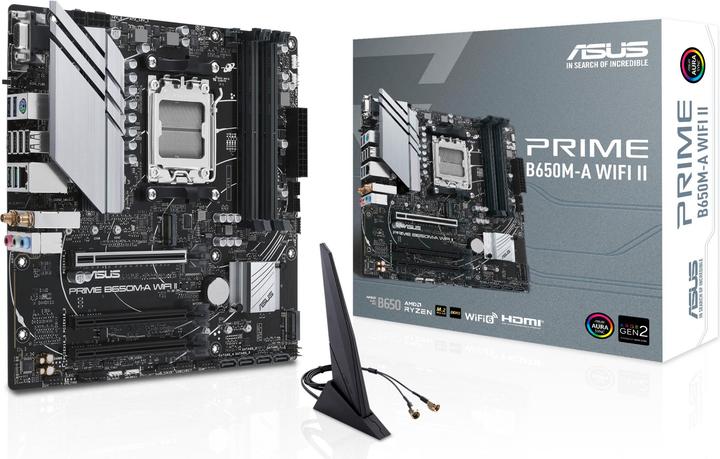

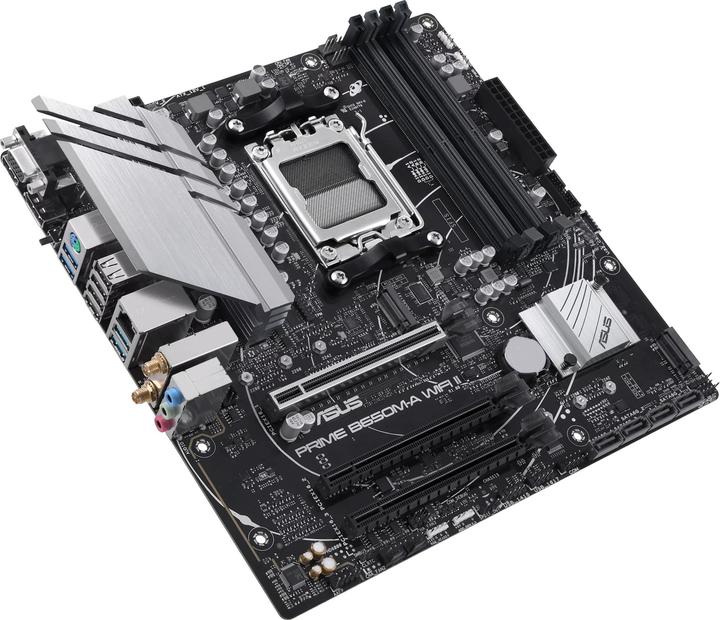

ASUS PRIME B650M-A WIFI II

AM5, AMD B650, mATX
4Ratings
BrandMore from ASUS
Delivered between Thu, 19.6. and Wed, 25.6.
More than 10 items in stock at third-party supplier
Supplied by
ASUS DE

Product details

ASUS Prime Series motherboards are expertly engineered to realise the full potential of AMD Ryzen 7000 processors. With a robust performance design, comprehensive cooling solutions and intelligent tuning options, the PRIME B650M-A WIFI II offers users and PC DIY builders a range of performance optimisations via intuitive software and firmware functions.

Key specifications

Processor family
Ryzen 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
23989183

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1EG0-M0EAY0
Release date
9.2.2023
Sales rank in Category Motherboards
161 of 952

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
6000 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

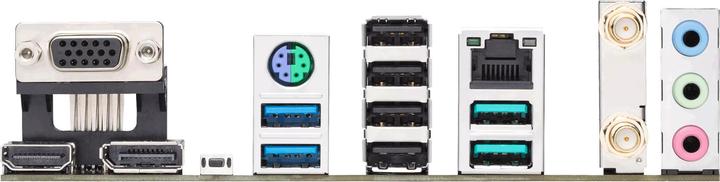

Video connections
DisplayPort (1x), HDMI (1x), VGA (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Coaxial S/PDIF (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Expansion slot
PCI Express x16 (1x), PCI Express x16 (3x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 1.0 (1x), USB-A 2.0 (2x)

Power supply

Power connectors
8-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

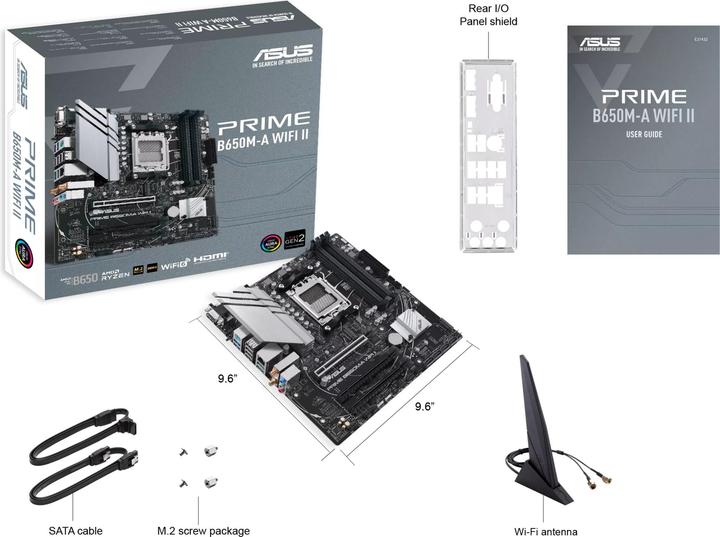

Scope of delivery

Scope of delivery
Cables supplied: SATA

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
Weight
50 g

Package dimensions

Length
28 cm
Width
28 cm
Height
7 cm
Weight
1.39 kg
