ASUS PN61-BB7002MT

Intel Core i7-8565U
Currently out of stock

Product details

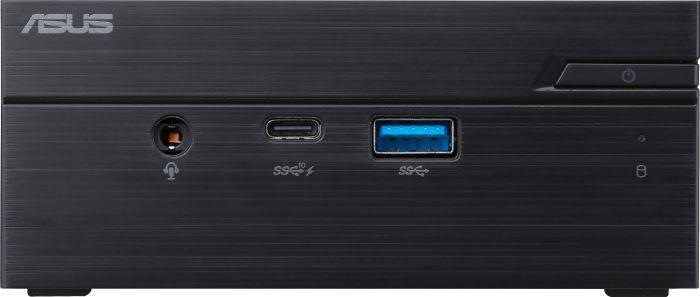

The Asus Mini PC PN61 is an ultra-compact and lightweight mini PC that is ideal for a wide range of applications, including business and home entertainment. The PN61 Mini PC fits seamlessly into any environment and delivers plenty of performance with an 8th generation Intel Core processor. Dual display support and comprehensive I/O interfaces, including a front USB 3.1 Gen2 Type C connector with Battery Charging 1.2 and a configurable interface with Thunderbolt 3, provide ultra-fast and versatile connectivity for docks, displays, and storage devices. For even greater flexibility, a slide-out chassis design allows for memory and RAM upgrades in just two easy steps.

The convenient slide-on housing design gives you direct access to the hard drive and memory slots. In two easy steps, you can upgrade an M.2 SSD or 2.5-inch HDD/SSD and expand memory. All you need is a screwdriver. The Asus Mini PC PN61 offers space for an Intel Optane memory or M.2 SSD, as well as a 2.5-inch HDD. This gives you the opportunity to create an individual memory solution with a balance of speed and capacity that is tailored exactly to your requirements.

The Asus Mini PC PN61 is driven by the 8th generation Intel Core processors, which achieve up to 18% higher performance than the processors of the previous platform for daily multitasking tasks, thus providing a fast and responsive computing experience in every situation. A modern design with slim lines and a stylish brushed finish makes the Asus PN61 Mini PC the perfect choice for home, office, and retail use. With a size of 115mm x 115mm x 49mm and a volume of 0.62 liters, it fits almost anywhere. It can even be attached to the back of a monitor with a VESA mount to create a space-saving all-in-one solution.

Key specifications

Number of processor cores
4 -Core
Graphics card model
UHD Graphics 620
Internal connection options
PCI Express x2PCI Express x4 (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
13270795

General information

Manufacturer
ASUS
Category
Barebones
Manufacturer no.
90MR0021-M00020
Release date
26.5.2020
External links

Processor

Processor type
Intel Core i7-8565U
Clock frequency
1.80 GHz
Number of processors
1 x
Number of processor cores
4 -Core
Number of threads
8
Socket
FCBGA1528
Max. turbo clock rate
4.60 GHz
Max. TDP
25 W
Processor properties
Intel Virtualisation Technology (VT-x)

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Max. memory slots
2
Max. RAM
32 GB

Graphics card properties

Graphics card model
UHD Graphics 620
Max. connected monitors
2 x

Internal connections

Internal connection options
PCI Express x2PCI Express x4 (1x)

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
USB
Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 4 / 802.11nWi-Fi 5 / 802.11ac
Bluetooth version
5.0

Video connections

Video connections
HDMI (1x)

Power supply properties

Power
90 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
AC power adapter

Product dimensions

Weight
700 g
Width
115 mm
Length
115 mm
Height
49 mm

Package dimensions

Length
29 cm
Width
17.50 cm
Height
6.50 cm
Weight
1.40 kg
