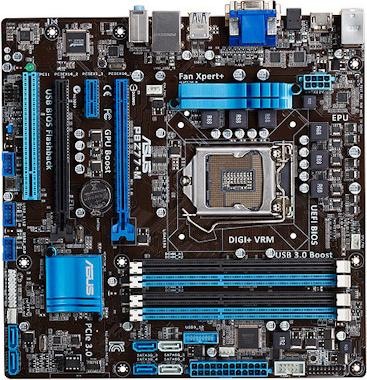

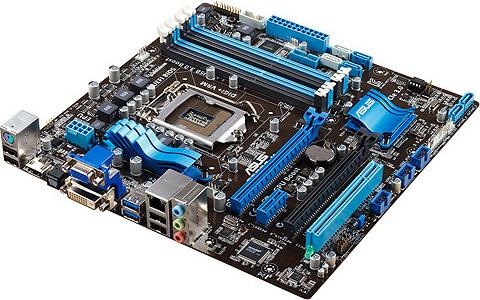

ASUS P8z77-M

LGA 1155, Intel Z77, mATX
2Ratings
BrandMore from ASUS
Currently out of stock

Product details

The P8Z77-M motherboard is a powerful and versatile platform suitable for a wide range of applications. It supports Intel Core i3, i5, and i7 processors with the LGA 1155 socket and is equipped with the Intel Z77 chipset. With a maximum RAM capacity of 32 GB and support for DDR3 RAM up to 2133 MHz, it provides ample memory for demanding applications and multitasking. The Micro ATX format allows for a compact design, making it ideal for smaller cases. Advanced features include PCIe 3.0 support, LucidLogix Virtu MVP for enhanced graphics performance, and a variety of connectivity options, including USB 3.1 and HDMI. The P8Z77-M is therefore an excellent choice for users seeking a reliable and powerful foundation for their systems.

  • Supports multi-GPU technology with LucidLogix Virtu MVP
  • Offers USB BIOS Flashback for easy BIOS updates
  • Integrated 7.1-channel audio output for an immersive sound experience
  • EPU and DIGI+ VRM for improved energy efficiency and stability
  • Network connection with Gigabit Ethernet for high data transfer rates.

Key specifications

Processor family
Core i3, Core i5, Core i7
Memory type
DDR3-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (2x)
Mainboard features
Front panel audio connector
Item number
304185

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90-MIBI10-G0EAY0GZ
Release date
5.4.2012
External links
Specifications (en)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1155
Chipset
Intel Z77
Mainboard features
Front panel audio connector
BIOS type
EFI AMI

Processor

Processor family
Core i3, Core i5, Core i7

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
32 GB
Memory chip
DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800)
Supported memory speed
1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz
Memory type
DDR3-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 1.4
Multi-GPU technology
AMD CrossfireX, LucidLogix Virtu MVP

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111F
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (2x)
Expansion slot
PCI Express x16 (1x)
Number of fan connector
3

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
User manual

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
