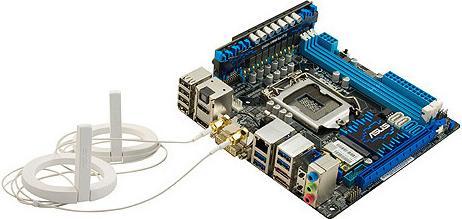

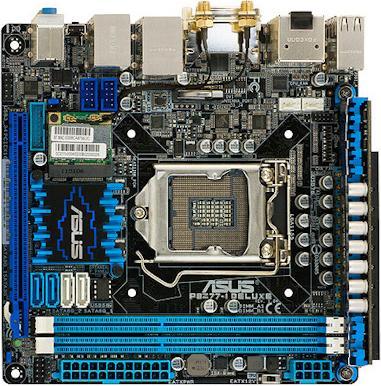

ASUS P8Z77-I Deluxe
LGA 1155, Intel Z77, Mini-ITXProduct details
The P8Z77-I Deluxe is a Mini-ITX motherboard designed for a variety of Intel Core i-series processors, including the 2nd and 3rd generations. It provides a robust platform for high-performance computing applications and is ideal for compact systems. With support for DDR3 RAM and a maximum memory capacity of 16 GB, it enables efficient data processing. The integrated support for PCIe 3.0 ensures high transfer rates and improved graphics performance. The motherboard is equipped with various features that enhance usability and performance, including LucidLogix Virtu MVP for enhanced graphics performance and ASUS Crystal Sound for high-quality audio output. Additionally, it offers modern connectivity options such as HDMI and Gigabit Ethernet to ensure seamless connections to external devices.
- Supports Intel Z77 chipset for improved performance
- Integrated Wi-Fi functionality for wireless connectivity
- Energy management through TPU and EPU for optimized efficiency
- USB BIOS Flashback for easy BIOS updates
- Realtek ALC898 chip for high-quality audio output.
Processor family | Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (2x) |
Wireless transmission | Bluetooth |
Mainboard features | Clear CMOS Button |
Item number | 304184 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90-MIBI70-G0EAY0DZ |
Release date | 5.4.2012 |
Form factor | Mini-ITX |
Socket | LGA 1155 |
Chipset | Intel Z77 |
Mainboard features | Clear CMOS Button |
BIOS type | EFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
Processor family | Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 16 GB |
Memory chip | DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Max. RAM OC | 2400 MHz |
Supported memory speed | 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |

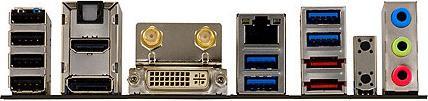

Video connections | HDMI (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | LucidLogix Virtu MVP |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel 82579V |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC898 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (2x) |
Expansion slot | PCI Express x16 (1x) |
Number of fan connector | 2 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 17 mm |
Width | 17 mm |
Height | 170 mm |
