Product details

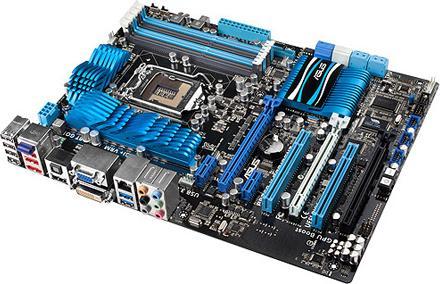

The P8Z68-V Pro/Gen3 motherboard is a powerful and versatile platform optimized for a variety of Intel Core series processors. It supports both 2nd and 3rd generation Intel Core processors and offers a wide range of features suitable for demanding applications and gaming. With the Intel Z68 chipset, it enables efficient use of PCIe 3.0, promising improved data transfer rates and performance. The UEFI BIOS provides a user-friendly interface and easy customization options. Additionally, the motherboard supports Lucid Logix Virtu, which optimizes graphics performance, as well as DIGI+ VRM for precise voltage regulation. The ability to integrate up to 32 GB of DDR3 RAM makes it an ideal choice for users who require high performance and multitasking capabilities.
- Support for PCIe 3.0 for enhanced data transfer rates
- Compatible with 2nd and 3rd generation Intel Core processors
- Integrated support for NVIDIA SLI and Quad-SLI
- Maximum RAM capacity of 32 GB with overclocking up to 2200 MHz
- 7.1 channel audio output for an immersive sound experience.
Processor family | Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Item number | 267557 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90-MIBFIA-G0EAY00Z |
Release date | 27.10.2011 |
Form factor | ATX |
Socket | LGA 1155 |
Chipset | Intel Z68 |
Processor family | Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Max. RAM OC | 2200 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |
Multi-GPU technology | AMD CrossfireX, AMD Quad-GPU CrossFireX, LucidLogix Virtu MVP, NVIDIA Quad SLI, NVIDIA SLI |
Ethernet controller brand | Intel |
Ethernet controller | Intel 82579 |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 30.50 mm |
Width | 24.40 mm |
