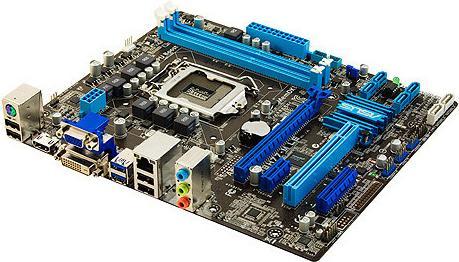

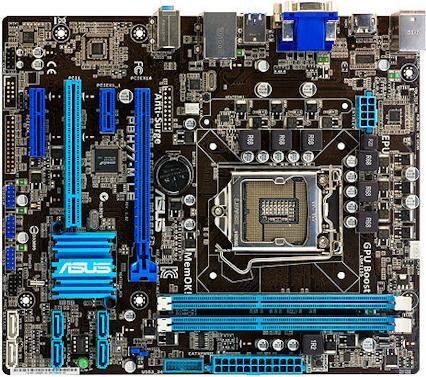

ASUS P8h77-M Le

LGA 1155, Intel H77, mATX
1Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

The P8H77-M LE is a Micro ATX motherboard designed for a variety of Intel processors from the 2nd and 3rd generations. It supports a wide range of processors, including Core i3, Core i5, Core i7, as well as Pentium and Celeron. With an Intel H77 chipset, it provides a solid foundation for high-performance systems. The motherboard is equipped with various technologies that enhance performance and efficiency, including Intel Smart Response Technology and LucidLogix Virtu MVP. It allows for a maximum RAM capacity of 16 GB and supports DDR3 RAM with speeds of up to 2200 MHz. The integrated audio and video ports, including HDMI, ensure a comprehensive multimedia experience. Additionally, the P8H77-M LE offers a variety of expansion options and connectivity features to meet the demands of modern applications.

  • Supports Intel Smart Connect and Rapid Start technologies
  • Maximum RAM capacity of 16 GB with support for DDR3 RAM
  • Integrated 7.1 channel audio output with Realtek ALC887 chip
  • PCIe 3.0 support for improved graphics card performance
  • Expansion options via PCI Express x1 slot.

Key specifications

Processor family
Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium
Memory type
DDR3-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (2x)
Mainboard features
Front panel audio connector
Item number
304182

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90-MIBI80-G0EAY0DZ
Release date
5.4.2012

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1155
Chipset
Intel H77
Mainboard features
Front panel audio connector
BIOS type
Ami

Processor

Processor family
Celeron, Core i3 2nd Gen, Core i3 3rd Gen, Core i5 2nd Gen, Core i5 3rd Gen, Core i7 2nd Gen, Core i7 3rd Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
16 GB
Memory chip
DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800)
Max. RAM OC
2200 MHz
Supported memory speed
1600 MHz, 1866 MHz, 2133 MHz
Memory type
DDR3-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Multi-GPU technology
LucidLogix Virtu MVP

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111F
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (2x)
Expansion slot
PCI Express x1 (1x)
Number of fan connector
2

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
208 mm
Width
244 mm
Height
208 mm
