ASUS NUC BB UN65U-BM009M, i5-7200U, without OS

Intel Core i5-7200U
2Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

The ASUS VivoMini UN65U is a compact barebone PC that combines the performance of a full-fledged desktop system in a convenient format. Equipped with a 7th generation Intel® Core i5-7200U processor, it offers impressive performance for office applications and multimedia. The dual storage design allows for flexible configuration, while the M.2 SSD ensures quick access to data. The UN65U operates quietly, thanks to an optimized fan design that minimizes noise levels. This barebone version is ideal for users who want to customize their hardware, whether by choosing the operating system or storage options. Its elegant design, which has won the Good Design Award, also makes it an attractive addition to any office or as a digital information system.

  • Intel® Core i5-7200U processor with 2 cores and 4 threads

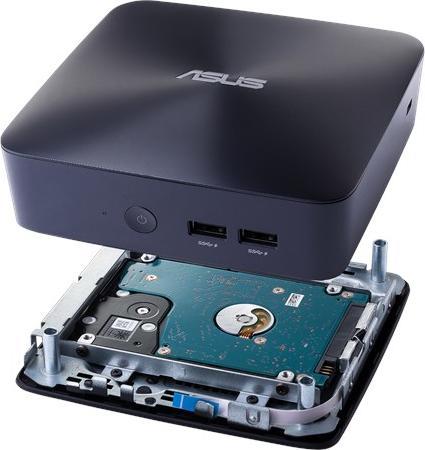

  • Dual storage design with M.2 SSD for fast data access
  • Optimized fan design for quiet operation
  • Flexible upgrade design for easy hardware customization
  • Award-winning design with Good Design Award.

Key specifications

Number of processor cores
2 -Core
Graphics card model
HD Graphics 620
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
DisplayPort (1x), HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
6341697

General information

Manufacturer
ASUS
Category
Barebones
Manufacturer no.
90MS00W1-M00090
Release date
4.6.2017
External links
Manufacturer's site (de)

Processor

Processor type
Intel Core i5-7200U
Clock frequency
2.50 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
4
Socket
BGA 1356
Max. turbo clock rate
3.10 GHz
Max. TDP
15 W

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Max. memory slots
32
Max. RAM
32 GB

Graphics card properties

Graphics card model
HD Graphics 620

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)

Network

Network connections
RJ45 (1x)

Wireless transmission

Connectivity
WLAN
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac

Video connections

Video connections
DisplayPort (1x), HDMI (1x)

Audio connections

Audio outputs
Headphones Out (1x)

Card reader properties

Memory card type
MMC, SDHC, SDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
700 g
Width
131 mm
Length
131 mm
Height
52 mm
