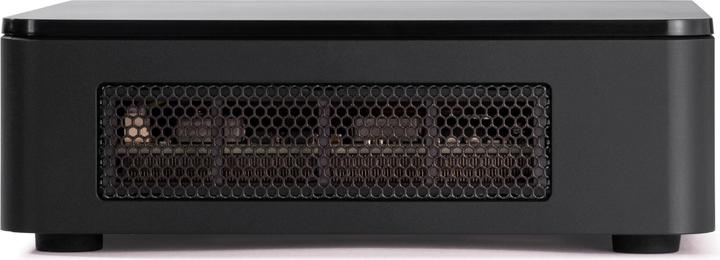

The ASUS NUC 12 Pro Barebone is a powerful barebone system with WiFi 6E and a 12th generation Intel Core processor. It offers high computing power and enables fast data transfers thanks to the latest WiFi technology. The compact design of the barebone makes it ideal for space-saving installations or use as a media centre. Power cable not included.
Number of processor cores | 8 -Core |
Graphics card model | Iris Xe Graphics |
Internal connection options | M.2 (1x) |
Network connections | RJ45 (1x) |
Video connections | DisplayPort (1x), DisplayPort (2x), HDMI (2x) |
Memory type | DDR4-RAM |
USB ports | Thunderbolt 4, USB-A |
Item number | 42891181 |
Manufacturer | ASUS |
Category | Barebones |
Manufacturer no. | 90AR00D1-M00010 |
Release date | 16.4.2024 |
May include power adapter | Yes |
Design | Small Form |
Processor type | Intel Core i3-1220P |
Clock frequency | 3.30 GHz |
Number of processors | 1 x |
Number of processor cores | 8 -Core |
Socket | BGA 1744 |
Max. turbo clock rate | 4.40 GHz |
Max. TDP | 35 W |
Processor properties | 64-bit architecture, Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 2 x |
Memory chip compatibility | DDR4-3200 |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Memory voltage | 1.20 V |
Graphics card model | Iris Xe Graphics |
Hardware application range | Multimedia |
Max. connected monitors | 4 x |
Internal connection options | M.2 (1x) |
Data storage controller | Intel I225-V |
USB ports | Thunderbolt 4, USB-A |
Exact USB ports | Thunderbolt 4 (2x), USB-A 2.0 (1x), USB-A 3.1 Gen 2 (3x) |
Network connections | RJ45 (1x) |
Max. port speed | 2500 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Wi-fi frequency | 6 GHz |
Bluetooth version | 5.2 |

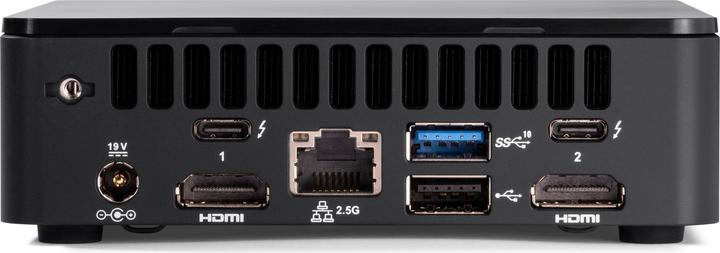

Video connections | DisplayPort (1x), DisplayPort (2x), HDMI (2x) |
Audio outputs | 3.5mm headphones |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | VESA Mount Kit |
Weight | 1128 g |
Width | 117 mm |
Length | 112 mm |
Height | 37 mm |
Length | 20.90 cm |
Width | 17.80 cm |
Height | 11.50 cm |
Weight | 1.36 kg |
