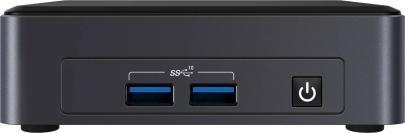

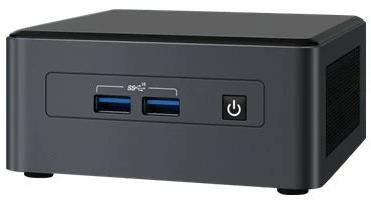

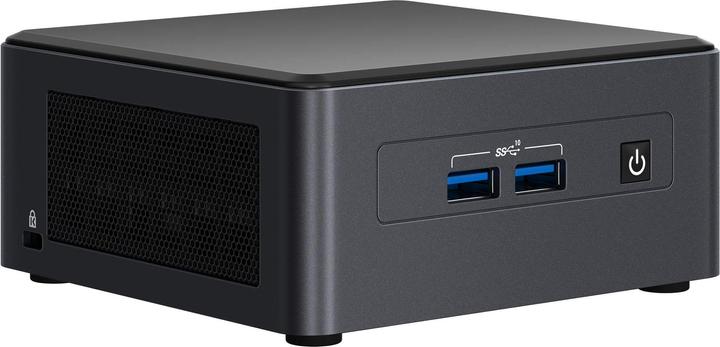

ASUS NUC 11 Pro Kit

Intel Core i5-1135G7
Ratings
BrandMore from ASUS
Currently out of stock

Product details

Intel NUC 11 Pro Mini PCs, kits and boards are compact systems that drive the future of your business. More choices than ever before: from fully-built Mini PCs to customisable kits equipped with the full range of 11th generation Intel Core processors. All models are designed to deliver the performance businesses need for edge computing, office productivity and collaboration.

Boundary-pushing performance is available with the 11th generation Intel Core i5 and i7 processors with Intel Iris Xe graphics. Selected SKUs also feature Intel vPro technology for remote manageability, hardware-enforced security features and platform stability to help organisations reduce IT costs and increase availability.

Key specifications

Number of processor cores
4 -Core
Graphics card model
Iris Xe Graphics
Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (1x)
Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Video connections
HDMI (2x)
Memory type
DDR4-RAM
USB ports
Thunderbolt 3, Thunderbolt 4, USB-A, USB-C
Item number
15572719

General information

Manufacturer
ASUS
Category
Barebones
Manufacturer no.
BNUC11TNHI50000
Release date
7.10.2023
External links
Manufacturer's site (de)

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i5-1135G7
Clock frequency
2.40 GHz
Number of processors
1 x
Number of processor cores
4 -Core
Number of threads
8
Socket
BGA 1449
Max. turbo clock rate
4.20 GHz
Max. TDP
28 W

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory Slots available
2
Max. memory slots
2
Max. RAM
64 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Iris Xe Graphics
Max. connected monitors
4 x

Internal connections

Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (1x)
"Number of 5.25"" drive slots"
1 x
Number of 3.5" drive slots (external)
2 x
"Number of 2.5"" drive slots"
3 x

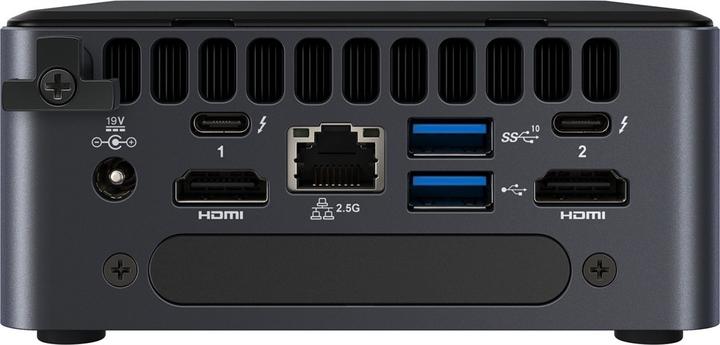

External connections

USB ports
Thunderbolt 3, Thunderbolt 4, USB-A, USB-C
Exact USB ports
Thunderbolt 3 (1x), Thunderbolt 4 (1x), USB-A 2.0 (1x), USB-A 3.2 Gen 1 (3x)

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Max. port speed
2500 Mbit/s

Wireless transmission

Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax
Bluetooth version
5.1

Video connections

Video connections
HDMI (2x)

Power supply properties

Power
120 W

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Weight
1300 g
Width
117 mm
Length
112 mm
Height
54 mm

Package dimensions

Length
21 cm
Width
14 cm
Height
11 cm
Weight
200 g
