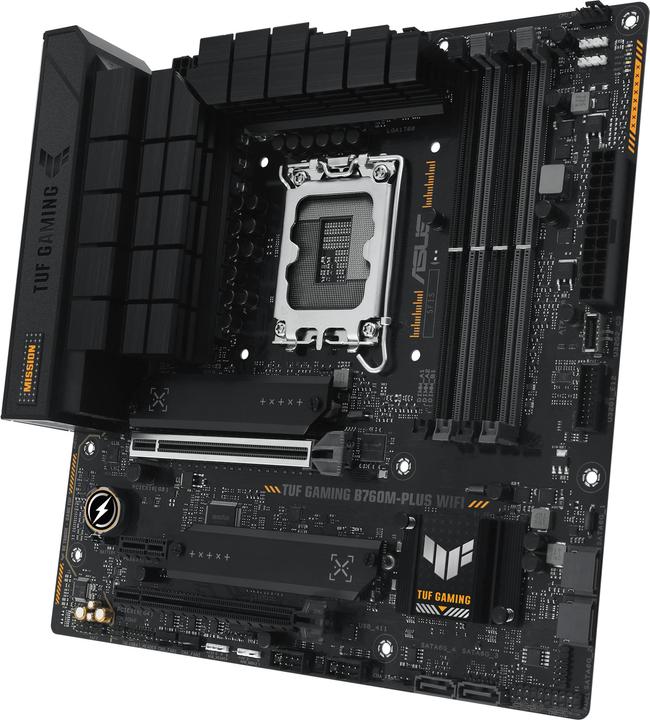

ASUS MB TUF GAMING B760M-PLUS (Intel,1700,DDR5,mATX)

LGA 1700, Intel B760, mATX
5Ratings
BrandMore from ASUS
Delivered between Tue, 5.5. and Fri, 15.5.
Only 2 pieces in stock at supplier
free shipping

Product details

The ASUS TUF GAMING B760M-PLUS motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket from the 12th and 13th generations. It features four DDR5 DIMM slots operating in dual-channel mode for up to 192 GB of RAM. Additional features of the TUF GAMING B760M-PLUS include a PCIe 5.0 x16 slot, a PCIe 4.0 x4 slot, and a PCIe 4.0 x1 slot. Furthermore, the TUF GAMING B760M-PLUS offers 8-channel audio, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 slots, and a variety of USB interfaces.

Key specifications

Mainboard features
Front panel audio connector, RGB header, S/PDIF header
Processor family
Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen
Number of memory modules (RAM)
4x
Memory type
DDR5 RAM
Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA III (4x)

General information

Item number
25133934
Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1ES0-M0EAY0
Release date
2.3.2023

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Front panel audio connector, RGB header, S/PDIF header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7200 MHz
Supported memory speed
5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm Line In (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x)
PCI express version (max.)
5
Number of fan connector
3

Further connections

USB ports
USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
551.01 kg
Climate contribution
CHF 7.70

Scope of delivery

Scope of delivery
SATA cable

Product dimensions

Length
244 mm
Width
244 mm
Height
70 mm
Weight
780 g

Package dimensions

Length
28.40 cm
Width
27.80 cm
Height
7.50 cm
Weight
1.46 kg
