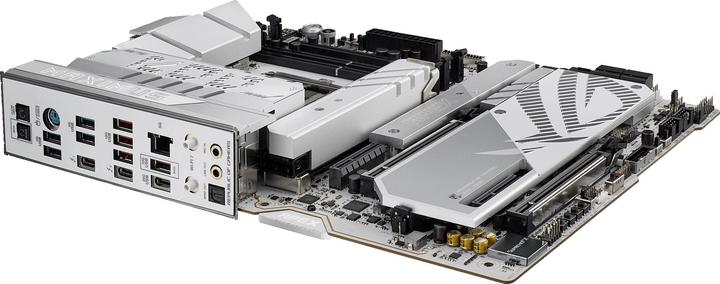

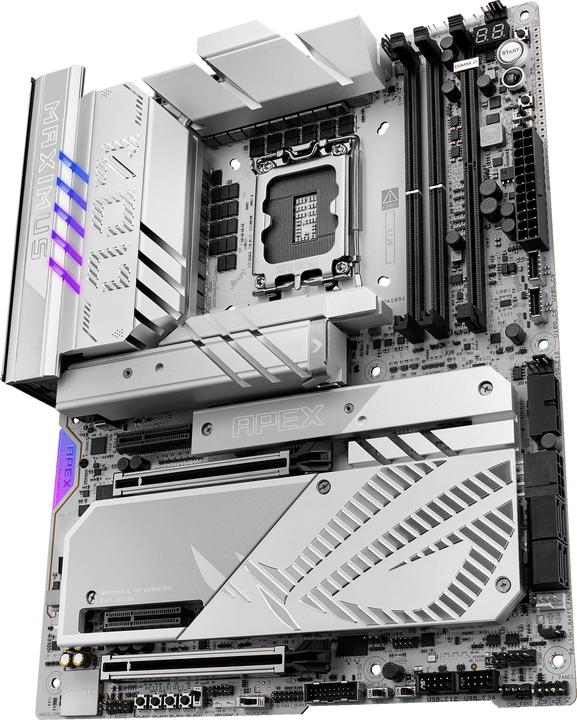

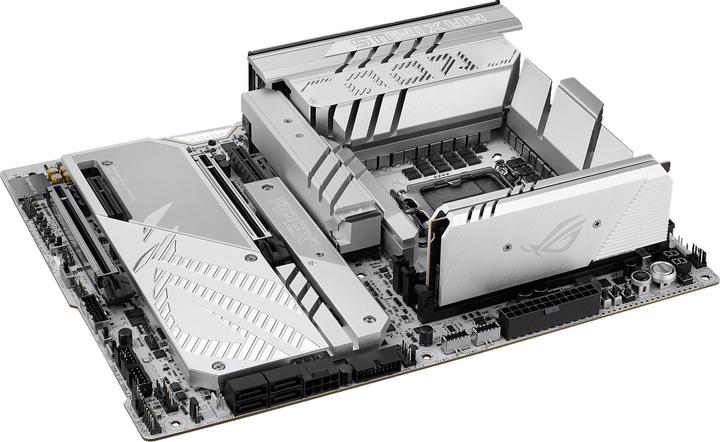

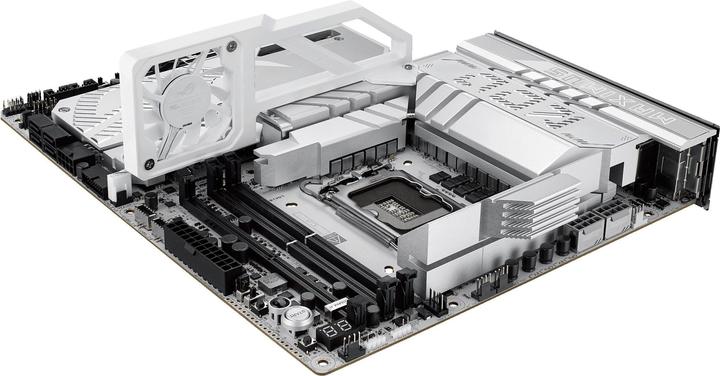

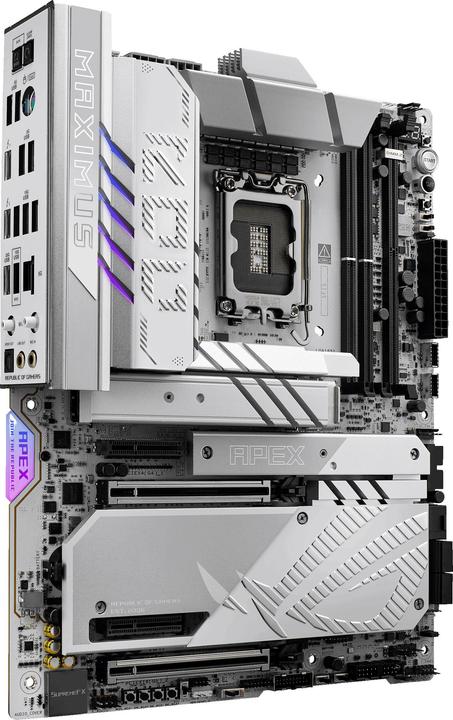

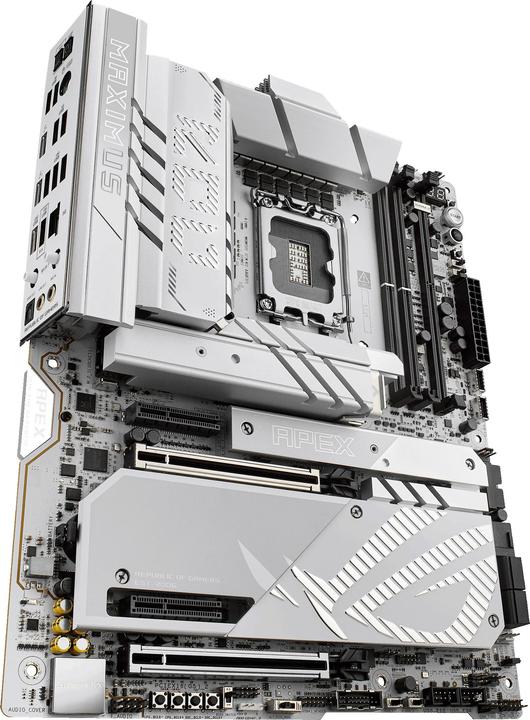

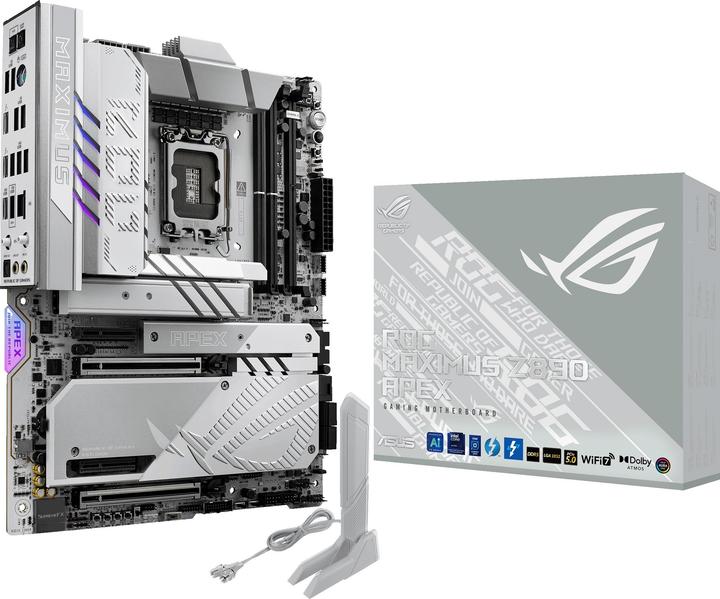

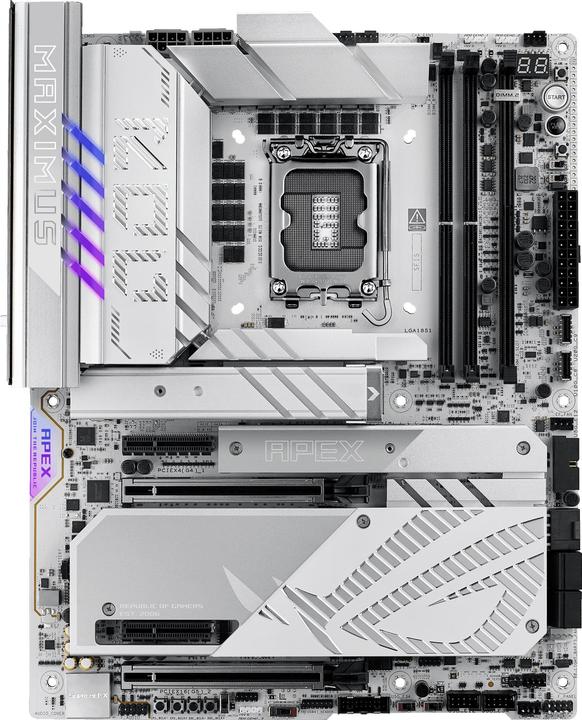

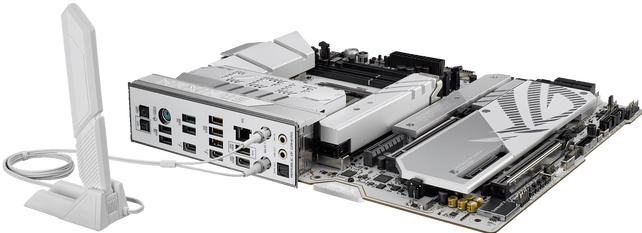

The ROG Maximus Z890 Apex fully supports Intel Core Ultra processors of the 2nd generation. It is designed for extreme overclocking and carries the legacy of the series into a new generation. With exceptional performance capabilities and a DDR5 memory layout featuring two slots, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who prefer brighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex offers a cobblestone gray surface, polished metallic accents, sleek contours, and a predominantly silver color palette.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 PCIe (6x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button |
Item number | 50344135 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1IP0-M0EAY0 |
Release date | 24.10.2024 |
Sales rank in Category Motherboards | 257 of 1027 |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel Z890 |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 4800 MHz |
Supported memory speed | 4800 MHz |
Transfer rate | 8000 MT/s |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

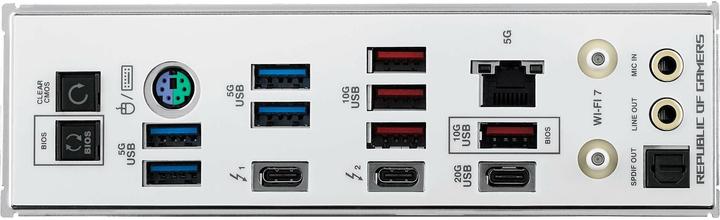

Video connections | Thunderbolt 4 (2x) |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (6x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x), PCI Express x4 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

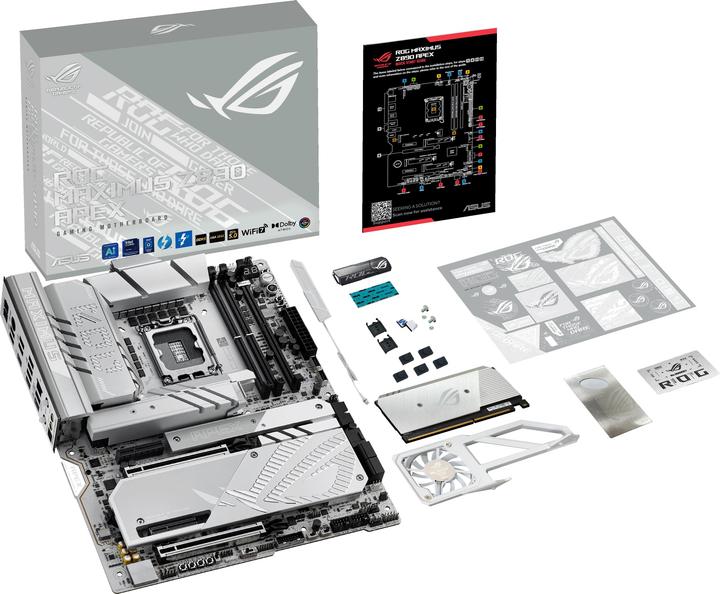

Scope of delivery | Beater, Screws |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 3700 g |
Length | 35.80 cm |
Width | 30.10 cm |
Height | 15.40 cm |
Weight | 3.67 kg |
