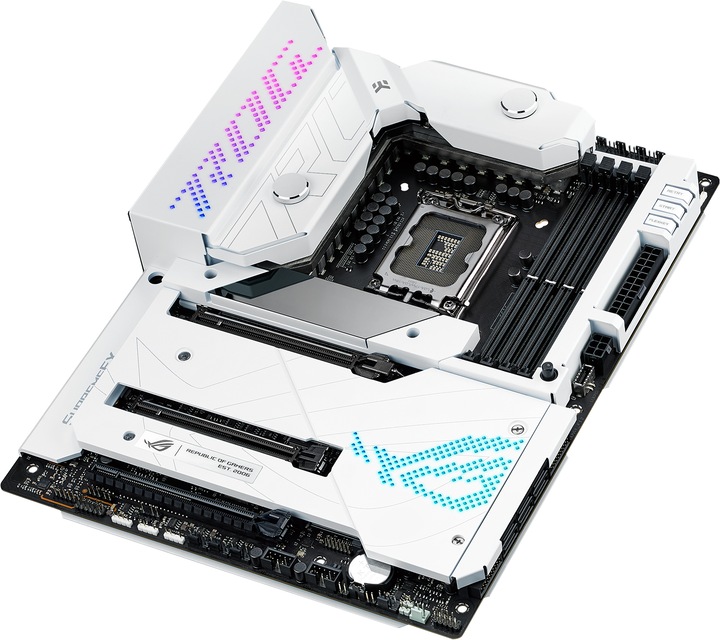

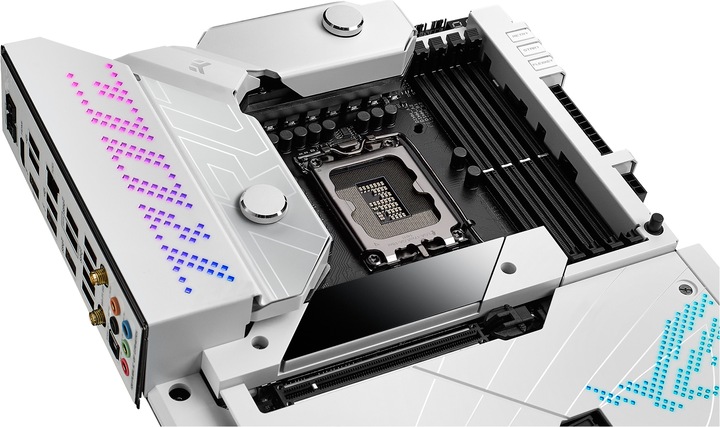

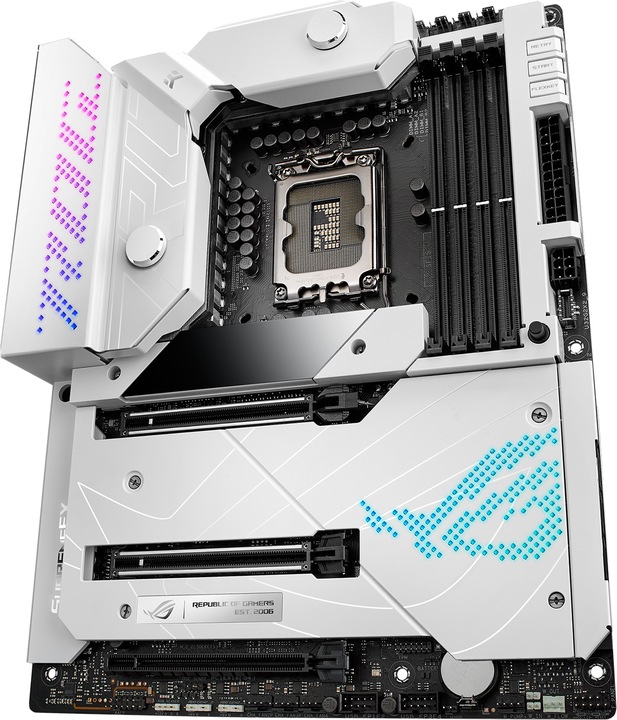

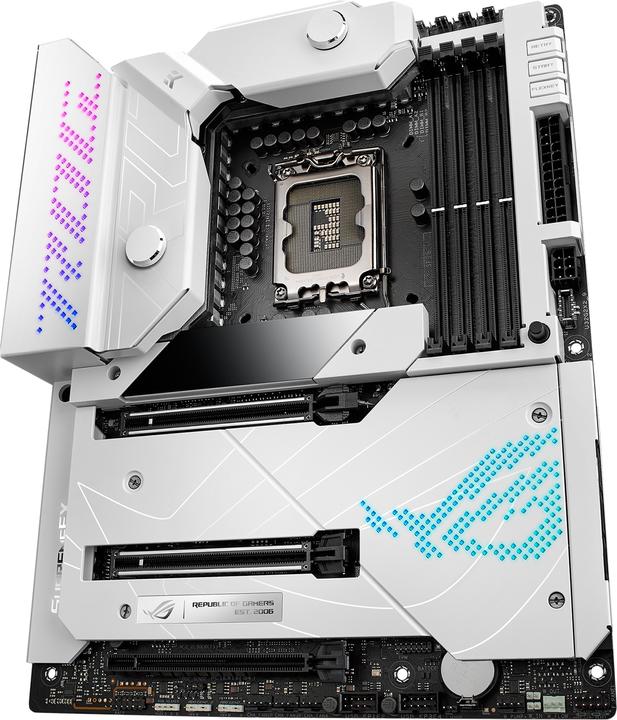

ASUS MB Rog Maximus Z690 Formula

LGA 1700, Intel Z690 (DDR5), ATX
Currently out of stock
Free shipping starting at 50.–

Product details

The MB Rog Maximus Z690 Formula is a powerful motherboard designed for the latest 12th generation Intel processors. It supports DDR5 memory and offers a variety of connectivity options to ensure optimal performance and flexibility for modern computer applications. With an ATX form factor, it is ideal for gaming and high-performance systems. Integrated features such as the Clear CMOS button and support for RAID levels 0, 1, 10, and 5 make it an excellent choice for users who value adaptability and data security. Additionally, the motherboard provides a range of network connections, including 10 Gigabit Ethernet and support for various Wi-Fi standards, ensuring a fast and reliable connection. The HDMI ports allow for easy connection to monitors and other displays, while the 7.1-channel audio output delivers an immersive sound experience.

  • Supports up to 128 GB of DDR5 RAM with 4 DIMM slots
  • Compatible with 12th generation Intel processors (LGA 1700)
  • Integrated 10 Gigabit Ethernet and Wi-Fi 6 for fast network connections
  • RAID support for enhanced data security and performance
  • 7.1-channel audio output for a high-quality sound experience.

Key specifications

Processor family
CeleronCore i3 12th GenCore i5 12th GenCore i7 12th GenCore i9 12th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x)
Wireless transmission
Bluetooth
Mainboard features
Clear CMOS Button
Item number
17442532

General information

Manufacturer
ASUS
Category
Motherboards
Release date
5.11.2021

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z690 (DDR5)
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10 HomeWindows 11 HomeWindows 11 Pro
BIOS type
UEFI AMI
Wireless transmission
Bluetooth
Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11acWi-Fi 6 / 802.11ax

Processor

Processor family
CeleronCore i3 12th GenCore i5 12th GenCore i7 12th GenCore i9 12th Gen

Memory

Memory form factor
DIMM
Number of pins
184 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 10 Gigabit Ethernet (1x)
Max. port speed
10 Gbit/s

Audio

Chip
Realtek ALC4082
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x16 (1x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm

Package dimensions

Length
28 cm
Width
28 cm
Height
11 cm
Weight
4.56 kg
