ASUS Maximus Vii Ranger
LGA 1150, Intel Z97, ATXFree shipping starting at 50.–

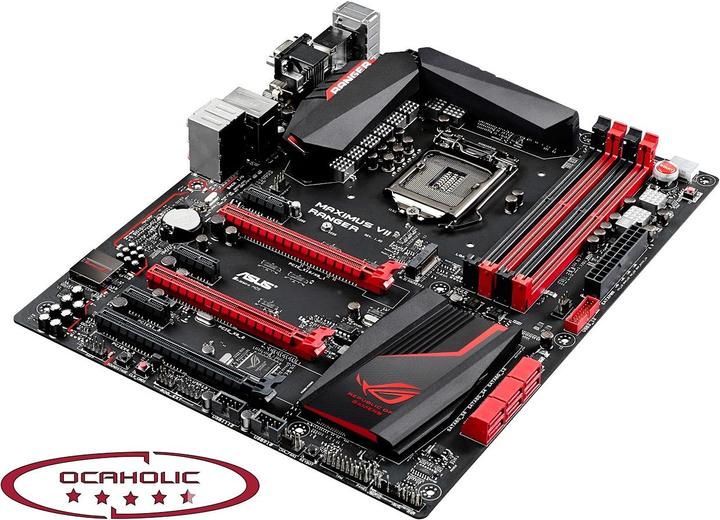

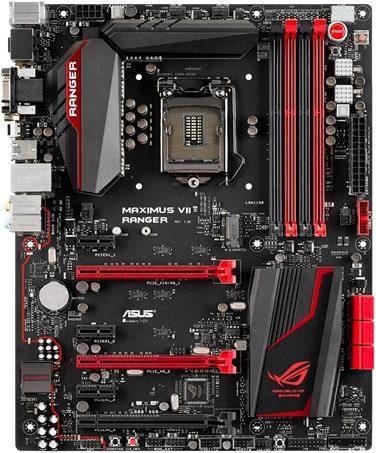

The Maximus VII Ranger is a powerful motherboard designed for demanding applications and gaming enthusiasts. It supports the 4th generation of Intel Core processors and offers a variety of features that ensure high performance and flexibility. With an ATX form factor, it is ideal for use in high-performance desktop PCs. The motherboard has multiple internal connection options, including S-ATA III for fast storage solutions and M.2 M Key for modern SSDs. Support for multi-GPU technologies such as NVIDIA Quad-SLI and AMD Quad-GPU CrossFireX allows for the integration of multiple graphics cards to maximize graphics performance. Additionally, the Maximus VII Ranger provides a variety of connectivity options, including USB 3.1 and HDMI, to ensure comprehensive connectivity.
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 2580156 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0IE0-M0EAY0 |
Release date | 13.5.2014 |
External links |
Form factor | ATX |
Socket | LGA 1150 |
Chipset | Intel Z97 |
Mainboard features | Front panel audio connector |
BIOS type | UEFI AMI |
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Max. RAM OC | 3200 MHz |
Supported memory speed | 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |

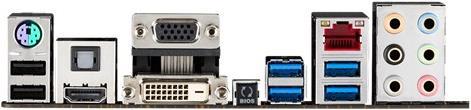

Video connections | HDMI (1x) |
Multi-GPU technology | AMD Quad-GPU CrossFireX, NVIDIA Quad SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I218V |
Max. port speed | 1 Gbit/s |
Chip | ROG SupremeFX |
Audio channel | 8.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x) |
Number of fan connector | 5 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

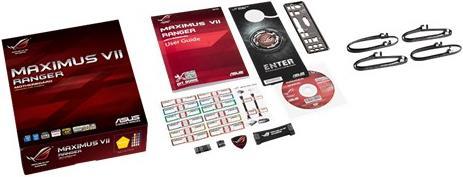

Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
Length | 33 cm |
Width | 28.40 cm |
Height | 7.50 cm |
Weight | 1.82 kg |
