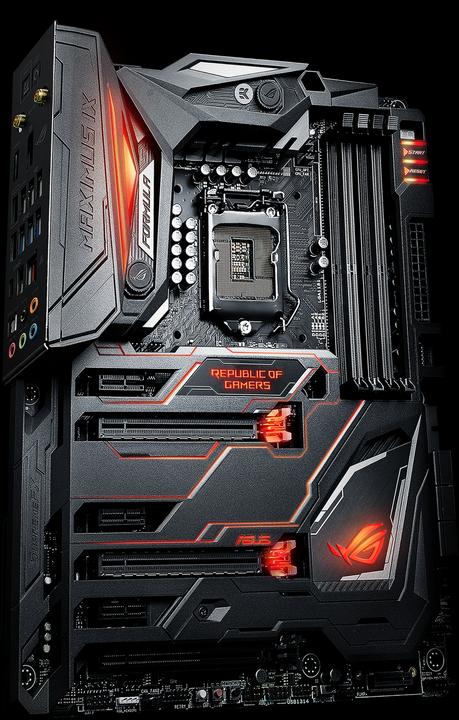

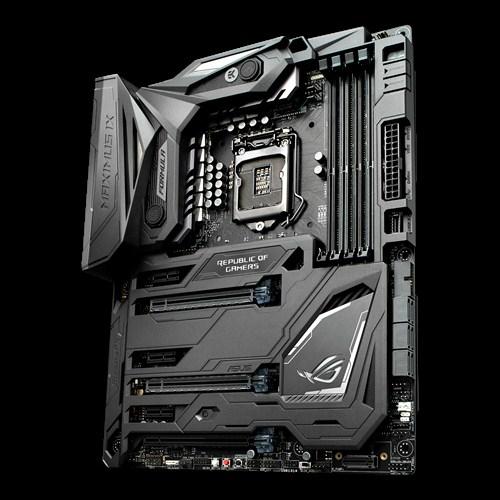

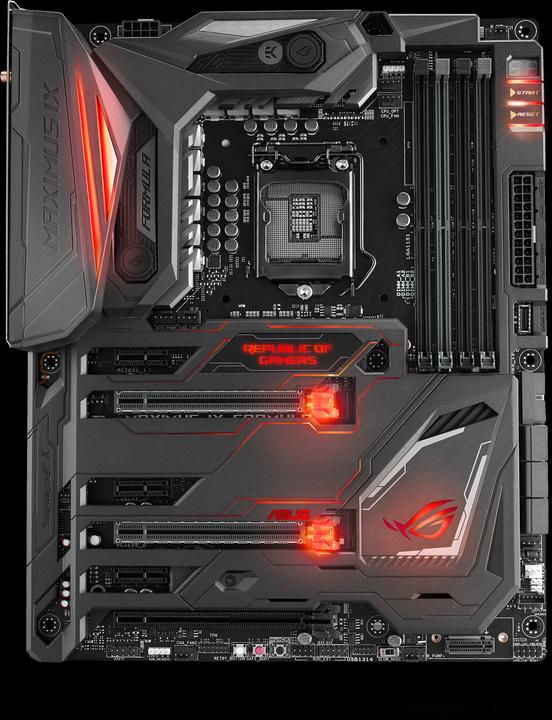

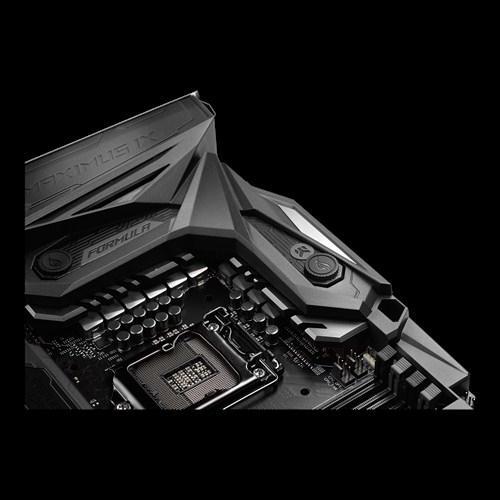

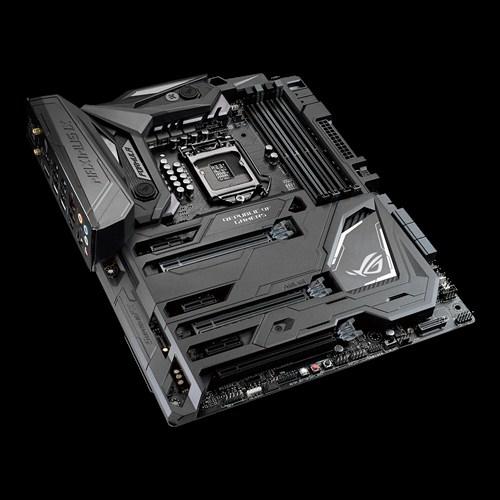

ASUS MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX) Actual product image
CHF 359.–

ASUS MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX)

Description

ASUS Mainboard ROG MAXIMUS IX FORMULA, Memory Type: DIMM, Memory Type: DDR4, PCI Slots: None, PCI-Express slots: 3x PCI-Express 3.0 x16, 3x PCI-Express 3.0 x1, Integrated graphics, Processor socket: LGA 1151, RAID level: 0, 1, 5, 10, Chipset: Z270.

Specifications

Key specifications

PCI express version (max.)3
Multi-GPU technologyNVIDIA SLI, AMD 3-Way CrossFireX

General information

Manufacturer ASUS
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number6067159
Manufacturer no.90MB0RX0-M0EAY0
Release date05.01.2017
External links Manufacturer's site (en)

Motherboard properties

Form factor
ATX
i

ATX

ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995 to improve on previous de facto standards like the AT form factor.

More information...

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

LGA 1151
Chipset
Intel Z270
BIOS Flashback
Yes
R.O.G. Connect
Yes
SuperSpeed USB 3.0
Yes
UEFI BIOS
Yes

Processor compatibility

Processor family
Core i7 6th Gen
,
Core i5 7th Gen
,
Core i7 7th Gen
,
Core i3 7th Gen

Memory

Number of memory modules
4 x
Max. memory
64 GB
Memory chip
DDR4-2133
Max. RAM OC
4133 MHz
Memory type
DDR4-RAM
Channel architecture
RAM buffer
i

RAM buffer

In addition to bandwidth and capacity variants, modules can
1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation.
2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation.
3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.

unbuffered
Memory form factor
DIMM 288

Mass storage controller 1

Data storage controller
Intel Z270
S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

6 x
M.2
2 x
RAID configuration
0
i

0

(block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance.

More information...

,
1
i

1

(mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency.

More information...

,
5
i

5

(block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure.

More information...

,
10
i

10

A RAID 10 group is a RAID 0 over several RAID 1, combining the characteristics of both RAIDs: security and increased read/write speed.
A RAID 10 network requires at least four hard disks.

More information...

Expansion slots

PCI express version (max.)
3
PCI Express x16
i

PCI Express x16

PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors.
During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output".

More information...

3 x
PCI Express x1
i

PCI Express x1

PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes.

More information...

3 x

Expansion slot speed

PCI-E 3.0 x16 (@x16)
2 x
PCI-E 2.0 x16 (@x4)
1 x

Graphics properties

i

Graphics properties

Beschreibt die Grafik Eigenschaften des Gerätes.

Multi-GPU technology
NVIDIA SLI
i

NVIDIA SLI

Scalable Link Interface, SLI for short, is a multi-GPU technology from Nvidia, which enables the interconnection of two or more graphics chips to increase rendering performance (SLI frame rendering) or the use of up to four screens (SLI Multi View).

More information...

,
AMD 3-Way CrossFireX
i

AMD 3-Way CrossFireX

AMD CrossFireX (previously known as CrossFire) is a brand name for the multi-GPU solution by Advanced Micro Devices, originally developed by ATI Technologies. The technology allows up to four GPUs to be used in a single computer to improve graphics performance.

More information...

Graphic connectors

DisplayPort
i

DisplayPort

DisplayPort is a digital display interface standard (approved May 2006, current version 1.1a approved on January 11, 2008) put forth by the Video Electronics Standards Association (VESA). It defines a new license-free, royalty-free, digital audio/video interconnect, intended to be used primarily between a computer and its display monitor, or a computer and a home-theater system.

More information...

1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x
HDMI version
1.4
DisplayPort version
1.20 x

Network

RJ45/LAN port
i

RJ45/LAN port

Network connection allows connection to an internal or external network.

More information...

1 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
Intel
i

Intel

Intel Corporation is an American multinational semiconductor chip maker corporation headquartered in Santa Clara, California.

More information...

Ethernet controller
I219V

Wireless connectivity

i

Wireless connectivity

All network connectivity bluetooth, infrared ports, WLAN, UMTS etc.
Standards are listed here as well.

Wi-Fi
Yes
Wi-Fi standard
802.11 a
i

802.11 a

IEEE 802.11a-1999 or 802.11a is an amendment to the IEEE 802.11 specification that added a higher data rate of up to 54 Mbit/s using the 5 GHz band. It has seen widespread worldwide implementation, particularly within the corporate workspace. The amendment has been incorporated into the published IEEE 802.11-2007 standard.

More information...

,
802.11 ac
i

802.11 ac

The new 802.11ac standard is to be adopted in 2013. The main advantage over 802.11n is the faster data transmission with a gross data rate of up to 6900 Mbps. Net, however, good devices achieve three times as many as 3-stream MiMO devices. Data transmission is exclusively in the 5 GHz band and requires a larger channel width of 80 MHz, optionally a channel width of 160 MHz.

More information...

,
802.11 b
i

802.11 b

IEEE 802.11b-1999 or 802.11b, is an amendment to the IEEE 802.11 specification that extended throughput up to 11 Mbit/s using the same 2.4 GHz band.

More information...

,
802.11 g
i

802.11 g

IEEE 802.11g-2003 or 802.11g is an amendment to the IEEE 802.11 specification that extended throughput to up to 54 Mbit/s using the same 2.4 GHz band as 802.11b.

More information...

,
802.11 n
i

802.11 n

IEEE 802.11n-2009 is an amendment to the IEEE 802.11-2007 wireless networking standard to improve network throughput over the two previous standards—802.11a and 802.11g—with a significant increase in the maximum net data rate from 54 Mbit/s to 600 Mbit/s (slightly higher gross bit rate including for example error-correction codes, and slightly lower maximum throughput) with the use of four spatial streams at a channel width of 40 MHz.802.11n standardized support for multiple-input multiple-output and frame aggregation, and security improvements, among other features.

More information...

Bluetooth
Yes

Audio

Chip
ROG SupremeFX
Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

8.1 Channel
Audio (3. 5 mm) connectors
1 x
Optical TOSLINK
1 x

Internal interfaces

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

1 x
USB 3.0 type A
1 x
Number of fan connector
6
Onboard power button
Yes
Reset button onboard
Yes
S/PDIF Header
1 x
Temperature sensor connections
1 x

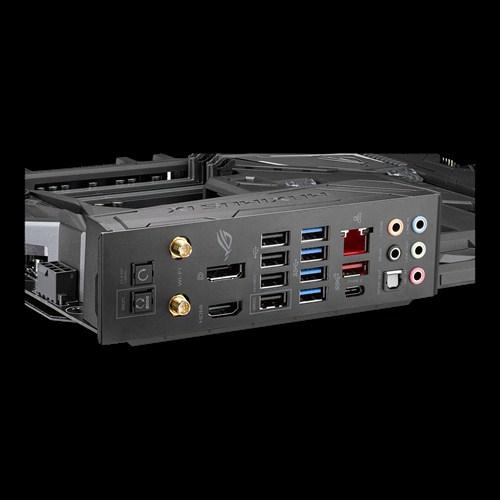

External interfaces

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

4 x
USB 3.0 type A
4 x
USB 3.1
1 x
USB Type-C
1 x

Power supply

i

Power supply

All power supply related details.

Power connectors
24-pin ATX
i

24-pin ATX

More information...

,
8-pin ATX 12V
i

8-pin ATX 12V

More information...

Delivery contents

S-ATA cable
3 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

More information...

Yes

Product dimensions

Length
305 mm
Width
244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Correction suggestion

Comment

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Returns and warranty

Dead on arrival (DOA) 7 Days Bring-in
Warranty 36 month Bring-in
30-day right of return
i

30-day right of return

Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified process, which shows the correct warranty period and takes into account any warranty extensions you have purchased. This ensures that your return or case can be processed as quickly and easily as possible.

Warranty services

Warranty extension

Warranty extension

Extension of the manufacturer's warranty.

to 4 years CHF 34.20

More information about warranty services

Availability

Mail delivery

Expected delivery time: 2–3 weeks
Currently > 5 piece(s) in stock at the supplier

Collection

All locations

Expected delivery time: 2–3 weeks
Currently > 5 piece(s) in stock at the supplier

If ordered immediately. Information subject to change.

Matching accessories

Keyboards

  • ROG Claymore (USB, CH, Cable, MX-Red)
  • ROG Claymore (USB, CH, Cable, MX-Red)
  • ROG Claymore (USB, CH, Cable, MX-Red)
CHF 215.–
ASUS ROG Claymore (USB, CH, Cable, MX-Red)
17

Availability

Mail delivery

  • More than 10 piece(s)
    in our warehouse

Collection

  • Basel: today at 12:30
  • Bern: today at 17:00
  • Dietikon: today at 13:30
  • Geneva: tomorrow at 14:00
  • Kriens: today at 13:00
  • Lausanne: tomorrow at 12:30
  • St Gallen: today at 13:00
  • Winterthur: today at 12:00
  • Wohlen: today at 11:00
  • Zurich: today at 17:15

PickMup

If ordered immediately.
Information subject to change.

View details

+1

Mice

  • ROG Spatha (Cable, Wireless)
  • ROG Spatha (Cable, Wireless)
  • ROG Spatha (Cable, Wireless)
CHF 158.–
ASUS ROG Spatha (Cable, Wireless)
21

Availability

Mail delivery

  • Only 3 piece(s)
    in our warehouse

Collection

  • Basel: today at 12:30
  • Bern: today at 17:00
  • Dietikon: today at 13:30
  • Geneva: tomorrow at 14:00
  • Kriens: today at 13:00
  • Lausanne: tomorrow at 12:30
  • St Gallen: today at 13:00
  • Winterthur: today at 12:00
  • Wohlen: today at 11:00
  • Zurich: today at 17:15

PickMup

If ordered immediately.
Information subject to change.

View details

Questions about this product

The 3 most helpful customer questions

User Noël K.

Guten Tag
Ich würde mir gerne diesen PC zusammenbauen: https://www.digitec.ch/de/ShopList/Show?
Sind die Teile alle kompatibel? Vorallem funktionieren der RAM 3200 auf 2133 wie es im Mainboard steht?

28.05.2017
4 answers
User j.elkuch
Accepted answer

Ja, passt alles. Eine Antistatikmatte ist nicht nötig, nimm einfach die Motherboardschachtel als Unterlage. Als Powersupply reicht alles über 450W, ich empfehle 750W (Habe einen PC mit genau den gleichen specs übertaktet mit 400W psu. (Verbrauch ist ca 330W unter vollast.) Bei deinen Komponenten schätze ich ca 400W. Mein i7-7700k läuft auf 4.8ghz bei 80-90° mit dem Gleichen X62 Kühler. Ich empfehle dir die Ryzen Prozessoren anzuschauen, habe den Ryzen 7 1700 auf 3.9ghz auf allen 8 Kernen auf 50° unter vollast. Die Performance bläst den i7-6900k aus dem wasser für nur 350.-

28.05.2017
User lfruti

Habe eine Frage Weiss Jemand ob Ich mein DDR4 Ram 2400 In dises Bort steken kan

16.10.2018
1 answer
User Brimstone
Accepted answer

Ja, das ist möglich.

16.10.2018

What's your question to the Community?

The Community terms and conditions apply.
If you have any questions about your order, please contact the Customer service.

Product ratings

Overall rating

Avg. 4.9 of 5 stars


Your rating

To what extent does the product meet your expectations?


The 3 most useful ratings

User Anonymous
MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX)

Empfehlenswert

Alle Asus Maximus IX haben 4x USB 3.0 und 4x USB 2.0 Anschlüsse auf der Rückseite. Von denen kann man nie genug haben. Die Verarbeitungs-Qualität ist hervorragend. Darum kann ich alle Mainboard dieser Serie empfehlen. Je nach Ausstattungs-Wunsch kann sich jeder das geeignete aussuchen.

i7 7700K Core Speed 4700 MHz (Multiplikator 47x) und Core Voltage 1.280

3 Stunden Prime95 v29.10, Temperaturhöchstwerte 98C
3Dmark Time Spy V1.0, 6131 CPU-Punkte, Temperaturhöchstwerte 80C
3Dmark Fire Strike V1.1, 15208 Physik Punkte, Temperaturhöchstwerte 76C
CPU-Z Stresstest, Temperaturhöchstwerte 73C

Die Tests sind bei geschlossenem Gehäuse gemacht worden.

System: Asus Maximus IX Formula, Intel i7-7700K, Zalman CNPS 9900 MAX, 32 GB G.Skill F4-3200C14Q-32GTZ, Gigabyte GTX 1070 XtremeGaming, be quiet! Dark Power Pro 11 (650W), 4x Samsung SSD 850 Pro, 1x WD Harddisk Black WD6001FZWX 6 TB, Lian-Li PC-10NA Kingmod (Midi Tower, Gedämmt).

Startvorgang des Systems beschleunigen:

Extreme Tweaker - DRAM Timing Control
- MRC Fast Boost [Enabled] Vorher unbedingt die Speichereinstellungen auf Stabilität testen, da das Speicherretraining damit deaktiviert wird!
- MCH Full Check [Disabled]

Boot
- Option ROM Messages [Disabled]
- Fast Boot [Enabled]
- POST delay time [0]
- Boot Logo [Disabled]

Boot - Boot\CSM (Compatibility Support Module)
- CSM [Disabled]
more

+5+4

+
+
+
+
+
+
+
+
+
-

18.04.2017
10 Comments
Report abuse

You must log in to report an abuse.

User Sulejman
MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX)

Board top

Produkt ist an und für sich top, ich versuche hier nur die negativen Aspekte hervorzuheben. Wer nicht eine individuelle Wasserkühlung macht kann gleich ein leichteres Modell nehmen, diese sind genau so gut. Für den Preis würde man meinen, dass eine individuellere Anleitung vorliegt und nicht eine die alle Asus Boards beschreibt (aber das ist bei allen so).more


+
+
-
-
-
-

27.03.2017
0 Comments
Report abuse

You must log in to report an abuse.

User xerasian
MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX)

Topleistung - aber auch zu Top-preisen.

Es besitzt eine grosse Anzahl von Features die gerade Enthusiasten und Overclocker begeistern wird.


+
+
+
+
+
+
+
-

23.05.2017
0 Comments
Report abuse

You must log in to report an abuse.

ASUS MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX) ASUS MAXIMUS IX FORMULA (LGA 1151, Intel Z270, ATX)
