ASUS Mainboard PRO WS C422-ACE
LGA 2066, Intel C422, ATXProduct details

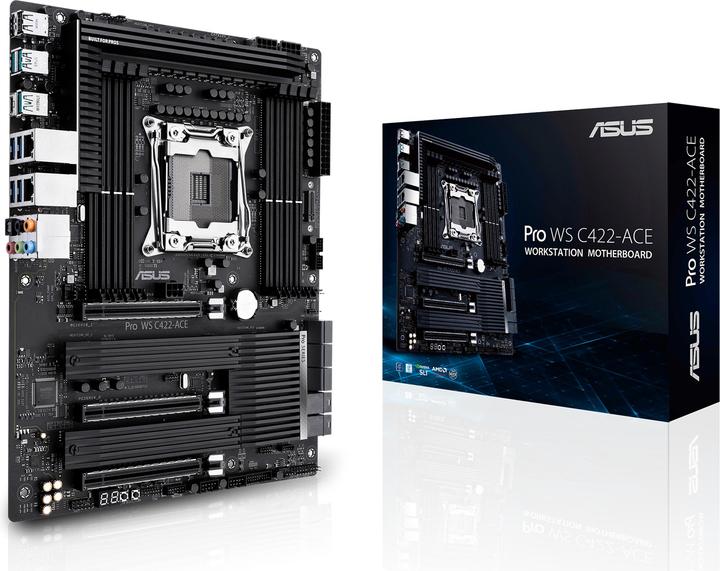

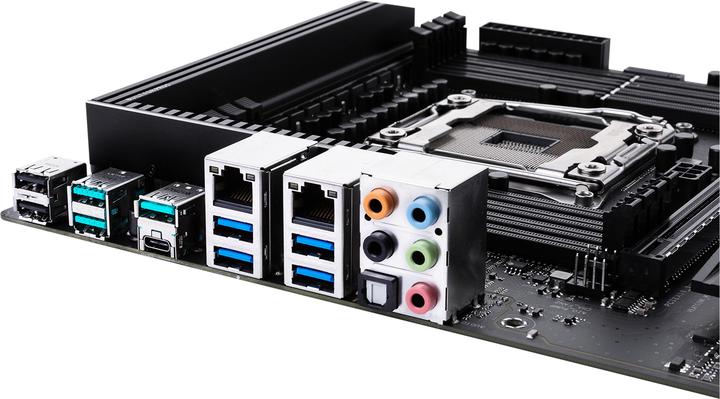

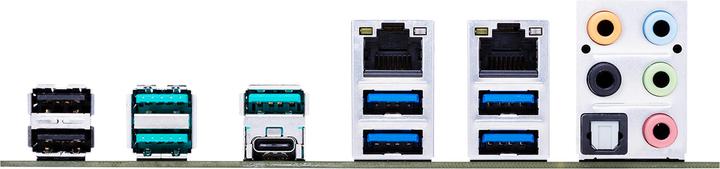

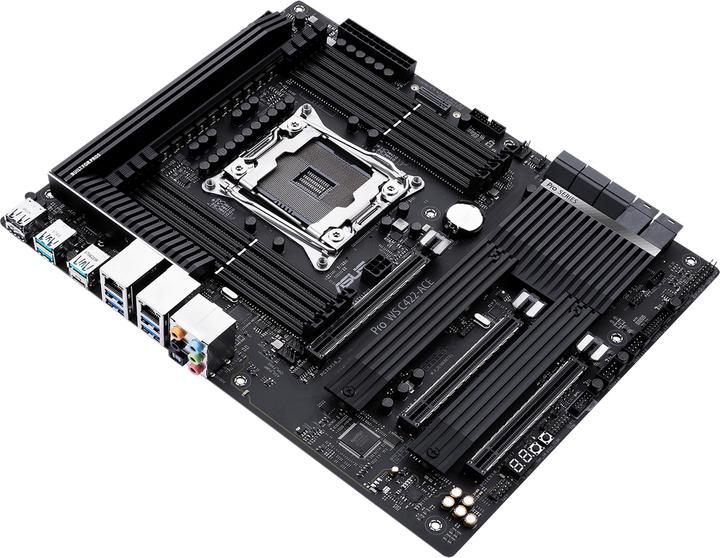

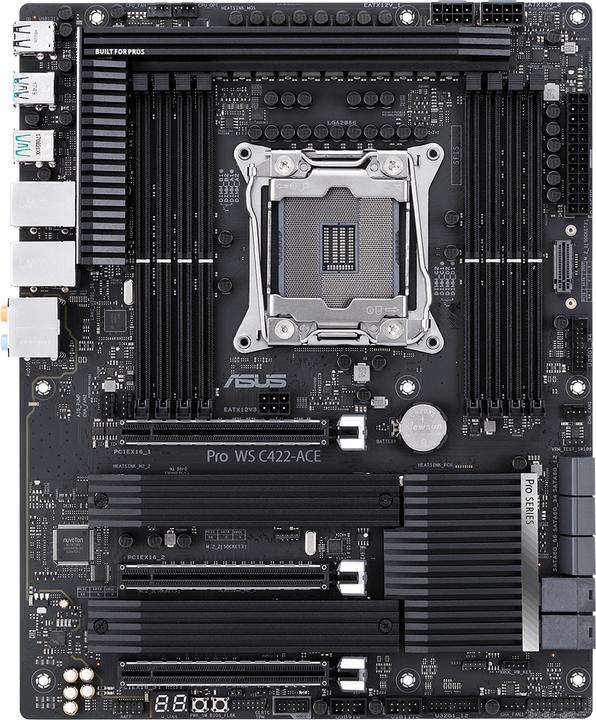

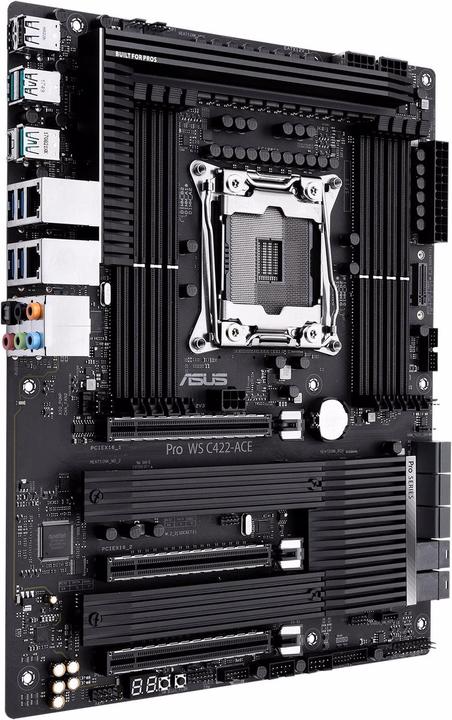

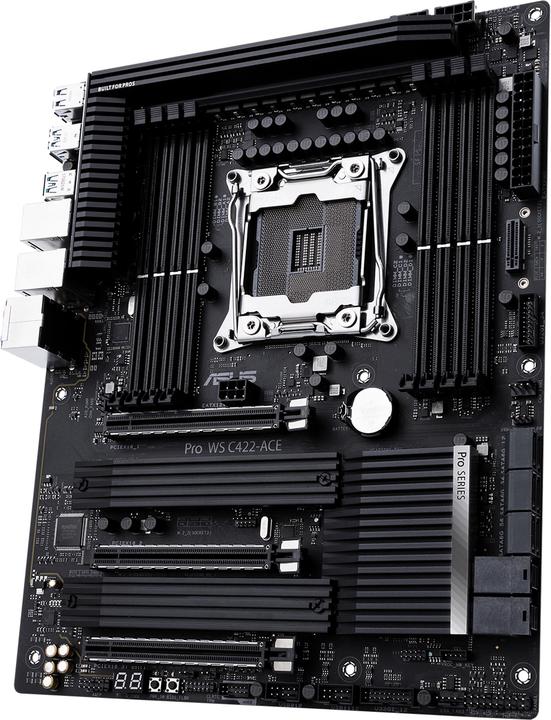

The ASUS Pro WS C422-ACE is a powerful ATX motherboard specifically designed for workstation applications. It supports the LGA 2066 processor socket and is equipped with the Intel C422 chipset, providing high performance and stability for demanding tasks. With the ability to support up to 512 GB of DDR4 RAM, this motherboard is ideal for applications that need to process large amounts of data. The triple M.2 interfaces allow for flexible and fast storage expansion, while the integrated heatsinks ensure efficient heat dissipation. Additionally, the motherboard offers a variety of connectivity options, including USB-C Gen2 and USB 3.2, as well as two Gigabit LAN ports for reliable network connections. Support for multi-GPU technologies like NVIDIA Tri-SLI and AMD 3-Way CrossFireX makes it an excellent choice for graphics-intensive applications.
- Supports up to 512 GB of DDR4 RAM for high memory capacity
- Triple M.2 interfaces with heatsinks for fast storage solutions
- Two Gigabit LAN ports for enhanced network connections
- Compatible with NVIDIA Tri-SLI and AMD 3-Way CrossFireX for multi-GPU setups
- Clear CMOS button for easy BIOS reset.
Processor family | Xeon W |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Clear CMOS Button |
Item number | 12811692 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB11Y0-M0EAY0 |
Release date | 27.2.2020 |
External links |
Form factor | ATX |
Socket | LGA 2066 |
Chipset | Intel C422 |
Mainboard features | Clear CMOS Button |
BIOS type | UEFI AMI |
Processor family | Xeon W |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 512 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933 |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA Tri-SLI |
Network connections | RJ45 Gigabit Ethernet (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210-AT, Intel I219LM |
Chip | Realtek ALC S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (6x) |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Length | 34.60 cm |
Width | 27.50 cm |
Height | 7.80 cm |
Weight | 2.24 kg |
