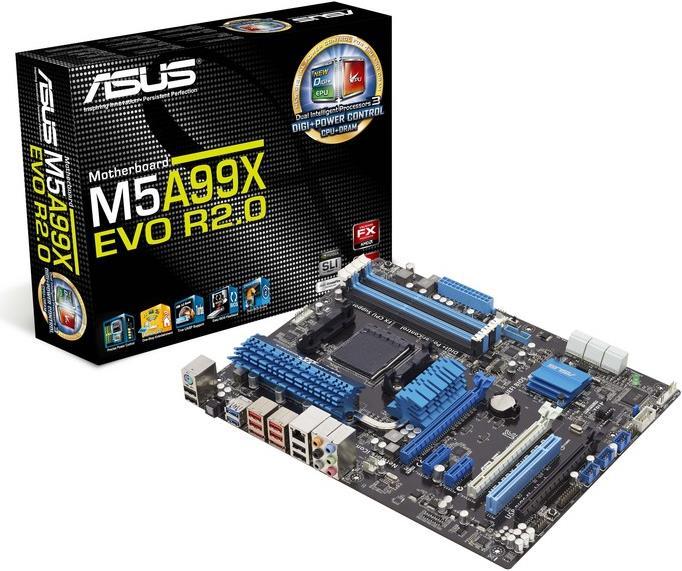

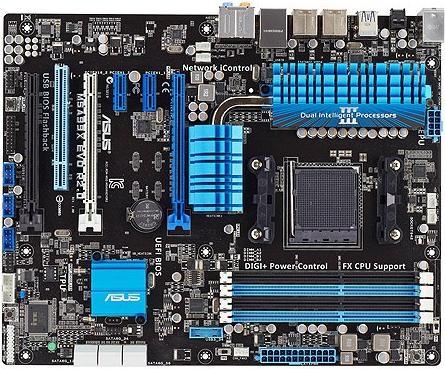

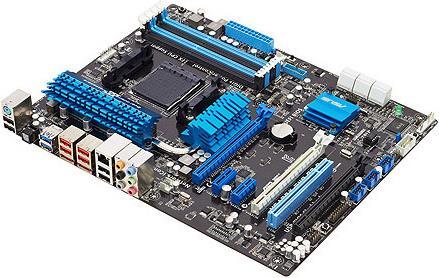

ASUS M5a99x Evo R2
AM3+, AMD 990X, ATXProduct details
CPU and DRAM digital power design for a 100% performance boost on AMD 990X with Windows 8 support. Dual Intelligent Processors 3 with new DIGI+ power control for full hardware control and total performance tuning. Remote GO! provides one-stop PC remote control and home entertainment. USB 3.0 Boost enables faster USB 3.0 transmission with UASP. Network iControl offers real-time network bandwidth control. DirectKey is a dedicated button to access the BIOS directly. USB BIOS Flashback allows for easy, worry-free USB BIOS flashback with a hardware-based design. UEFI BIOS provides a flexible and easy BIOS interface. Windows 8 ready for assured compatibility.
Processor family | Phenom II |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 374018 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90-MIBJI0-G0EAY0VZ |
Release date | 9.11.2012 |
External links |
Form factor | ATX |
Socket | AM3+ |
Chipset | AMD 990X |
Mainboard features | Front panel audio connector |
BIOS type | UEFI |
Processor family | Phenom II |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800), DDR3-1866 (PC3-14900) |
Max. RAM OC | 2133 MHz |
Supported memory speed | 1866 MHz, 2133 MHz |
Memory type | DDR3-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Multi-GPU technology | AMD Quad-GPU CrossFireX, NVIDIA SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL81111E |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (1x), PCI Express x8 (2x) |
PCI express version (max.) | 2 |
Number of fan connector | 5 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | User manual |
Length | 305 mm |
Width | 244 mm |
Length | 26.40 cm |
Width | 33.10 cm |
Height | 6.90 cm |
Weight | 1.53 kg |
