Specifications

Key specifications

PCI express version (max.)2

General information

Manufacturer ASUS
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number2732982
Manufacturer no.90MB0J60-M0EAY0
Sales rank in Product type Motherboards90 of 380
External links Specifications (de)

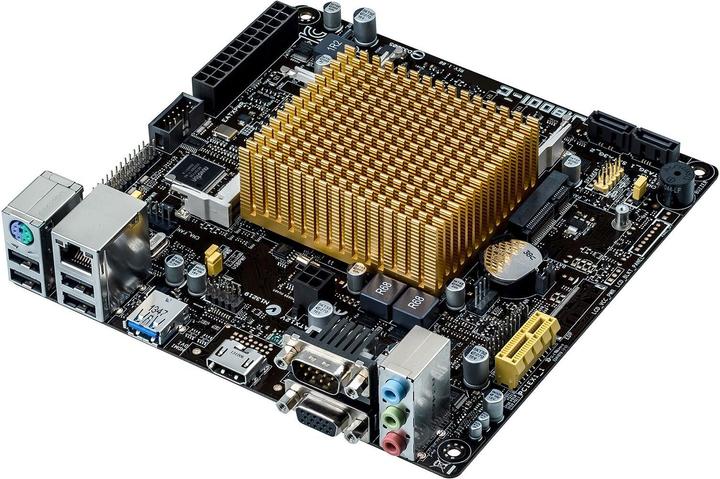

Motherboard properties

Form factor
i

Form factor

In der Computertechnik ist der Formfaktor eine Angabe über Größe und Befestigungsmöglichkeiten eines Bauteils, das in einem Computer Verwendung findet. Durch diese Standardisierung können verschiedene Komponenten einfach zusammengefügt und ausgetauscht werden.

More information...

Mini ITX
i

Mini ITX

Mini-ITX is a 17 x 17 cm (or 6.7 x 6.7 inches) low-power motherboard form factor developed by VIA Technologies in 2001. Mini-ITX is slightly smaller than microATX and screw-compatible with it. Mini-ITX boards can often be passively cooled due to their low power consumption architecture, which makes them useful for home theater PC systems, where fan noise can detract from the cinema experience. Beside that specific application, they are commonly used in small form factor (SFF) computer systems.

More information...

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

FCBGA1170
SuperSpeed USB 3.0
i

SuperSpeed USB 3.0

USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. The standard from 2008 defines a 5 Gbit/s transfer rate.

More information...

Yes
UEFI BIOS
i

UEFI BIOS

The Unified Extensible Firmware Interface (UEFI) is a specification that defines a software interface between an operating system and platform firmware. UEFI is meant as a replacement for the Basic Input/Output System (BIOS) firmware interface, present in all IBM PC-compatible personal computers. In practice, most UEFI images have legacy support for BIOS services. UEFI can be used to allow remote diagnostics and repair of computers, even without another operating system.

More information...

Yes

Processor

i

Processor

A processor is a key component of a computing device, which steers other components via software. The fundamental property of a processor is its programmability. The behaviour of a processor is determined by programmers by means of computer code. The main processor components are the register, arithmetic and logic unit (ALU), control unit and the memory management unit (MMU), which administers memory. Central tasks of a processor include arithmetic operations, reading and writing data in the memory as well as executing programme jumps.

Onboard processor
i

Onboard processor

Der Prozessor befindet sich direkt auf dem Motherboard, ist üblicherweise festgelötet und kann nicht ausgetauscht werden.

Yes
Processor type
i

Processor type

Beschreibt den Typ des Prozessors.

Intel Celeron J1800
Processor clock frequency
i

Processor clock frequency

In electronics and especially synchronous digital circuits, a clock signal is a particular type of signal that oscillates between a high and a low state and is utilized like a metronome to coordinate actions of circuits. Although the word signal has a number of other meanings, the term is here used for "transmitted energy that can carry information".

A clock signal is produced by a clock generator. Although more complex arrangements are used, the most common clock signal is in the form of a square wave with a 50% duty cycle, usually with a fixed, constant frequency. Circuits using the clock signal for synchronization may become active at either the rising edge, falling edge, or, in the case of double data rate, both in the rising and in the falling edges of the clock cycle.

More information...

2410 MHz
Number of processor cores
i

Number of processor cores

A multi-core processor (or chip-level multiprocessor, CMP) combines two or more independent cores (normally a CPU) into a single package composed of a single integrated circuit (IC), called a die, or more dies packaged together. A dual-core processor contains two cores, and a quad-core processor contains four cores.

More information...

2 (Dual core)
i

2 (Dual core)

The processor has two cores.

More information...

Memory

i

Memory

Computer data storage, often called storage or memory, is a technology consisting of computer components and recording media used to retain digital data. It is a core function and fundamental component of computers.

More information...

Number of memory modules
i

Number of memory modules

Ein Speichermodul oder Speicherriegel ist eine kleine Leiterplatte, auf der mehrere Speicherbausteine (Dynamisches RAM in Form von integrierten Schaltkreisen) aufgelötet sind. Speichermodule bilden oder erweitern den Arbeitsspeicher elektronischer Geräte wie Computer oder Drucker und werden dort in speziell dafür vorgesehene Steckplätze gesteckt.

More information...

2 x
Max. memory
i

Max. memory

Ein Datenspeicher oder Speichermedium dient zur Speicherung von Daten beziehungsweise Informationen. Der Begriff Speichermedium wird auch als Synonym für einen konkreten Datenträger verwendet.

More information...

8 GB
Memory chip
i

Memory chip

Random-access memory is a form of computer data storage. A random-access device allows stored data to be accessed directly in any random order. In contrast, other data storage media such as hard disks, CDs, DVDs and magnetic tape, as well as early primary memory types such as drum memory, read and write data only in a predetermined order, consecutively, because of mechanical design limitations. Therefore the time to access a given data location varies significantly depending on its physical location.

More information...

DDR3L-1333
Memory type
i

Memory type

DDR-SDRAM („Double Data Rate Synchronous Dynamic Random Access Memory“) ist ein Typ von Random Access Memory (RAM), den es aktuell in drei Kategorien gibt. DDR-SDRAM mit 184 Kontakten, DDR2-SDRAM mit 240 Kontakten und DDR3-SDRAM ebenfalls mit 240 Kontakten. Verwendet werden sie hauptsächlich für Speichermodule des DIMM- bzw. SO-DIMM-Standards als Arbeitsspeicher in PCs und Laptops.

More information...

DDR3-RAM
Channel Architektur
RAM buffer
i

RAM buffer

In addition to bandwidth and capacity variants, modules can
1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation.
2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation.
3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.

unbuffered
Memory voltage
i

Memory voltage

Beschreibt mit welcher Spannung das Mainboard die Speichermodule versorgt.

1.35 V

Mass storage controller 1

Data storage controller
Intel onboard
i

Intel onboard

More information...

S-ATA II
i

S-ATA II

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 2 can transfer up to 3 Gbit/s.

More information...

2 x

Expansion slots

i

Expansion slots

The expansion card (also expansion board, adapter card or accessory card) in computing is a printed circuit board that can be inserted into an electrical connector, or expansion slot on a computer motherboard, backplane or riser card to add functionality to a computer system via the expansion bus.

More information...

PCI express version (max.)
i

PCI express version (max.)

PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a computer expansion card standard designed to replace the older PCI, PCI-X, and AGP bus standards. PCIe has numerous improvements over the aforementioned bus standards, including higher maximum system bus throughput, lower I/O pin count and smaller physical footprint, better performance-scaling for bus devices, a more detailed error detection and reporting mechanism, and native hot-plug functionality. More recent revisions of the PCIe standard support hardware I/O virtualization.

More information...

2
PCI Express x1
i

PCI Express x1

PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes.

More information...

1 x
Mini PCI Express
i

Mini PCI Express

Mini PCI Express ist der Nachfolger des Mini-PCI-Steckkarten-Formates für Notebooks. Der Standard basiert auf PCI Express und wird von der PCI-SIG entwickelt. Die Schnittstelle unterstützt PCI-Express- und USB-2.0-Verbindungen. Die jeweilige Karte nutzt die Verbindung, die der Hersteller der Karte für am geeignetsten für die Aufgabe erachtet.

More information...

1 x

Graphic connectors

i

Graphic connectors

Beschreibt, welche Grafikausgänge das Mainboard besitzt.

More information...

VGA
i

VGA

A VGA connector as it is commonly known (other names include RGB connector, D-sub 15, mini sub D15 and mini D15) is a three-row 15 pin DE-15. There are four versions: original and DDC2 pinouts, the far older and less flexible DE-9 connector, and a Mini-VGA used for laptops.
The common 15-pin VGA connector found on most video cards, computer monitors, and other devices, is almost universally called "HD-15". HD stands for "high-density", which distinguishes it from connectors having the same form factor but only 2 rows of pins. However, this connector is often incorrectly referred to as a DB-15 or HDB-15.[citation needed]
"VGA connectors" and their associated cabling are almost always used solely to carry analog component RGBHV (red - green - blue - horizontal sync - vertical sync) video signals along with DDC2 digital clock and data.
Where size is a constraint (such as laptops) a mini-VGA port can sometimes be found in place of the full-sized VGA connector.

1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x

Network

RJ45/LAN port
i

RJ45/LAN port

Netzwerkanschluss erlaubt die Verbindung mit einem internen oder externen Netzwerk.

More information...

1 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
i

Ethernet controller brand

Beschreibt die Marke des eingebauten Ethernet Controllers.

More information...

Realtek
i

Realtek

Die Realtek Semiconductor Corp. ist ein „fabless“ (fabrikloses) Unternehmen, das sich mit der Entwicklung von ICs für PCs beschäftigt.

More information...

Ethernet controller
i

Ethernet controller

Beschreibt welcher/welche Ethernet Controller verbaut ist.

More information...

Realtek RTL8111G

Audio

Chip
Realtek ALC887-VD
Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

8.1 Channel
Audio (3. 5 mm) connectors
i

Audio (3. 5 mm) connectors

Es sind 3.5mm Audioanschlüsse vorhanden. (Mindestens Audio Output).

1 x

Internal interfaces

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

1 x
Number of fan connector
i

Number of fan connector

Beschreibt wie viele Lüfterstecker auf dem Motherboard vorhanden sind.

More information...

2

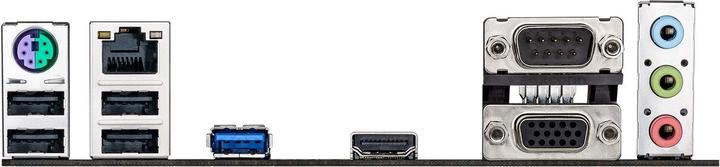

External interfaces

i

External interfaces

Beschreibt welche Schnittstellen das Gerät besitzt, die von aussen (das Gerät muss dafür nicht geöffnet werden) zugänglich sind.

PS/2 Combo
i

PS/2 Combo

The PS/2 connector is a 6-pin Mini-DIN connector used for connecting some keyboards and mice to a PC compatible computer system.

More information...

1 x
RS-232
i

RS-232

In telecommunications, RS-232 is the traditional name for a series of standards for serial binary single-ended data and control signals connecting between a DTE (Data Terminal Equipment) and a DCE (Data Circuit-terminating Equipment). It is commonly used in computer serial ports. The standard defines the electrical characteristics and timing of signals, the meaning of signals, and the physical size and pinout of connectors.

More information...

1 x
USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

4 x
USB 3.0 type A
i

USB 3.0 type A

The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus.

More information...

1 x

Power supply

i

Power supply

All power supply related details.

Power connectors
i

Power connectors

Beschreibt wie viele Stromanschlüsse das Gerät/Objekt hat/benötigt.

More information...

24-pin ATX
i

24-pin ATX

More information...

,
4-pin ATX 12V
i

4-pin ATX 12V

More information...

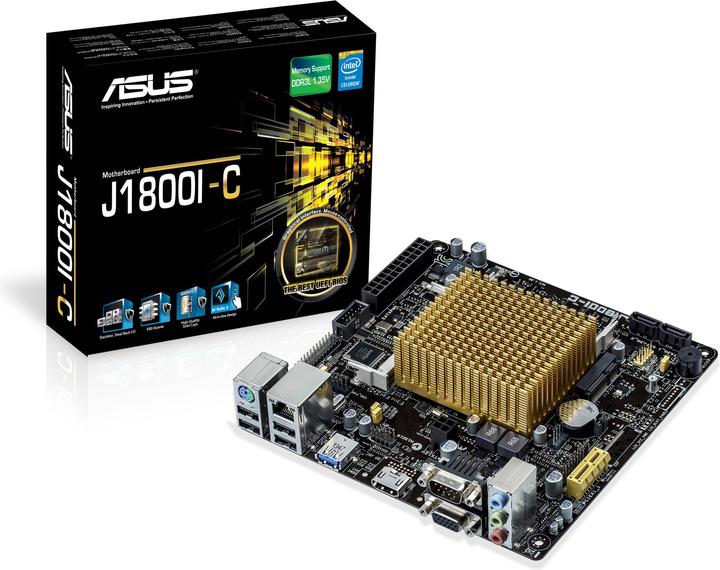

Delivery contents

i

Delivery contents

The scope of delivery means the included accessories.

S-ATA cable
2 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

More information...

Yes

Product dimensions

i

Product dimensions

Physical size of an object

Length
170 mm
Width
170 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data

Correction suggestion

Comment

Report incorrect data

Returns and warranty

Dead on arrival (DOA) 7 Days Bring-in
Warranty 36 month Bring-in
30-day right of return
i

30-day right of return

This product may be returned within 30 days after shipment or collection. A minimum of 10% will be deducted from opened products. Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified warranty process to view the warranty period as well as any warranty extensions you may have purchased. This will ensure that your return or warranty case is processed quickly and effectively.

Warranty services

Warranty extension Bring-in

Warranty extension Bring-in

The warranty is extended at the same conditions as the manufacturer warranty.

to 5 years CHF 37.50

More information about warranty services

Availability

Mail delivery

 Expected delivery time: approx. 9–11 days
Currently > 5 piece(s) in stock at the supplier

Collection

All locations

 Expected delivery time: approx. 9–11 days
Currently > 5 piece(s) in stock at the supplier

If ordered immediately.
Information subject to change.

Customer questions and answers

The 1 most helpful customer questions


Ask a question

Ask other customers about product properties, performance or use.

Customer ratings

Overall rating

2
Avg. 3.5 of 5 stars

The 2 most useful ratings

User _CH_K_1991_
J1800I-C (FCBGA1170, Mini ITX)

Solides Mainboard

Grundsätzlich bin ich mit dem Mainboard sehr zufrieden.
CPU Leistung stimmt für einen Media-Server und der Einbau ging gut vonstatten.

Aber Achtung: Das Mainboard ist mit DDR3L RAM sehr wählerisch. Folgender RAM-Riegel hat bei mir nicht funktioniert: 457086.
Stattessen habe ich nun diesen RAM Riegel eingebaut: 4330748

Beide RAM Riegel sind von der Spezifikation her gleich.
more


+
+
-

10.11.2015
0 Comments
Report abuse

You must log in to report an abuse.

User aryzhoff
J1800I-C (FCBGA1170, Mini ITX)

slow for 1080p playback on HDMI

A bit slow to play 1080p video on TV over HDMI - too many dropped frames


+
+
-
