Product details

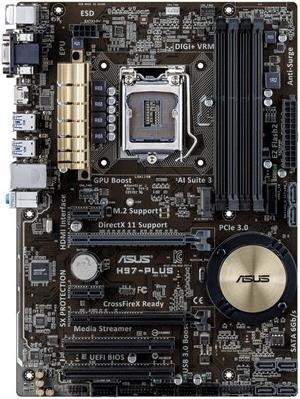

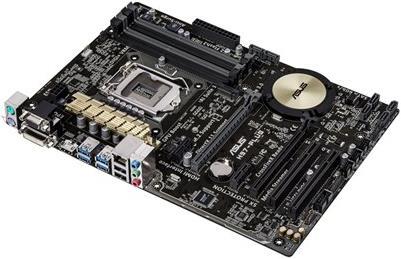

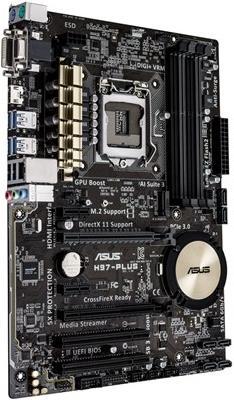

The H97-Plus is a powerful motherboard designed for the 4th generation of Intel Core processors. It supports a variety of processors, including the Core i3, i5, and i7 models, providing a solid foundation for high-performance computer applications. With an ATX form factor, it is compatible with a wide range of cases and allows for easy integration into existing systems. The motherboard supports up to 32 GB of DDR3 RAM, ensuring high flexibility for multitasking and memory-intensive applications. The integrated network ports and video outputs enable easy connections to modern peripherals and networks. The H97-Plus is therefore an excellent choice for users who need a reliable and high-performance platform for their computers.
- Supports up to 32 GB of DDR3 RAM for high performance and multitasking capabilities
- Compatible with 4th generation Intel Core i3, i5, and i7 processors
- Offers multi-GPU technology with AMD Quad-GPU CrossFireX for enhanced graphics performance
- Integrated RJ45 Gigabit Ethernet ports for fast network connections
- Versatile connectivity options, including USB 3.1 and HDMI.
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Item number | 2580168 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0IN0-M0EAY0 |
Release date | 13.5.2014 |
External links |
Form factor | ATX |
Socket | LGA 1150 |
Chipset | Intel H97 |
Operating system compatibility | Windows 7, Windows 8, Windows 8.1 |
BIOS type | UEFI AMI |
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Supported memory speed | 1600 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111GR |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 8.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Number of fan connector | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

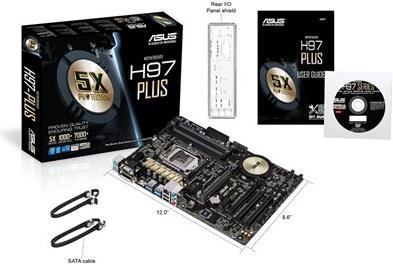

Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 218 mm |
