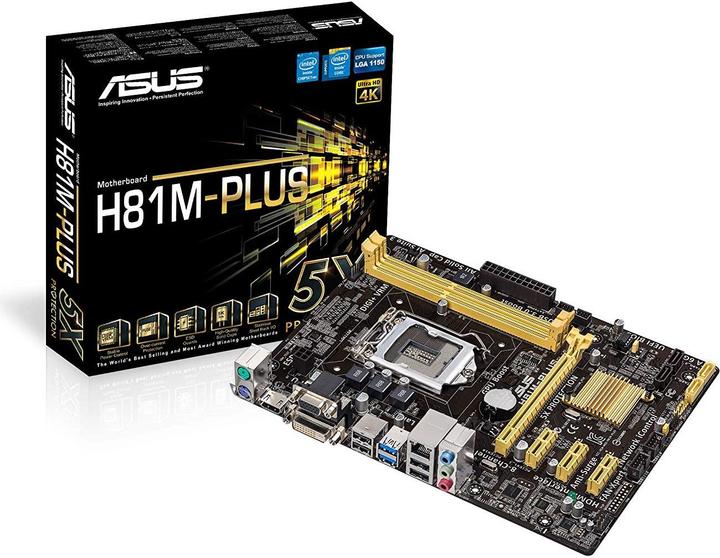

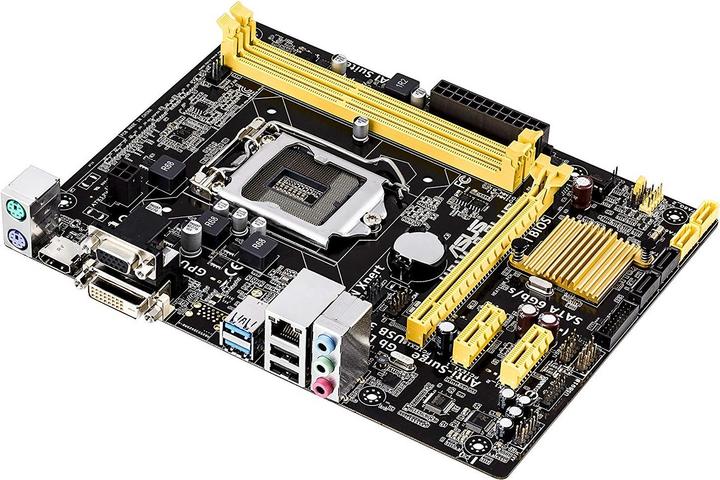

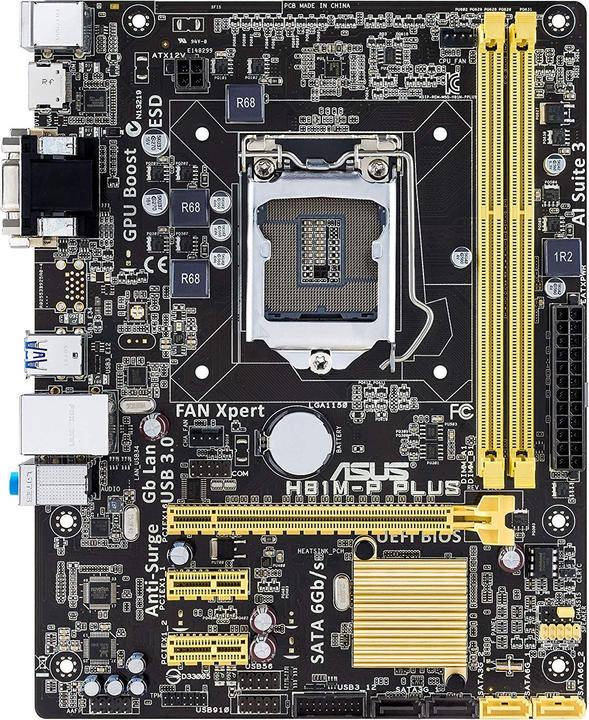

ASUS H81M-P Plus

LGA 1150, Intel H81, mATX
1Ratings
BrandMore from ASUS
Currently out of stock

Product details

The ASUS H81M-P Plus is a Micro ATX motherboard designed for a variety of Intel Core 4th generation processors. It features a user-friendly UEFI BIOS interface that allows for intuitive navigation and customization. With features such as the exclusive EZ Mode, detailed fan control, and the ability to leave notes within the BIOS, using the motherboard is significantly simplified. The H81M-P Plus supports up to 16 GB of DDR3 RAM and offers a wide range of connectivity options, including SATA III and USB 3.0. The integrated GPU Boost function enables real-time overclocking of the integrated graphics to maximize graphic performance. This motherboard is an excellent choice for users seeking a reliable and powerful foundation for their systems.

  • User-friendly UEFI BIOS with EZ Mode for easy navigation
  • Real-time GPU Boost to enhance integrated graphics performance
  • Supports up to 16 GB of DDR3 RAM for improved system performance
  • Variety of connectivity options, including SATA III and USB 3.0.

Key specifications

Processor family
Celeron, Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen, Pentium
Memory type
DDR3-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (2x)
Item number
10088942

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB0L70-M0EAY0
Release date
5.1.2016

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1150
Chipset
Intel H81
Operating system compatibility
Windows 10 Home, Windows 10 Pro, Windows 7
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
16 GB
Memory chip
DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800)
Max. RAM OC
1600 MHz
Supported memory speed
1600 MHz
Memory type
DDR3-RAM
RAM buffer
Unbuffered

Graphics properties

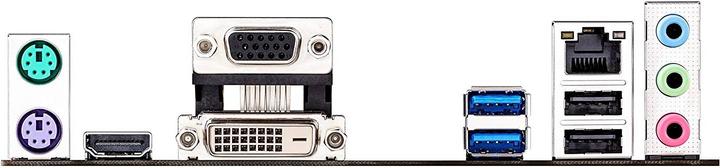

Video connections
VGA (1x)

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I218V

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
HDMI (1x)

Internal interfaces

Internal connection options
S-ATA III (2x)
Expansion slot
PCI Express x1 (2x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
174 mm
Width
226 mm
Height
174 mm
