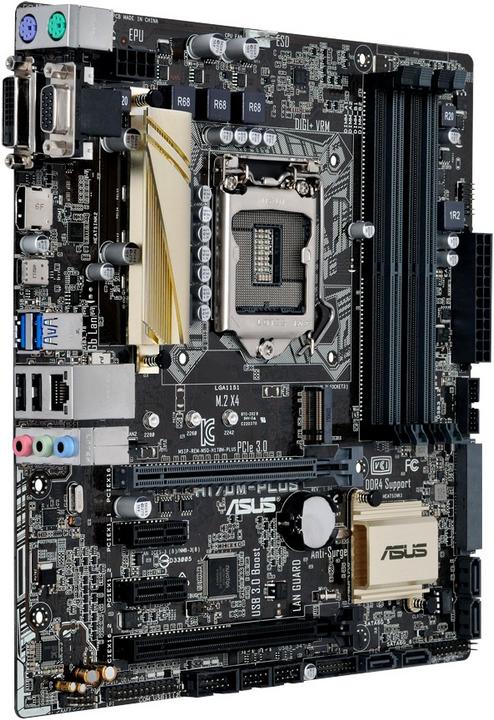

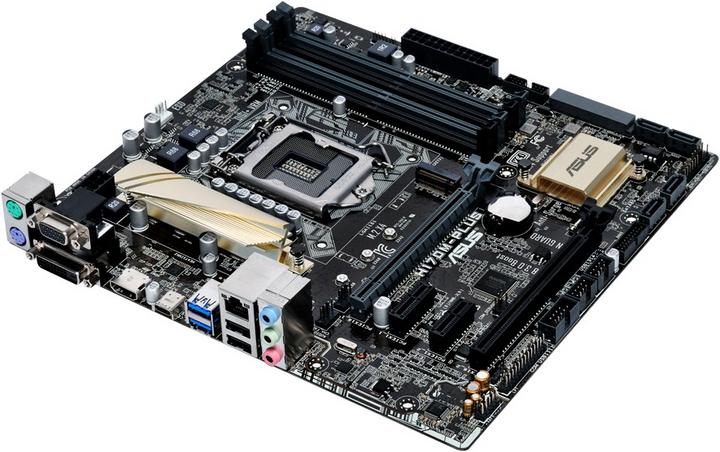

ASUS H170M-Plus
LGA 1151, Intel H170, mATXProduct details
The ASUS H170M-Plus is a powerful micro-ATX motherboard designed for stability and reliability in modern computing applications. It supports the latest DDR4 RAM technology and offers a variety of connectivity options, including a reversible USB Type-C port. With the advanced 5X Protection II system, this motherboard ensures comprehensive safety and durability, making it an ideal choice for gaming and multimedia applications. The lightning-fast M.2 interface with PCIe 3.0 x4 connectivity enables rapid data transfers, while the noise-isolation design provides outstanding gaming sound. The award-winning UEFI BIOS with EZ Flash 3 offers a user-friendly interface for easy customization of system settings. Additionally, the intelligent fan control with Fan Xpert 2+ ensures optimal cooling and quiet operation.
- 5X Protection II for comprehensive hardware protection
- Lightning-fast M.2 interface with PCIe 3.0 x4 connectivity
- Outstanding gaming sound thanks to noise-isolation design
- Intelligent fan control with Fan Xpert 2+
- User-friendly UEFI BIOS with EZ Flash 3.
Processor family | Core i5 6th Gen, Core i7 6th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 5606846 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0MT0-M0EAY0 |
Release date | 3.9.2015 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel H170 |
Mainboard features | Front panel audio connector |
BIOS type | UEFI AMI |
Processor family | Core i5 6th Gen, Core i7 6th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133 |
Supported memory speed | 2133 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

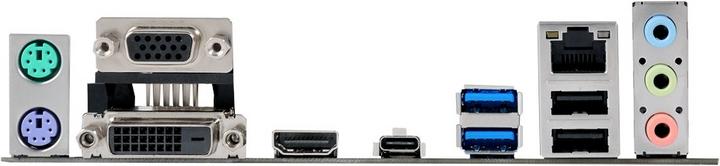

Video connections | HDMI (1x) |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | I219V |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 8.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Number of fan connector | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

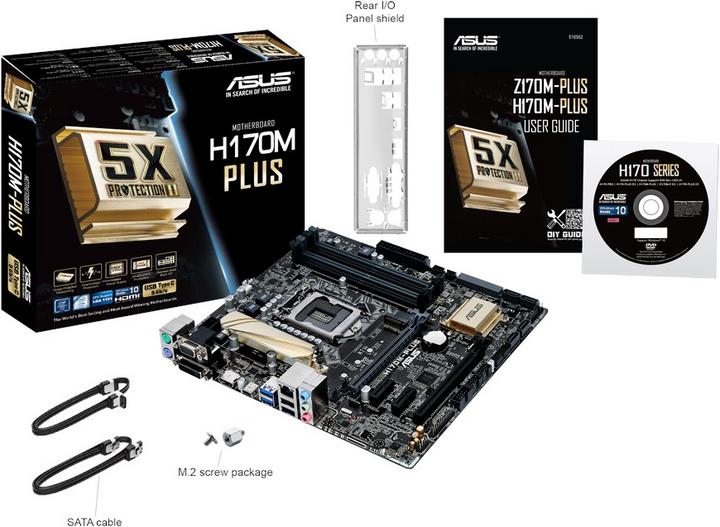

Scope of delivery | S-ATA cable, User manual |
Length | 244 mm |
Width | 227 mm |
Height | 244 mm |
