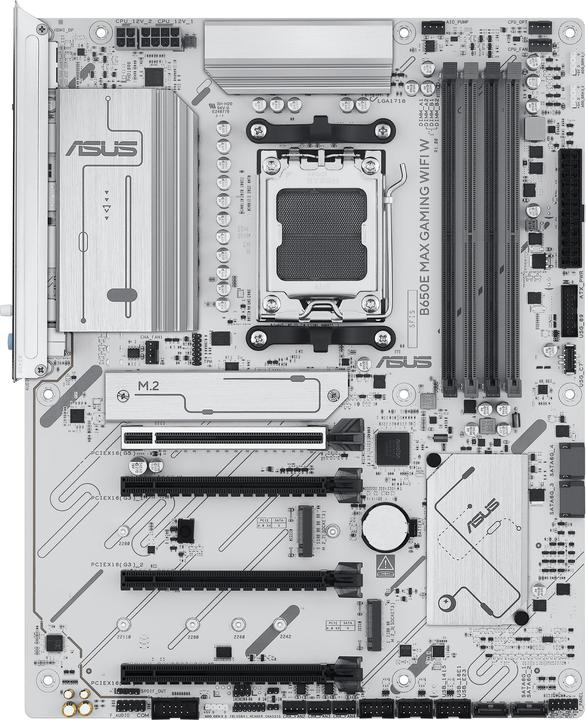

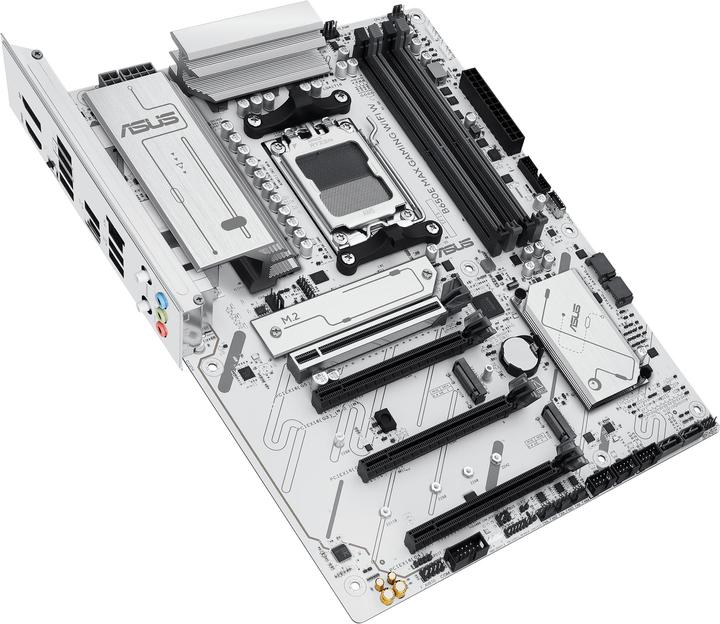

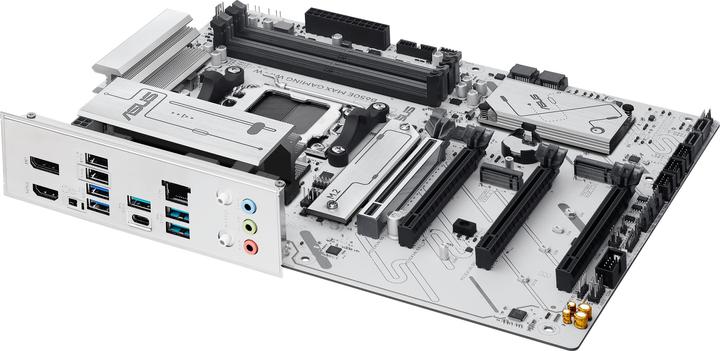

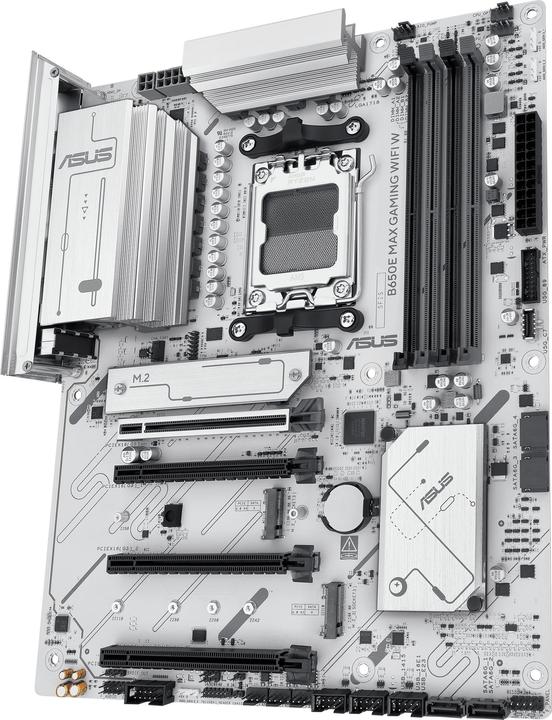

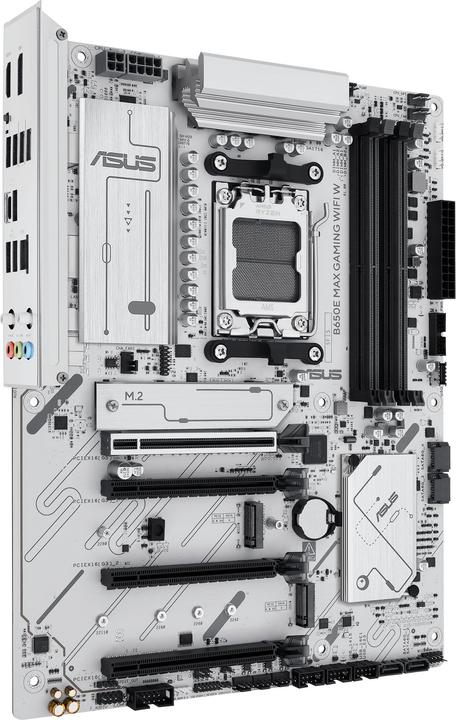

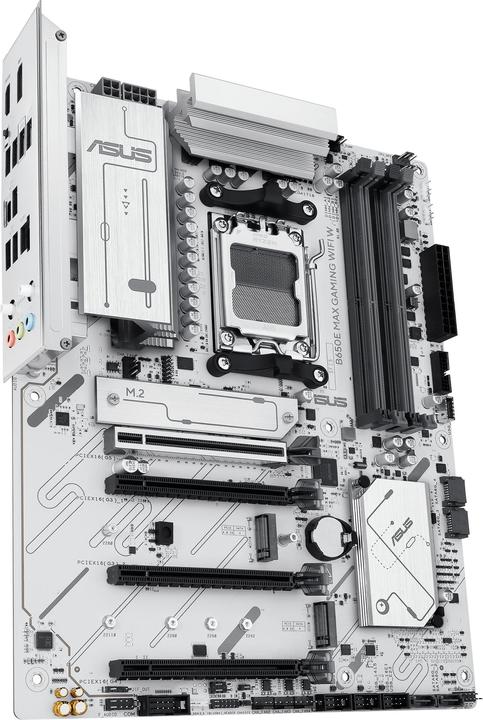

ASUS B650E Max Gaming WIFI W
AM5, AMD B650E, ATXProduct details
The MB B650E Max Gaming Wifi W from ASUS is a powerful motherboard that has been specially developed for the requirements of modern AI computing applications. With the AMD AM5 socket, it is compatible with the latest AMD Ryzen processors of the 7000, 8000 and 9000 series. The improved power supply solution with an 8+2+1 phase design ensures stable and reliable performance, while the extensive cooling with VRM and M.2 heatsinks and hybrid fan headers ensures optimal temperature control. Ultra-fast connectivity is supported by Wi-Fi 6E, PCIe 5.0 and 2.5Gb Ethernet, enabling lightning-fast data transfer. In addition, the motherboard offers numerous DIY-friendly functions that facilitate assembly and customisation, as well as extensive personalisation options with addressable RGB headers.
- Compatible with AMD Ryzen 7000, 8000 and 9000 processors
- 8+2+1 phase power supply design for stable performance
- Wi-Fi 6E and PCIe 5.0 for ultra-fast data transfer
- Comprehensive cooling with VRM and M.2 heat sinks
- Three addressable RGB Gen 2 headers for customised lighting.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x), USB 2.0 Header (3x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | S/PDIF header |
Item number | 57375677 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1M00-M0EAY0 |
Release date | 8.4.2025 |
Sales rank in Category Motherboards | 135 of 952 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650E |
Mainboard features | S/PDIF header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

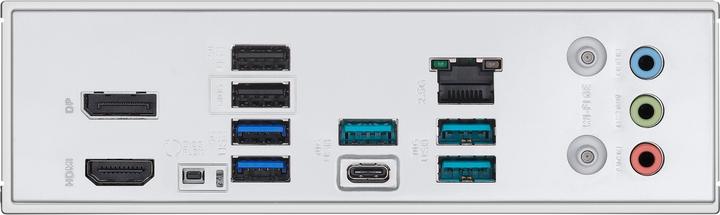

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 1.0 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x), USB 2.0 Header (3x) |
Expansion slot | PCI Express x16 (2x), PCI Express x16 (Gen 4) (1x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (2x), USB-A 3.2 Gen 2 (3x), USB-C 3.1 Gen 2 (1x) |
Power connectors | 4-pin Molex |
Country of origin | China, Taiwan |
CO₂-Emission | |
Climate contribution |

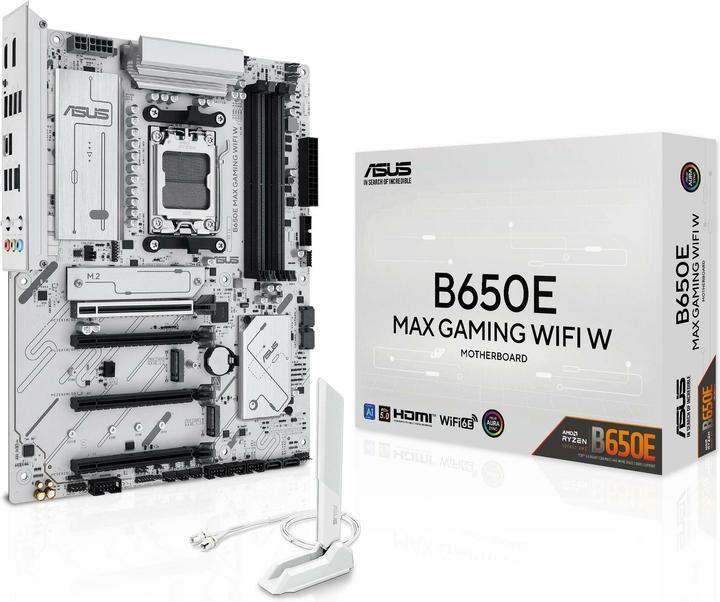

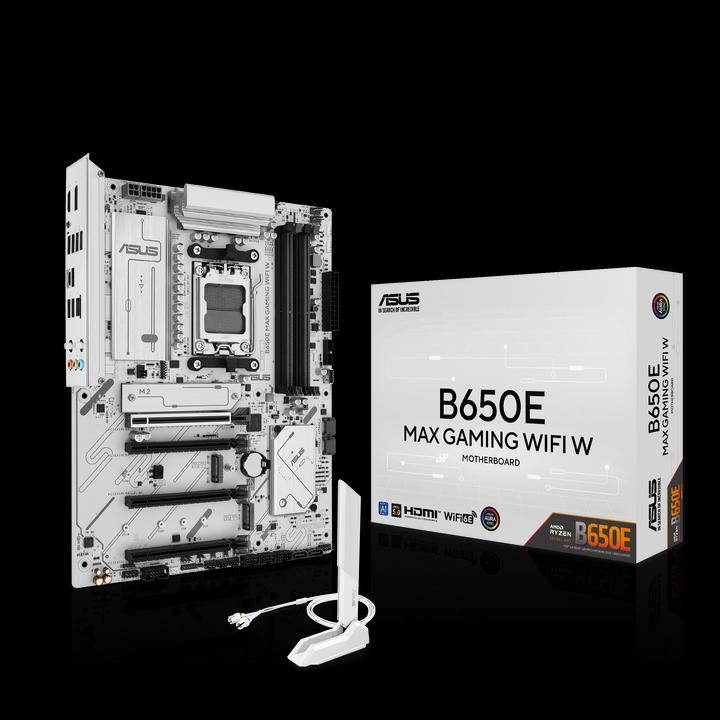

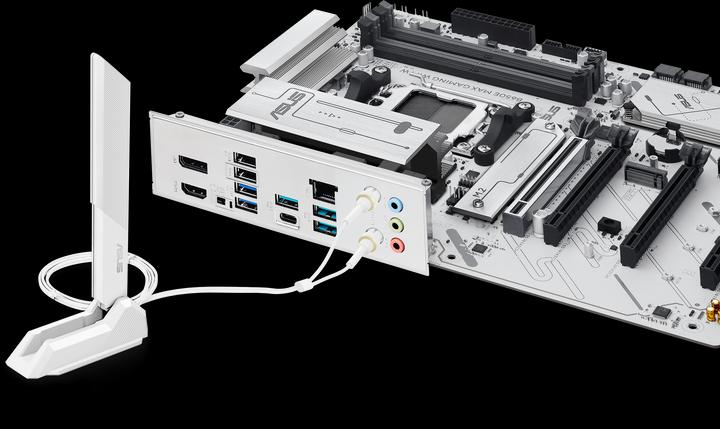

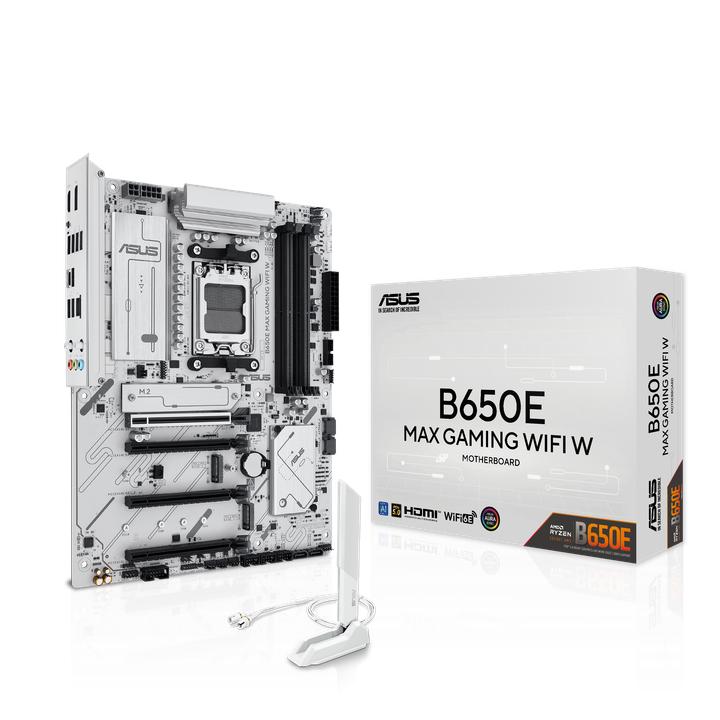

Scope of delivery | 1 piece, Aerial, Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1260 g |
Length | 40 cm |
Width | 35 cm |
Height | 15 cm |
Weight | 1.50 kg |
