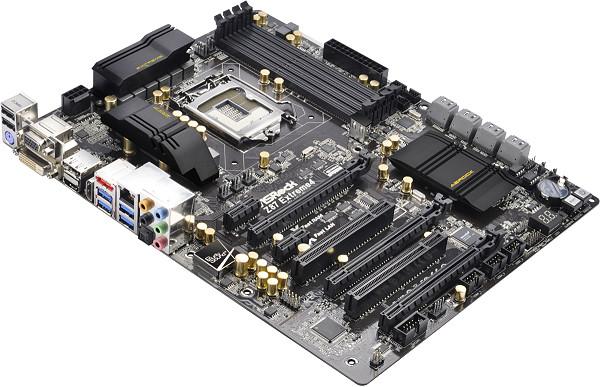

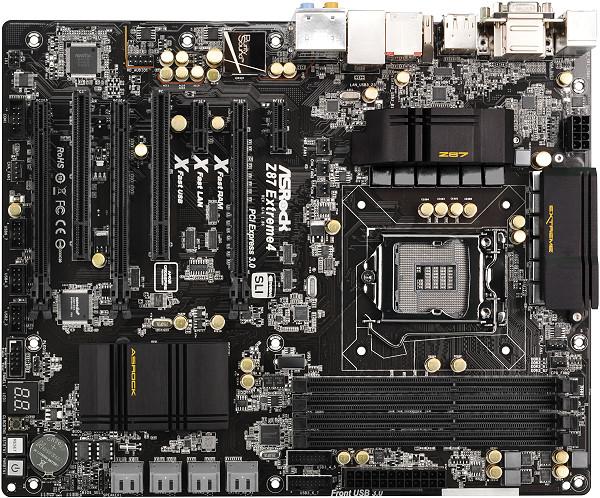

AsRock Z87 Extreme4, LGA1150, ATX, CFX/SLI
LGA 1150, Intel Z87, ATXProduct details
The Z87 Extreme4 motherboard is a powerful and versatile platform designed for the 4th generation Intel processor family. With the LGA 1150 socket and ATX form factor, it provides a solid foundation for demanding applications and gaming. The motherboard supports DDR3 RAM and allows for a maximum memory capacity of up to 32 gigabytes, making it ideal for multitasking and memory-intensive applications. Support for multi-GPU technologies such as NVIDIA SLI and AMD CrossFireX enhances graphics performance, while the PCI-E 3.0 interface ensures fast data transfers. The UEFI BIOS offers a user-friendly and flexible system configuration. With additional features like an HDMI input port and a variety of connectivity options, the Z87 Extreme4 is an excellent choice for anyone seeking a powerful and future-proof solution.
- 12 Power Phase Design for stable power supply
- Support for up to 2800 MHz overclocked RAM
- 7.1 channel audio output for an immersive sound experience
- M.2 SATA connection for fast SSD integration
- USB 3.1 Gen 2 Type-A ports for high data transfer rates.
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 SATA (1x) |
Mainboard features | Front panel audio connector |
Item number | 452331 |
Manufacturer | AsRock |
Category | Motherboards |
Release date | 18.7.2013 |
External links |
Form factor | ATX |
Socket | LGA 1150 |
Chipset | Intel Z87 |
Mainboard features | Front panel audio connector |
BIOS type | EFI AMI |
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Max. RAM OC | 2800 MHz |
Supported memory speed | 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |

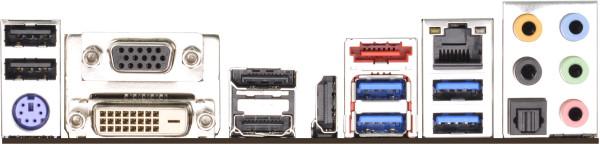

Video connections | DVI-D (Dual Link) (1x) |
Multi-GPU technology | AMD 3-Way CrossFireX, AMD CrossfireX, AMD Quad-GPU CrossFireX, NVIDIA Quad SLI, NVIDIA SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I217V |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1150 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (2x) |
Internal connection options | M.2 SATA (1x) |
Expansion slot | PCI Express x16 (1x), PCI Express x8 (2x) |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
