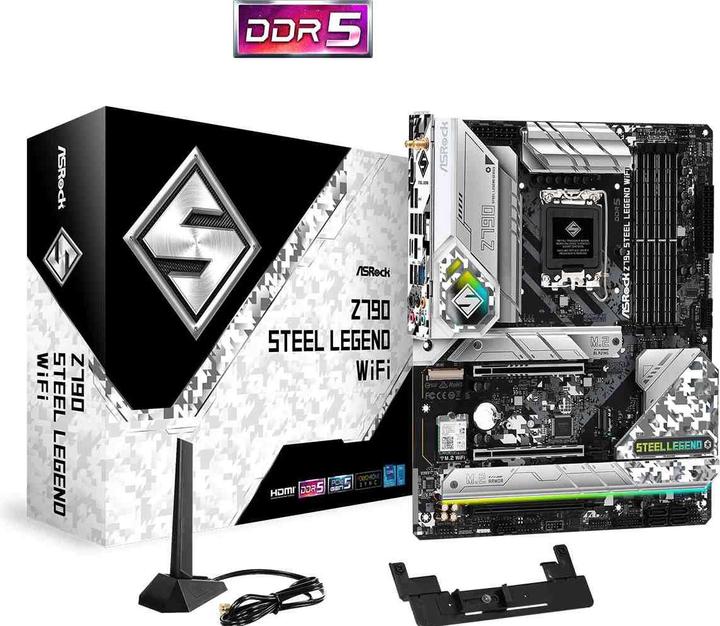

AsRock Z790 STEEL LEGEND WIFI ATX Intel DDR5 So.1700 retail
LGA 1700, Intel Z790, ATXOnly 2 pieces in stock at supplier
Product details

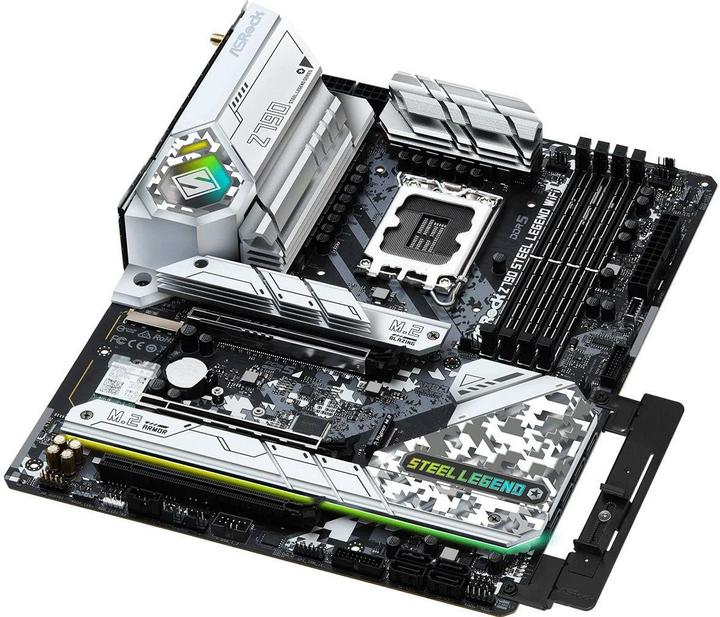

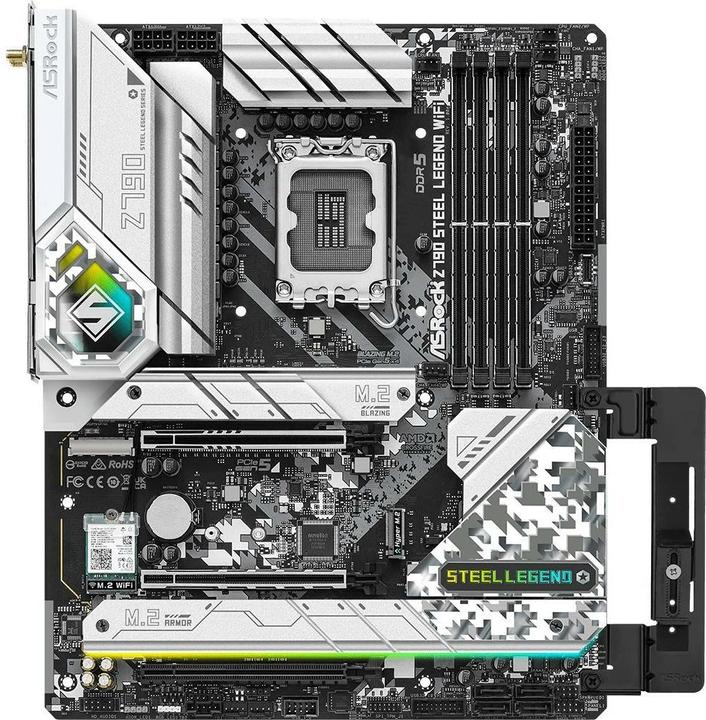

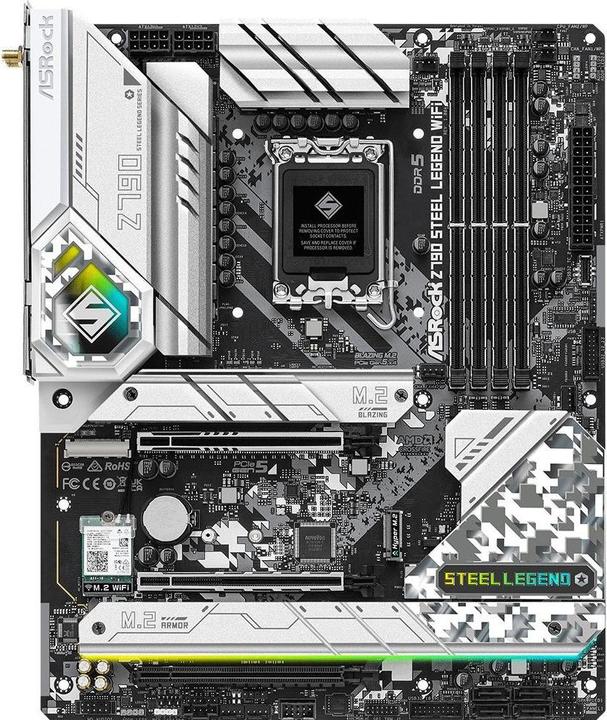

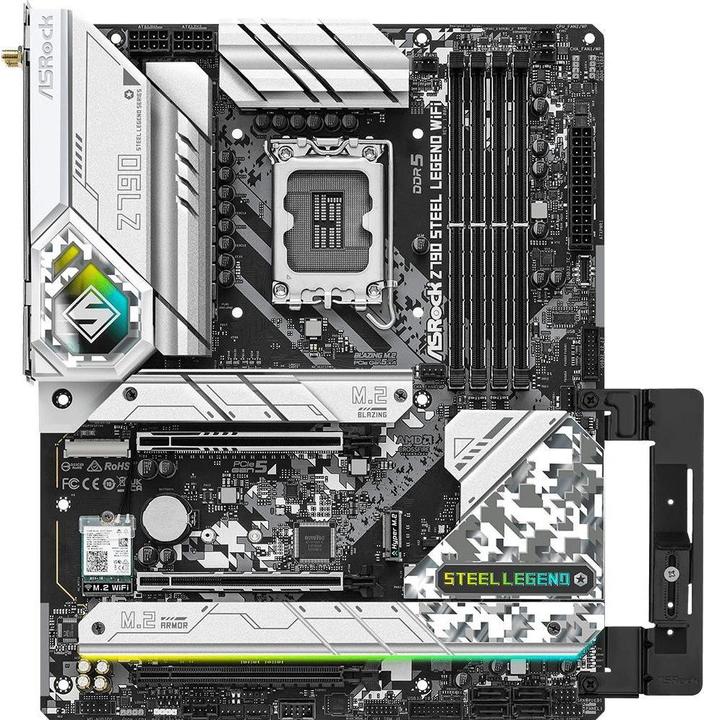

The ASRock Z790 Steel Legend WIFI is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This motherboard is suitable for desktop processors from Intel's 12th and 13th generation Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 6,800 MHz and is excellent for overclocking due to its outstanding power delivery. In addition to a stable power supply with 16+1+1 phase VRMs rated at 60 A, the ASRock Z790 Steel Legend WIFI boasts additional features that significantly simplify the overclocking of your system. Dr.MOS provides automatic adjustments of the VRM voltage and frequency modulation, while extensive heat spreaders ensure a stable system. Other features of this motherboard for overclockers and gamers include a 2.5 Gbit/s LAN connection, Wi-Fi, and 7.1 virtual surround sound, as well as extensive connectivity options for storage devices.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Number of memory modules (RAM) | 4x |
Item number | 22761129 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBKD0-A0UAYZ |
Release date | 20.10.2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

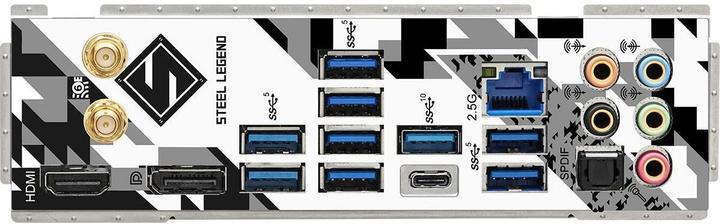

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Multi-GPU technology | AMD CrossFire |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (4x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 2 (3x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

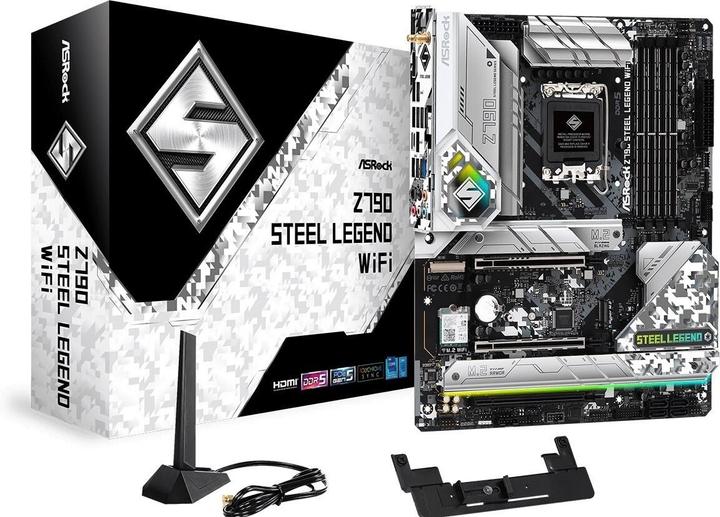

Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 32 mm |
Weight | 2340 g |
Length | 39.40 cm |
Width | 33 cm |
Height | 10 cm |
Weight | 2.31 kg |
