AsRock Z490 Steel Legend

LGA 1200, Intel Z490, ATX
4Ratings
BrandMore from AsRock
Currently out of stock
Free shipping starting at 50.–

Product details

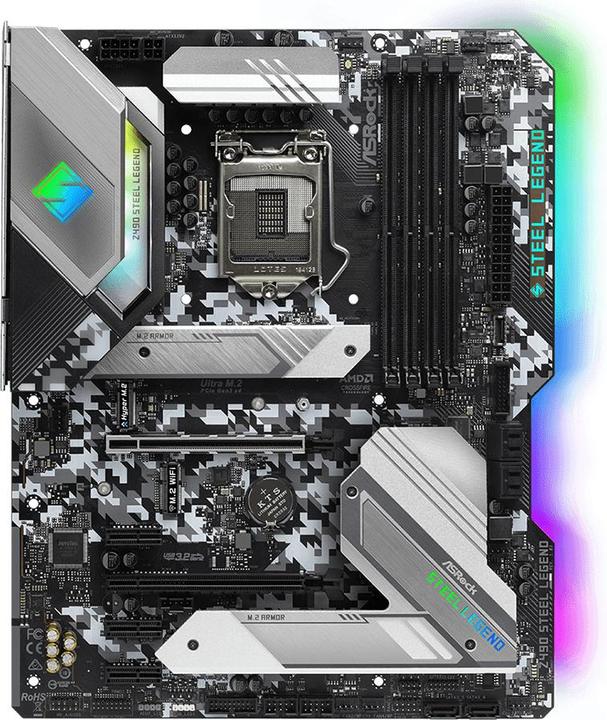

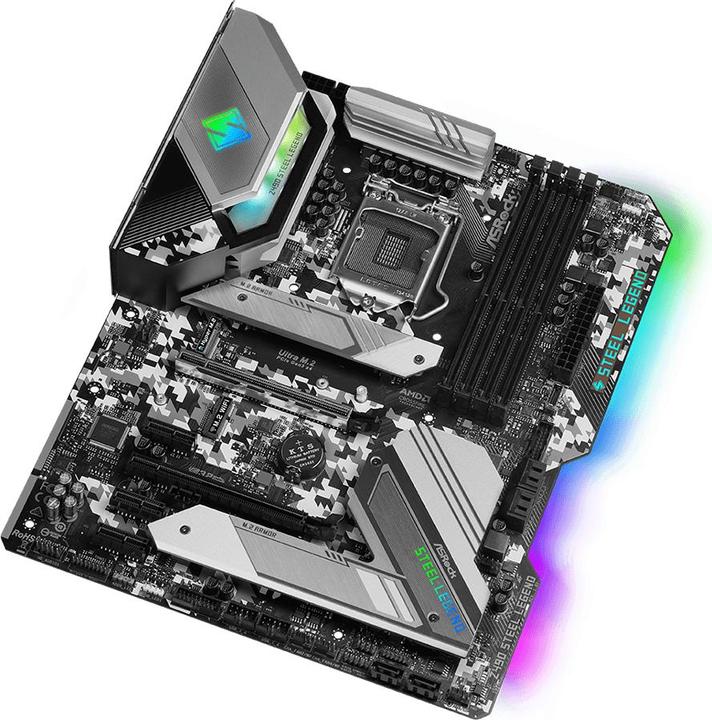

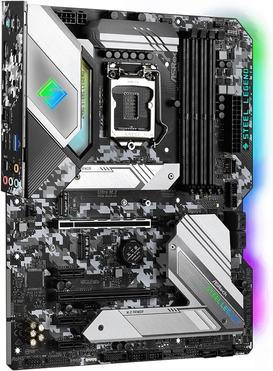

The ASRock Z490 Steel Legend is a robust motherboard featuring onboard 7.1 audio, Gigabit LAN, and protective functions for all components. Expandable up to 128 GB of DDR4 RAM (up to 4400 MHz) and equipped with the Z490 chipset, this motherboard offers high-end computing capabilities. With an LGA 1200 socket, it supports 10th generation Intel Core processors and also allows for overclocking.

Motherboards from the ASRock Super Alloy series are stable and reliable. By using high-quality aluminum alloys, these boards are designed for durability and provide excellent protection for all other system components.

The motherboard features three M.2 slots for fast M.2 SSDs. This interface is particularly recommended for the drive containing the operating system or frequently used applications, enhancing the overall performance of the PC and productivity applications.

Key specifications

Mainboard features
Clear CMOS Button, Front panel audio connector
Processor family
Celeron, Core i5 13th Gen, Core i9 13th Gen
Number of memory modules (RAM)
4x
Memory type
DDR4-RAM
Internal connection options
S-ATA III (6x)

General information

Item number
13199653
Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBC10-A0UAYZ
Release date
20.5.2020

Motherboard properties

Form factor
ATX
Socket
LGA 1200
Chipset
Intel Z490
Mainboard features
Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i5 13th Gen, Core i9 13th Gen

Memory

Memory form factor
DIMM
Number of pins
288x
Number of memory modules (RAM)
4x
Max. memory (RAM)
128 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), DVI
Video connection version
Display port 1.4
Multi-GPU technology
AMD Quad-GPU CrossFireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1200
Audio channel
7.1 Channel
Audio Connections
Coaxial S/PDIF (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x1 (3x), PCI Express x16 (3x)
Number of fan connector
5

Further connections

USB ports
USB-A

Power supply

Power connectors
24-pin ATX

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
244 mm
Width
305 mm
Height
24.40 mm

Package dimensions

Length
39 cm
Width
34 cm
Height
9 cm
Weight
2.28 kg
