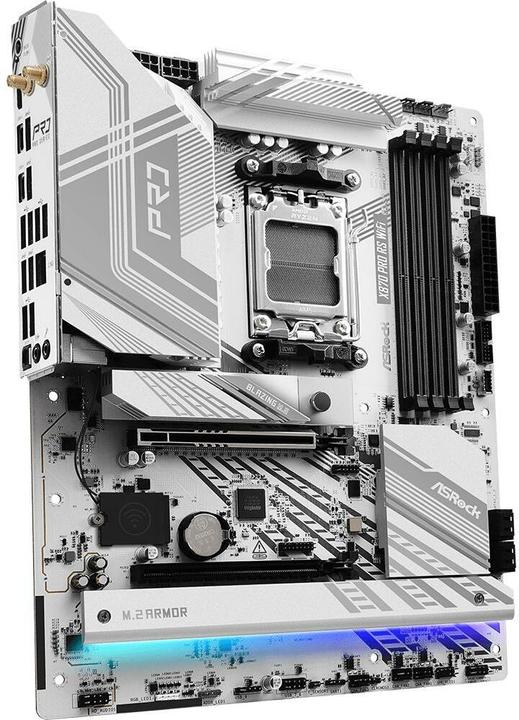

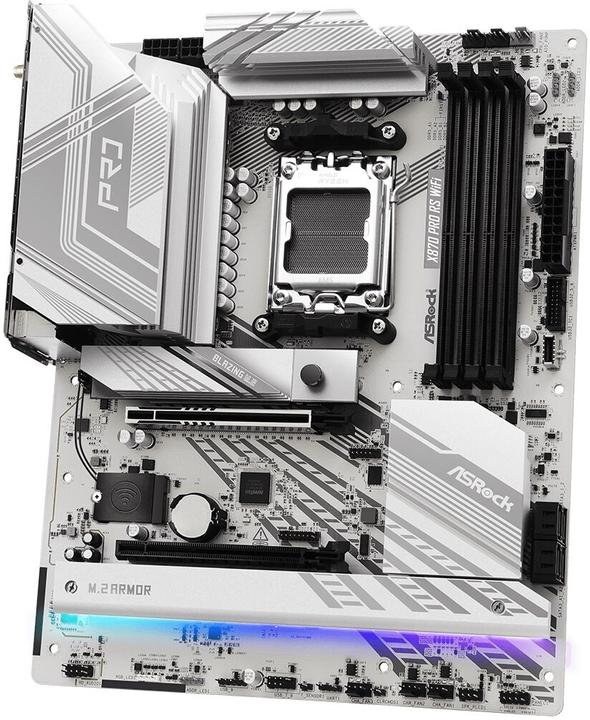

AsRock X870 Pro RS WiFi AM5

AM5, AMD X870, ATX
1Ratings
BrandMore from AsRock
tomorrow with flash delivery
to check if flash delivery is available to you.

Product details

Modern and futuristic, with attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular motherboard in the PRO series.

Key specifications

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector, RGB header
Item number
49690730

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBQ00-A0UAYZ
Release date
24.9.2024
Sales rank in Category Motherboards
144 of 972
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X870
Mainboard features
Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Processor

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5-5200, DDR5-5600
Max. RAM OC
8000 MHz
Supported memory speed
8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
2 x USB-C, HDMI (1x)
Video connection version
HDMI 2.1
Multi-GPU technology
AMD CrossFire

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1220
Audio channel
7.1 Channel
Audio Connections
Microphone

Data storage

RAID configuration
0, 1

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (4x)
Expansion slot
PCI Express x16 (2x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

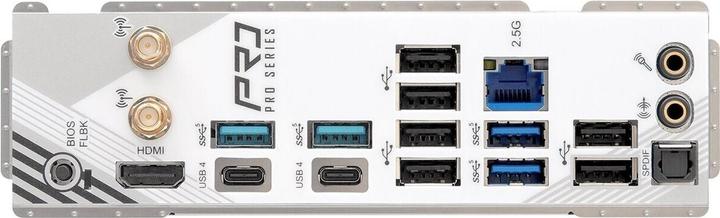

USB ports
USB-A
Exact USB ports
USB-A 2.0 (6x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2x2 (2x)

Power supply

Power connectors
2x 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SATA

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm

Package dimensions

Length
35 cm
Width
28 cm
Height
8 cm
Weight
2.01 kg

30-day right of return
24 Months Warranty (Bring-in)
