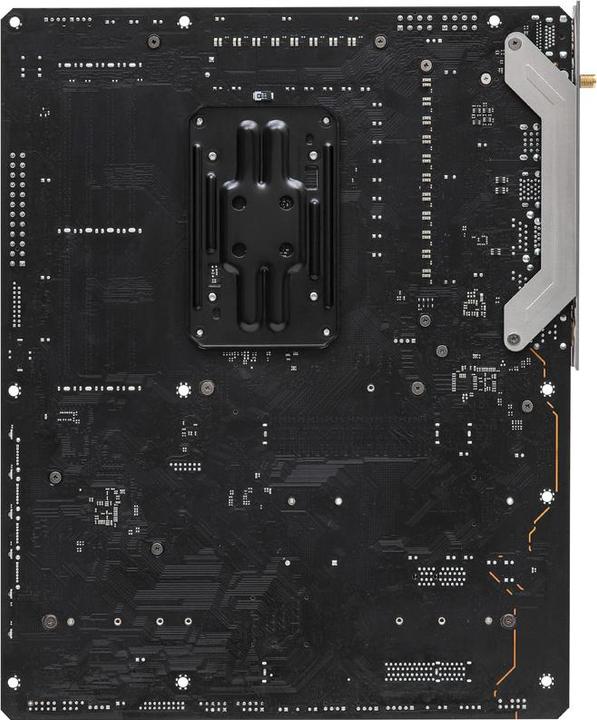

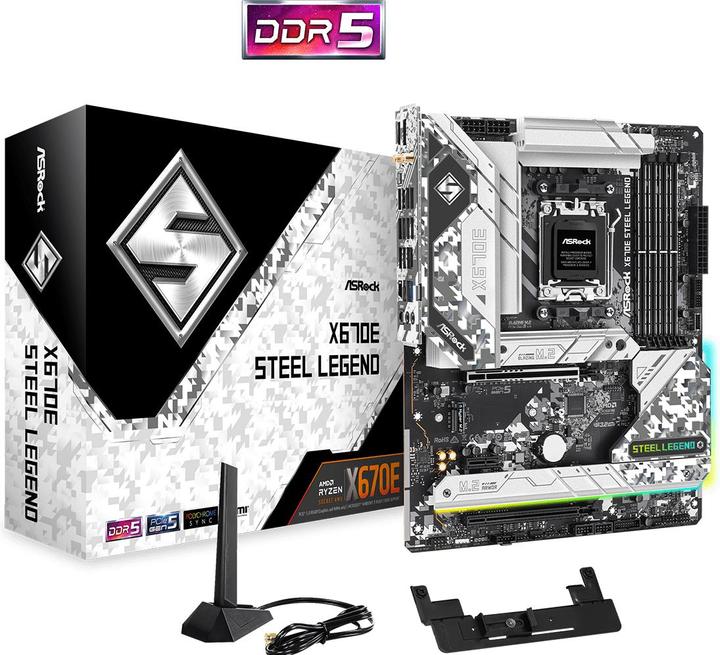

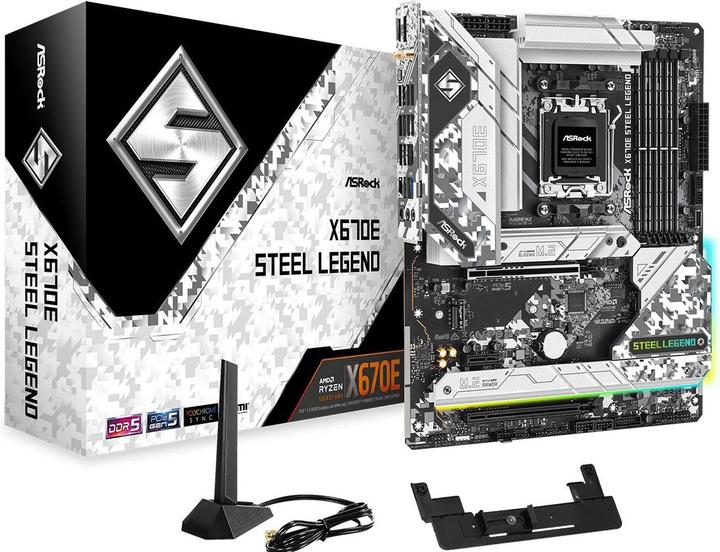

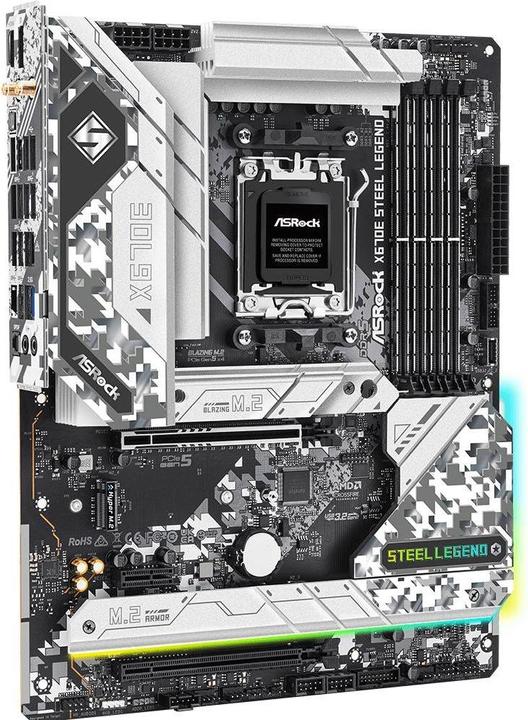

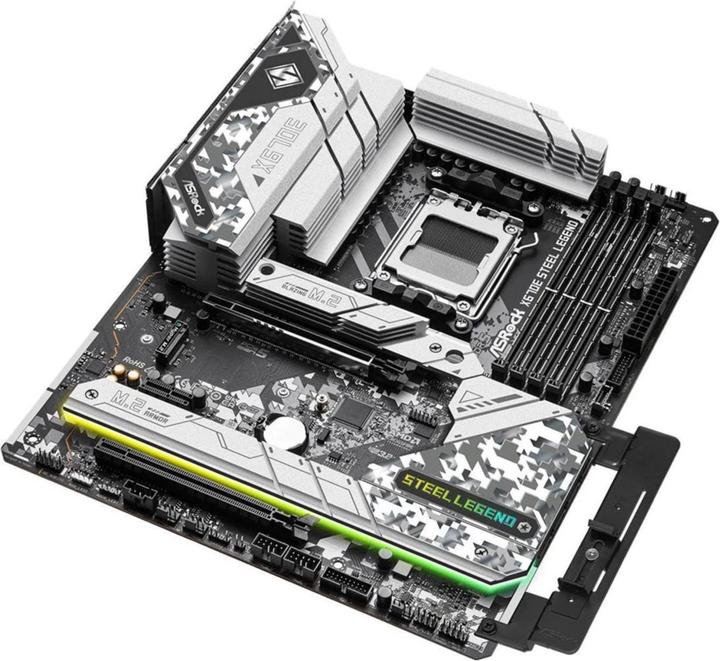

AsRock X670E Steel Legend
AM5, AMD X670E, ATXProduct details
Build your next rig with an AMD Ryzen 7000 series processor and an AMD motherboard with socket to experience advanced performance. Featuring an optimal number of cores and threads, boost clocks, and cache. The Dr.MOS design incorporates the latest SPS technology (Smart Power Stage). It is optimized for monitoring power and temperature in each phase, delivering smoother and cleaner performance to the CPU with enhanced performance and overclocking capability. The low-loss server-grade PCB improves signal integrity, allowing the motherboard to support PCIe 5.0 for both graphics cards and M.2 SSDs, enhancing memory overclocking potential to deliver extreme memory performance.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x) |
Wireless transmission | Bluetooth |
Mainboard features | Front panel audio connector |
Item number | 22518305 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBJ40-A0UAYZ |
Release date | 20.10.2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X670E |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | AMD 7000 Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Max. RAM OC | 6600 MHz |
Supported memory speed | 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | ECC Registered |
Video connections | DisplayPort, DVI |
Video connection version | Display port 1.4, HDMI 2.1 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (2x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG, Realtek RTL8111 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | 24-pin ATX power connector (1x) |
Expansion slot | PCI Express x1 (4x) |
Number of fan connector | 4 |

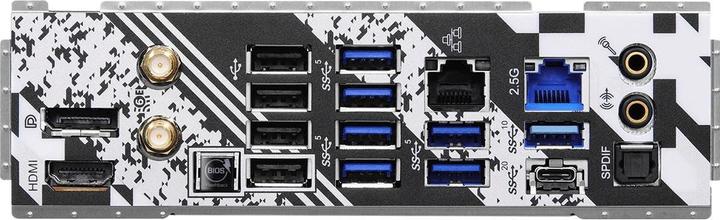

USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.0 (2x), USB-A 3.1 Gen 1 (2x), USB-A 3.1 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 305 mm |
Width | 244 mm |
Height | 39 mm |
Weight | 2300 g |
Length | 45 cm |
Width | 45 cm |
Height | 10 cm |
Weight | 2.50 kg |
