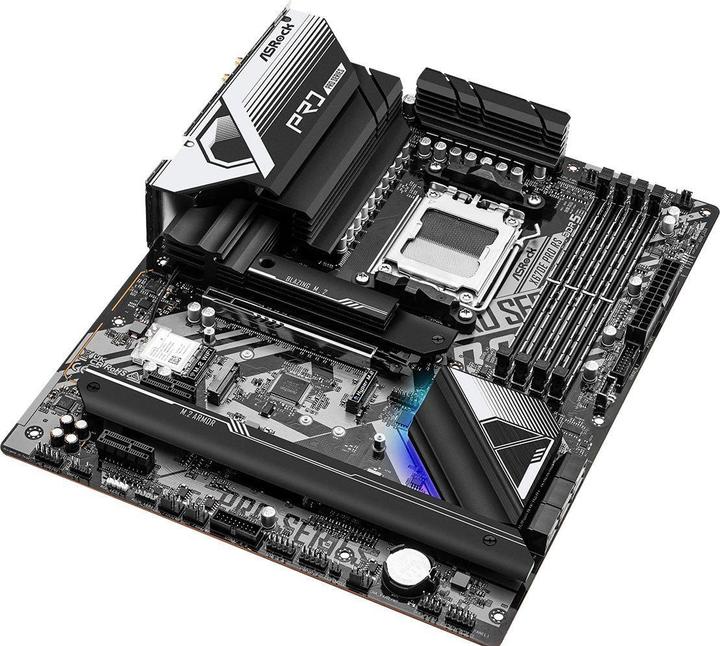

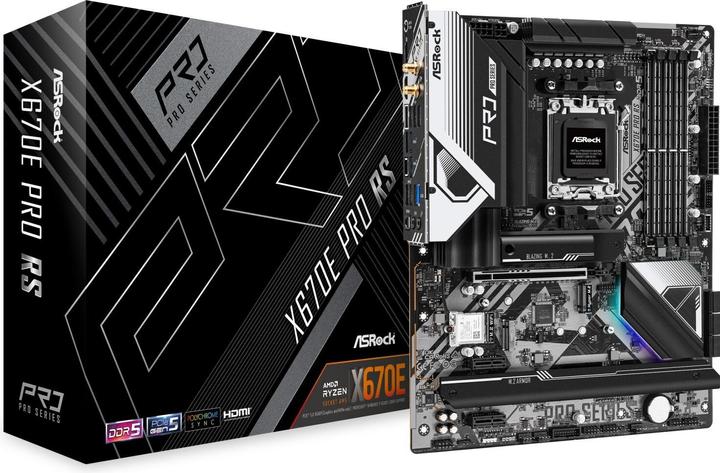

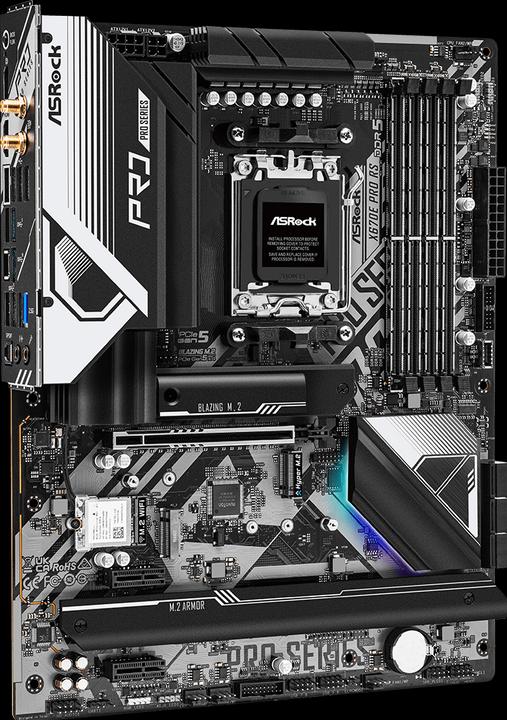

AsRock X670E Pro RS

AM5, AMD X670E, ATX
4Ratings
BrandMore from AsRock
Currently out of stock
Free shipping starting at 50.–

Product details

ASRock X670E Pro RS is a top-tier AM5 socket ATX motherboard for Ryzen processors from the 7000, 8000, and 9000 series.

The Pro RS motherboard offers excellent performance, rock-solid durability, and ultra-fast connectivity, making it well-suited for modern and powerful gaming setups.

ASRock Polychrome RGB Sync allows you to manage all LED accessories of your setup through ASRock's application. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized to create a stunning light art piece. ASRock's application is compatible with Razer Chroma, allowing supported peripherals to be managed through the same program.

  • 14+2+1 phase power supply and SPS, 8-layer PCB
  • 4 x DDR5 DIMM memory support, up to 6600 MHz+ (OC)
  • 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1, 1 x M.2 Key-E for WiFi
  • 5 x M.2 connectors, 6 x SATA
  • Realtek 2.5G LAN, Wi-Fi 6E.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x), USB 2.0 Header (2x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector
Item number
22518304

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBJ70-A0UAYZ
Release date
14.9.2022

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X670E
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
EFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Supported memory speed
6600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)
Video connection version
HDMI 1.4

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (2x), Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
S-ATA III (6x), USB 2.0 Header (2x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (1x)
Number of fan connector
6

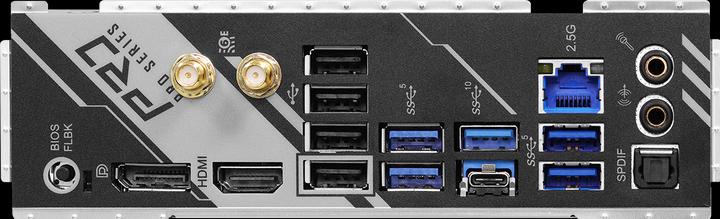

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
244 mm
Width
305 mm
Height
320 mm
Weight
2469 g

Package dimensions

Length
39 cm
Width
10 cm
Height
32 cm
Weight
2.42 kg
