AsRock X570D4U-2L2T/BCM
AM4, AMD X570, mATX8 items in stock at third-party supplier
Product details

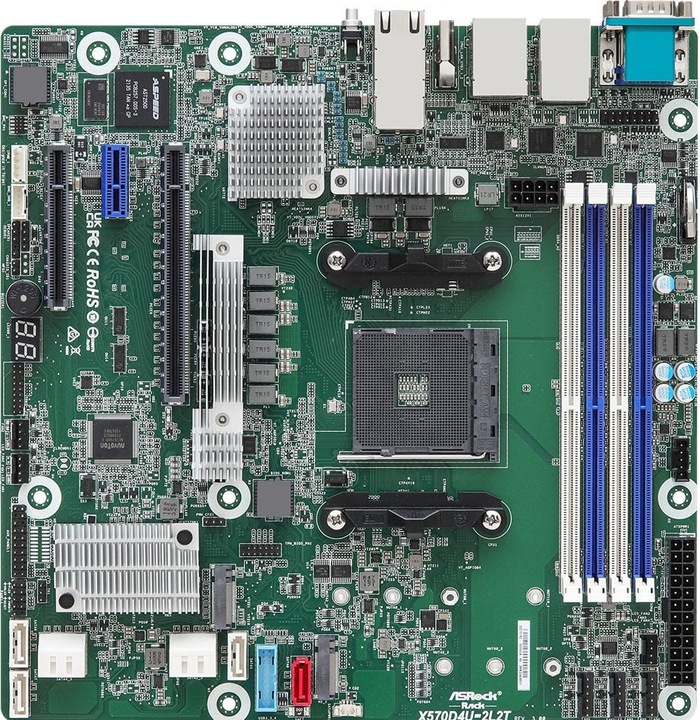

The ASRock Rack X570D4U-2L2T/BCM is a powerful Micro-ATX motherboard designed for use with AMD Ryzen series processors. It supports the AM4 socket and is equipped with the advanced AMD X570 chipset, which provides high performance and efficiency. With up to 128 GB of RAM spread across four DIMM slots, this motherboard allows for flexible memory expansion. Support for DDR4 RAM ensures fast data processing and improved system performance. The motherboard offers a variety of connectivity options, including eight SATA 600 ports and two M.2 interfaces for modern storage solutions. Additionally, it features two 10 Gigabit Ethernet ports as well as two Gigabit Ethernet ports, ensuring excellent network speed and stability. Integrated graphics support requires a compatible CPU and allows for easy use without an additional graphics card.
- Supports AMD Ryzen processors from the 3000, 4000, and 5000 series
- Maximum RAM capacity of 128 GB with support for ECC and non-ECC
- Two 10 Gigabit Ethernet ports for high network speeds
- Two M.2 interfaces for fast storage solutions
- BIOS with UEFI AMI for easy configuration and management.
Processor family | G-Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (7x) |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Item number | 25120416 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-SXG9B7-A0UAYL |
Release date | 12.12.2022 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
BIOS type | UEFI AMI |
Processor family | G-Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3200 MHz |
Supported memory speed | 2666 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Video connections | HDMI (1x), VGA (1x) |
Network connections | RJ45 10 Gigabit Ethernet (2x), RJ45 Gigabit Ethernet (2x) |
Ethernet controller brand | Broadcom |
Ethernet controller | Broadcom BCM57416, Intel I210 |
Max. port speed | 10 Gbit/s |
Internal connection options | M.2 (2x), S-ATA III (7x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x), PCI Express x8 (1x) |
PCI express version (max.) | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x M.2 screws, IO shielding |
Length | 244 mm |
Width | 244 mm |
Length | 31.10 cm |
Width | 28.50 cm |
Height | 7.20 cm |
Weight | 1.12 kg |
