Product details

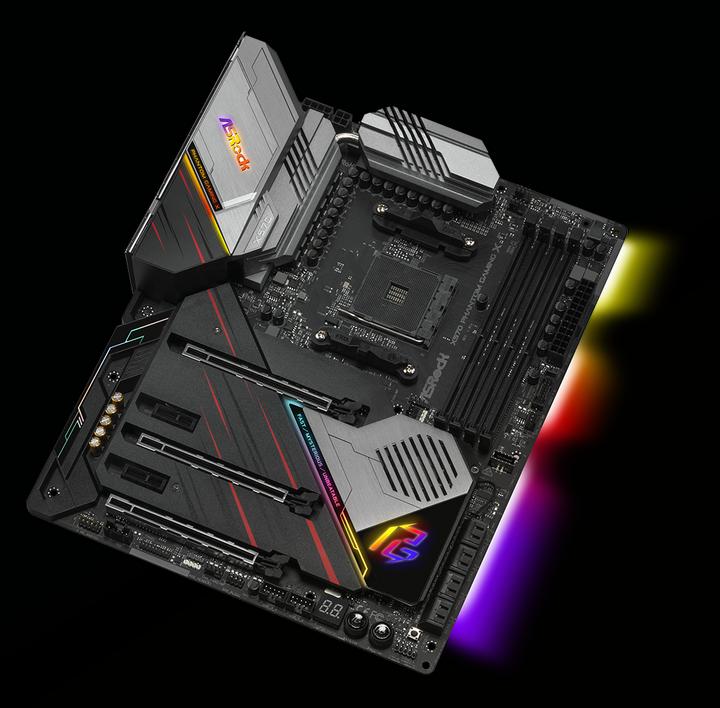

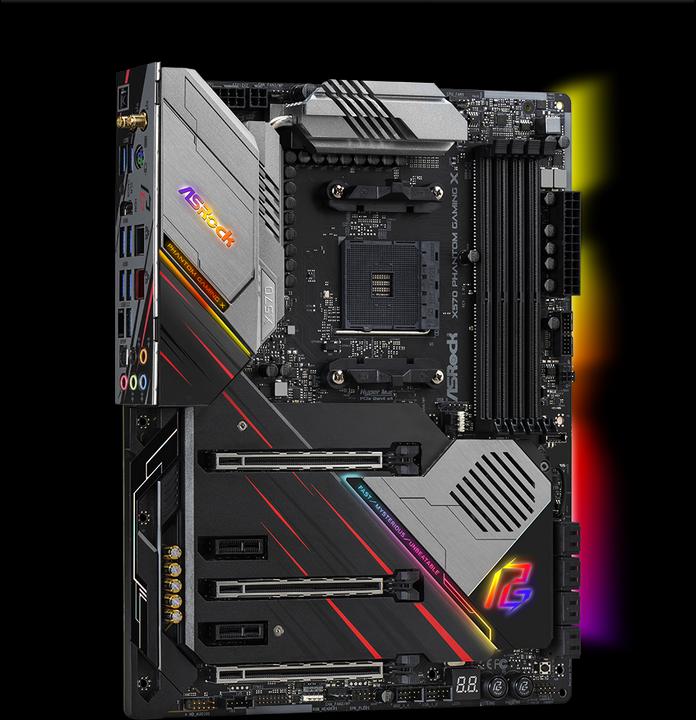

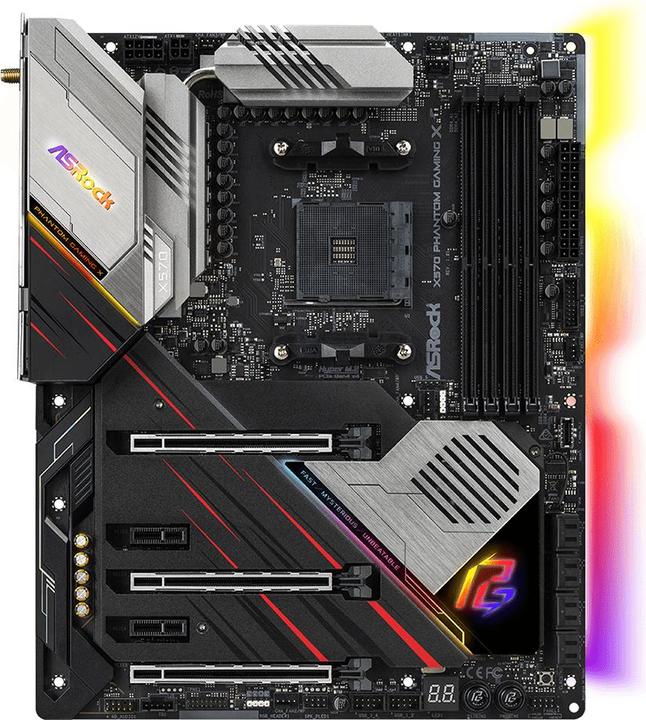

The X570 Phantom Gaming X motherboard features extensive RGB LED lighting that can be controlled via the Polychrome Sync software. For graphics cards, there are two PCIe 4.0 slots in x16 format, which are directly connected to the Ryzen 3000 processor via a total of 16 PCIe 4.0 lanes. The third PCIe x16 slot is connected to the chipset via 4 lanes (PCIe 4.0 with Ryzen 3000; PCIe 3.0 with all previous generations). Additional features include a Wi-Fi/BT module, dual LAN ports with two network chips, onboard sound, reinforced PCIe slots, and numerous internal headers.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 PCIe (1x), S-ATA III (8x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button, RGB header, Thunderbolt header, Trusted Platform Module |
Item number | 11357010 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBAN0-A0UAYZ |
Release date | 7.7.2019 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button, RGB header, Thunderbolt header, Trusted Platform Module |
Operating system compatibility | Windows 10 Home, Windows 10 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2933, DDR4-3200, DDR4-3466, DDR4-4133, DDR4-4200, DDR4-4266, DDR4-4300, DDR4-4400 |
Max. RAM OC | 4666 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4300 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

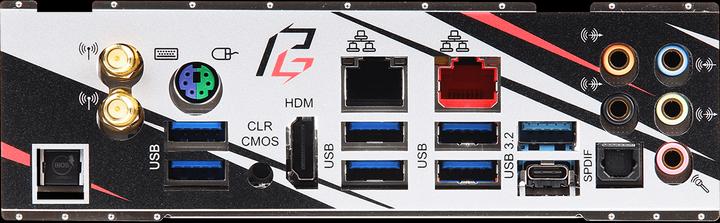

Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Multi-GPU technology | AMD 3-Way CrossFireX, AMD CrossfireX, AMD Quad-GPU CrossFireX, NVIDIA Quad SLI, NVIDIA SLI |
Network connections | RJ45 (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x), Jack 3.5mm (5x) |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 PCIe (1x), S-ATA III (8x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 7 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4 x Serial ATA cable, Serial ATA Cable |
Length | 305 mm |
Width | 244 mm |
Length | 41 cm |
Width | 34.80 cm |
Height | 10 cm |
Weight | 3.10 kg |
