AsRock Rack C246 WSI - Motherboard - Mini-ITX - LGA1151 Socket - C246 - USB 3.1 Gen 1

LGA 1151, Intel C246, Mini-ITX
Ratings
BrandMore from AsRock
Currently out of stock

Product details

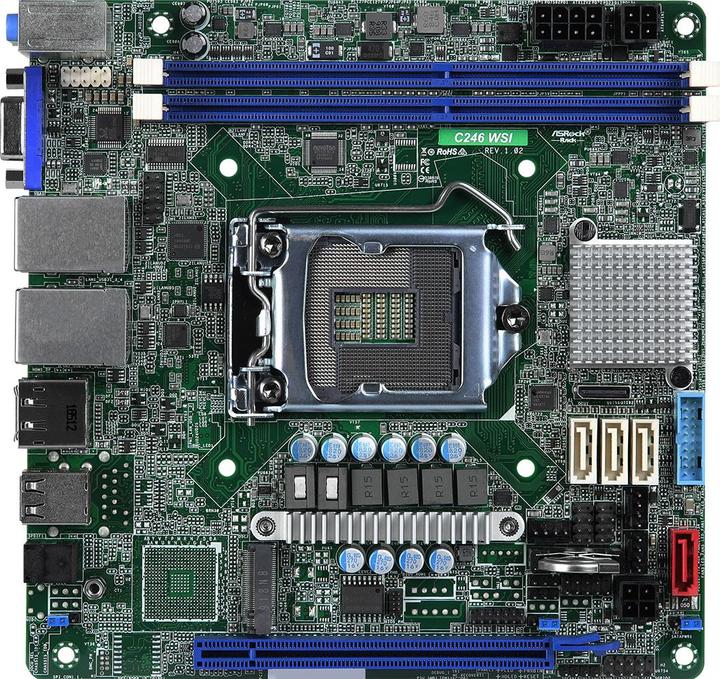

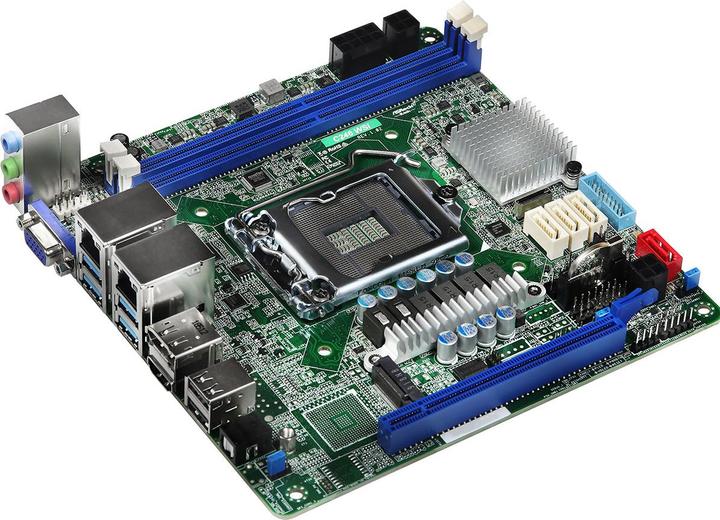

The ASRock Rack C246 WSI is a powerful Mini-ITX motherboard designed for a variety of applications. It supports the LGA1151 processor socket and is equipped with the Intel C246 chipset, which offers broad compatibility with Intel processors, including the Pentium, Celeron, Core i3, i5, i7, and Xeon E3-1200 series. With up to 32 GB of DDR4 RAM and two DIMM slots, this motherboard allows for efficient memory management. Support for SATA-600 and M.2 interfaces ensures fast data transfer rates and flexible storage options. Additionally, the Rack C246 WSI offers a variety of USB ports, including USB 3.1 Gen 1 and Gen 2, as well as two Gigabit LAN ports for a reliable network connection. The integrated HD audio functionality provides a high-quality sound experience, while the compact Mini-ITX form factor design allows for easy integration into various cases.

  • Supports Intel processors from the Celeron, Core i3 to i9, and Xeon E3-1200 series
  • Maximum RAM capacity of 32 GB with two DIMM slots
  • Diverse storage options with 4 x SATA-600 and 1 x M.2 interface
  • Two Gigabit LAN ports for enhanced network connections
  • Integrated HD audio functionality for a high-quality sound experience.

Key specifications

Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Mainboard features
Error Correcting Code
Item number
16368148

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
C246 WSI
Release date
5.5.2021

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1151
Chipset
Intel C246
Mainboard features
Error Correcting Code
Operating system compatibility
Linux, Windows
BIOS type
UEFI AMI

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
32 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)

Network

Network connections
RJ45 Gigabit Ethernet (2x)
Ethernet controller brand
Intel
Ethernet controller
i219-LM GbE, Intel I210

Audio

Chip
Realtek ALC892
Audio Connections
Headphone output (1x)

Internal interfaces

Internal connection options
S-ATA III (4x)

Power supply

Power connectors
4-pin ATX 12V, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
HD Audio (4-channel)

Product dimensions

Length
170.20 mm
Width
1702 mm
Height
1702 mm

Package dimensions

Length
28 cm
Width
24 cm
Height
6 cm
Weight
850 g
