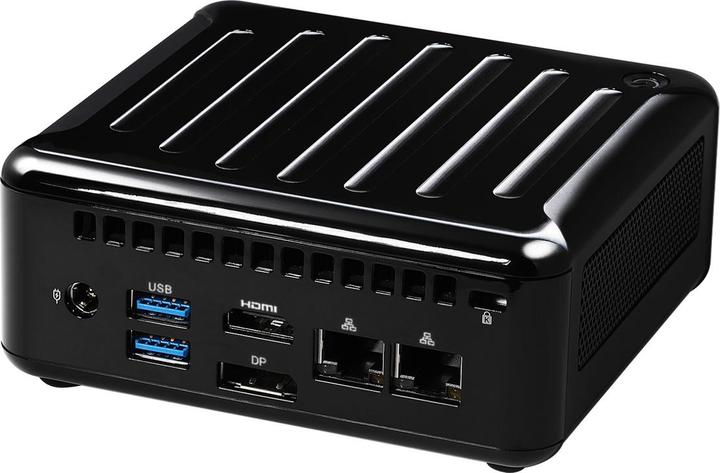

AsRock NUC Box-1240P

Intel Core i5-1240P
2Ratings
BrandMore from AsRock
Delivered between Thu, 2.10. and Wed, 8.10.
More than 10 pieces in stock at supplier
free shipping

Product details

The AsRock NUC Box-1240P is a powerful barebone computer designed for use as a workstation. Equipped with an Intel Core i5-1240P processor and an Intel Iris Xe graphics card, this compact system delivers excellent performance for various applications. The NUC Box-1240P supports up to 64 GB of DDR4 RAM and allows for the installation of both HDD and SSD storage drives via PCI Express. With two Ethernet LAN ports (RJ-45) and support for Wi-Fi 6E as well as Bluetooth 5.2, the NUC Box-1240P is ideally suited for modern network environments. Its compact design and versatile connectivity options make it an ideal choice for users seeking a powerful and flexible solution.

  • Supports up to 64 GB of DDR4 RAM for high performance
  • Two Ethernet LAN ports (2.5 GbE) for fast network connections
  • Compatible with M.2 PCI/SATA Combo for flexible storage options
  • Up to four connectable monitors via HDMI and DisplayPort
  • Compact design for space-saving installations.

Key specifications

Number of processor cores
8 -Core
Graphics card model
Intel Iris Graphics
Internal connection options
M.2 PCI/SATA Combo (1x), S-ATA III (1x)
Network connections
RJ45 (2x)
Video connections
DisplayPort (1x), HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A, USB-C
Item number
31697165

General information

Manufacturer
AsRock
Category
Barebones
Manufacturer no.
90PXG9H0-00EAY100
Release date
16.8.2022
Sales rank in Category Barebones
46 of 563
May include power adapter
Yes

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i5-1240P
Clock frequency
3.30 GHz
Number of processors
1 x
Number of processor cores
8 -Core
Number of threads
16
Socket
BGA 1744
Max. turbo clock rate
4.40 GHz
Max. TDP
28 W
Processor properties
64-bit architecture

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Max. memory slots
2
Max. RAM
64 GB

Graphics card properties

Graphics card model
Intel Iris Graphics
Hardware application range
Workstations
Max. connected monitors
4 x

Internal connections

Internal connection options
M.2 PCI/SATA Combo (1x), S-ATA III (1x)
Data storage controller
Intel I225-V

External connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.2 Gen 2 (1x), USB-C 3.2 Gen 2 (2x)

Network

Network connections
RJ45 (2x)

Wireless transmission

Connectivity
WLAN
Wi-Fi standard
Wi-Fi 6 / 802.11ax
Bluetooth version
5.2

Video connections

Video connections
DisplayPort (1x), HDMI (1x)

Power supply properties

Power
90 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
VESA bracket

Product dimensions

Weight
1000 g
Width
110 mm
Length
117.50 mm
Height
47.85 mm

Package dimensions

Length
23 cm
Width
14.60 cm
Height
12.10 cm
Weight
1.46 kg

30-day right of return
24 Months Warranty (Bring-in)
