AsRock MB Intel 1700 B760 PRO RS/D4
LGA 1700, Intel ICH7, ATXMore than 10 items in stock at supplier
Product details

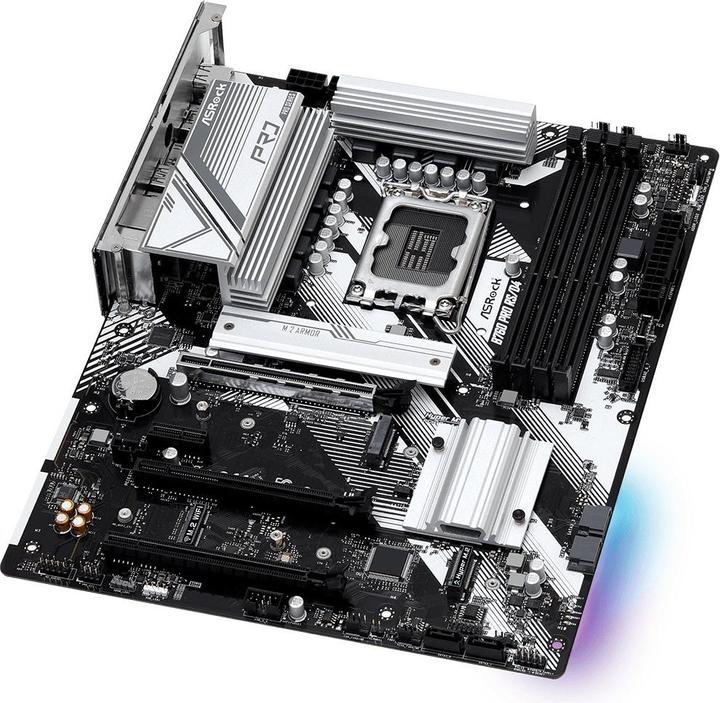

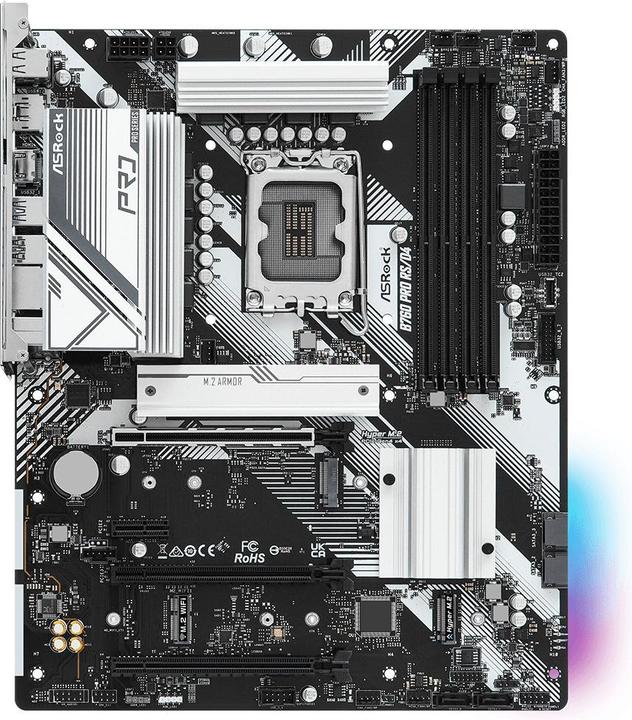

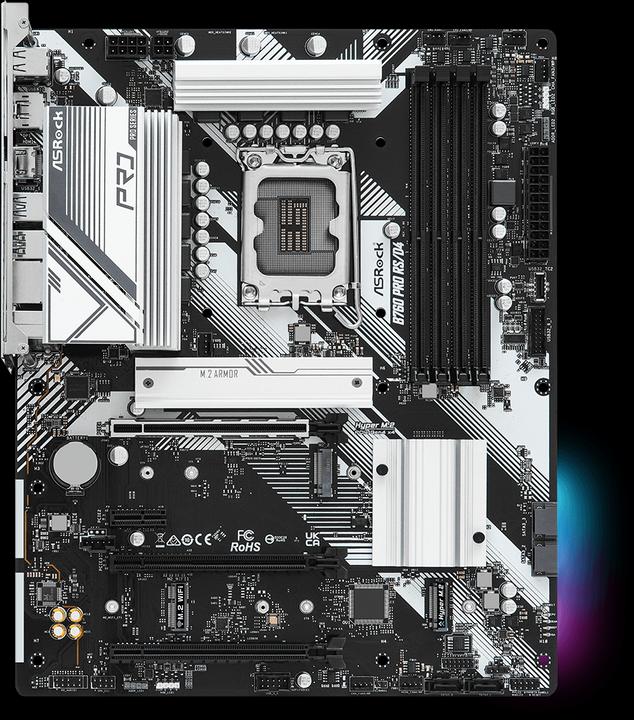

The AsRock B760 Pro RS/D4 is a powerful motherboard designed for use with Intel Core™ processors. It supports the LGA 1700 socket and is compatible with a variety of Intel® Core™ i3, i5, i7, and i9 processors. This motherboard offers a maximum RAM capacity of 128 GB and supports DDR4 SDRAM with speeds of up to 5333 MHz. The four DIMM slots allow for flexible memory expansion. Additionally, the B760 Pro RS/D4 is equipped with modern storage drive interfaces such as M.2 and SATA III, ensuring high data transfer rates and versatile storage options. The RAID support for various levels (0, 1, 5, 10) provides added security and flexibility for data storage. With a 2.5 Gigabit Ethernet port from Realtek, the motherboard is also ready for fast network connections. The ATX form factor ensures easy integration into standard PC cases.
- Supports Intel® Core™ processors from the i3, i5, i7, and i9 series
- Maximum RAM capacity of 128 GB with support for DDR4 SDRAM
- RAID support for levels 0, 1, 5, and 10
- Modern storage drive interfaces: M.2 and SATA III
- 2.5 Gigabit Ethernet port for fast network connections.
Processor family | Celeron, Core i7, Core i9, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | USB 2.0 Header (2x) |
Mainboard features | Trusted Platform Module |
Item number | 23804442 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBL80-A0UAYZ |
Release date | 3.1.2023 |
Sales rank in Category Motherboards | 289 of 965 |
External links |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel ICH7 |
Mainboard features | Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i7, Core i9, Pentium |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 |
Supported memory speed | 3200 MHz, 4000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Video connections | DVI-D (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (1x) |
Internal connection options | USB 2.0 Header (2x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (2x), USB-A 3.2 Gen 1 (1x) |
Power connectors | 20+8 pin ATX, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 300 mm |
Weight | 400 g |
Length | 36 cm |
Width | 30 cm |
Height | 7 cm |
Weight | 1.54 kg |
