AsRock Mainboard E3C246D4I-2T

LGA 1151, Intel C246, Mini-ITX
1Ratings
BrandMore from AsRock
Delivered between Fri, 6.6. and Wed, 11.6.
Only 3 items in stock at supplier

Product details

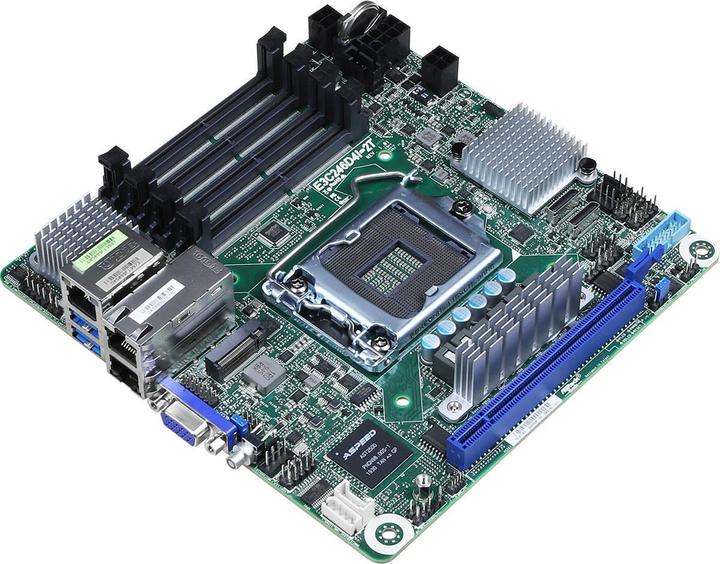

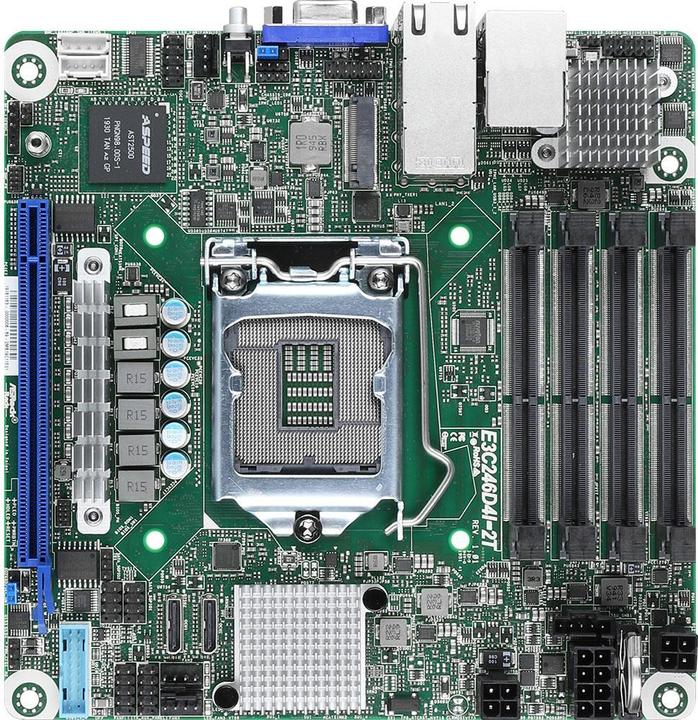

The ASRock Rack E3C246D4I-2T is a powerful Mini-ITX motherboard designed for use with Intel Xeon E-2100 processors. It offers a variety of features that make it ideal for server and workstation applications. With an LGA1151 socket and the Intel C246 chipset, it supports up to 128 GB of DDR4 RAM, ensuring high performance and efficiency. The motherboard is equipped with four SO-DIMM slots that support both ECC and non-ECC RAM. Additionally, it features two 10 Gigabit LAN ports for fast network connectivity. The integrated graphics are provided by the ASPEED AST2500 graphics chip, which has 512 MB of dedicated video memory. The E3C246D4I-2T also offers a range of USB ports, including USB 3.2 Gen 1 and Gen 2, as well as several internal connection options for mass storage.

  • Supports up to 128 GB DDR4 RAM with ECC and non-ECC options
  • Two 10 Gigabit LAN ports for high network speed
  • Integrated graphics with ASPEED AST2500 and 512 MB dedicated video memory
  • Variety of USB ports, including USB 3.2 Gen 2
  • Compatible with Intel Xeon E-2100 processors.

Key specifications

Processor family
Xeon E
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (8x)
Mainboard features
Trusted Platform Module
Item number
15676738

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
E3C246D4I-2T
Release date
16.4.2021

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1151
Chipset
Intel C246
Mainboard features
Trusted Platform Module
Operating system compatibility
Linux, Windows 10, Windows 11 Home, Windows 7, Windows 8, Windows 8.1
BIOS type
Ami

Processor

Processor family
Xeon E

Memory

Memory form factor
SO-DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

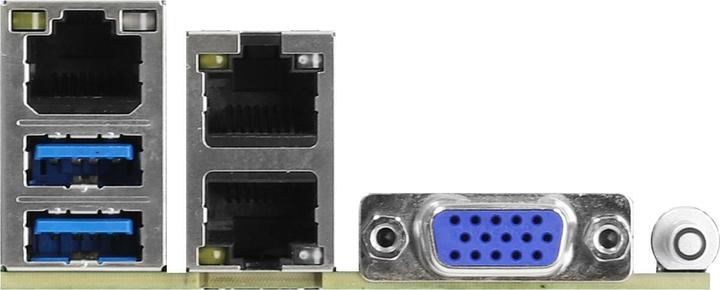

Video connections
D-Sub (1x)

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Realtek
Ethernet controller
Intel X550, Realtek RTL8211E
Max. port speed
10 Gbit/s

Internal interfaces

Internal connection options
S-ATA III (8x)
Expansion slot
PCI Express x16 (3x), PCI Express x4 (2x)
PCI express version (max.)
3

Further connections

USB ports
USB-C
Exact USB ports
USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
4-pin ATX 12V, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
170.20 mm
Width
170.20 mm
