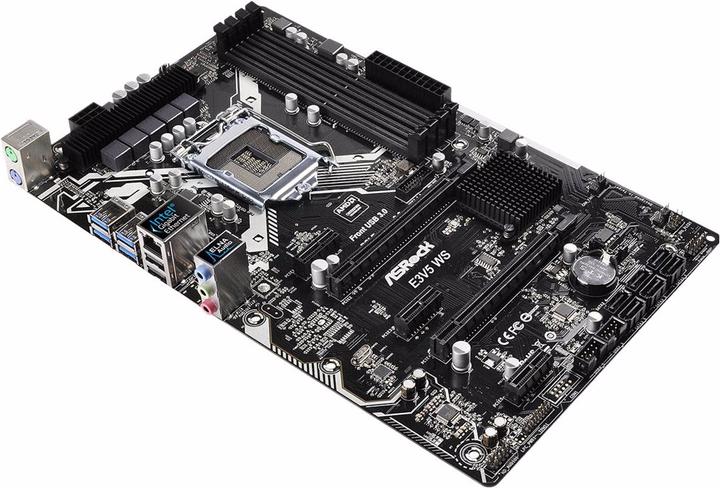

The AsRock E3V5 WS motherboard is a powerful and versatile platform specifically designed to support Intel processors. With an LGA 1151 socket, it is compatible with a variety of Intel® Celeron®, Pentium®, and Xeon E3 v5 processors. The motherboard supports up to 64 GB of DDR4-SDRAM, enabling efficient and fast data processing. The dual-channel memory architecture enhances bandwidth and performance. Additionally, the E3V5 WS offers a variety of storage options, including SATA III and RAID support, to maximize data security and speed. The integrated Quad-GPU CrossFireX technology allows for parallel processing, making it ideal for graphics-intensive applications. With Gigabit Ethernet ports, the motherboard is also designed for fast network connections, making it an excellent choice for professional applications.
Processor family | Celeron, Core i3, Core i5, Core i7, Pentium, Xeon E3 v5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector, Trusted Platform Module |
Item number | 15662300 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXB1G0-A0UAYZ |
Release date | 15.4.2021 |
Form factor | ATX |
Socket | LGA 1151 |
Chipset | Intel C232 |
Mainboard features | Front panel audio connector, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 7, Windows 8.1 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5, Core i7, Pentium, Xeon E3 v5 |
Memory form factor | U-DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 2133 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219LM |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (2x) |
PCI express version (max.) | 3 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 191 mm |
Width | 305 mm |
