AsRock B860M Steel Legend WiFi DDR5 Intel S retail
LGA 1851, Intel B860, mATX10 pieces in stock at third-party supplier
Product details

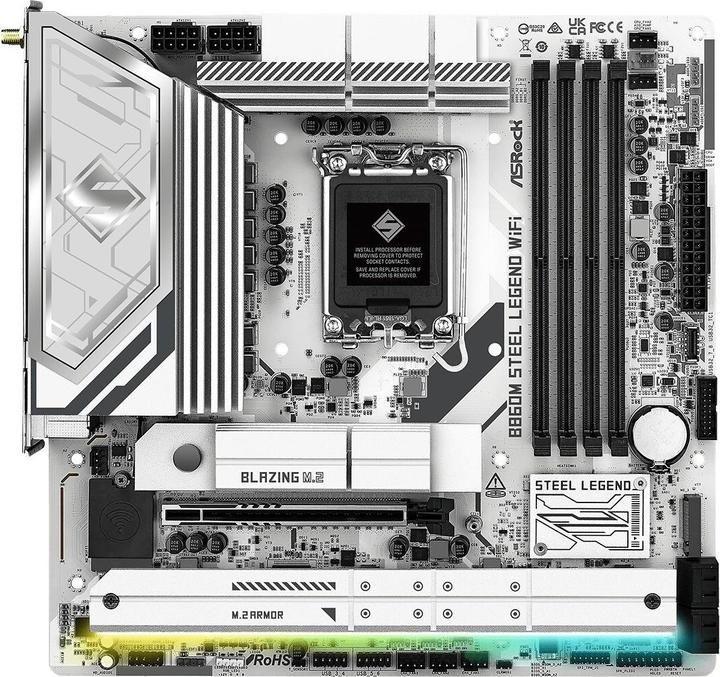

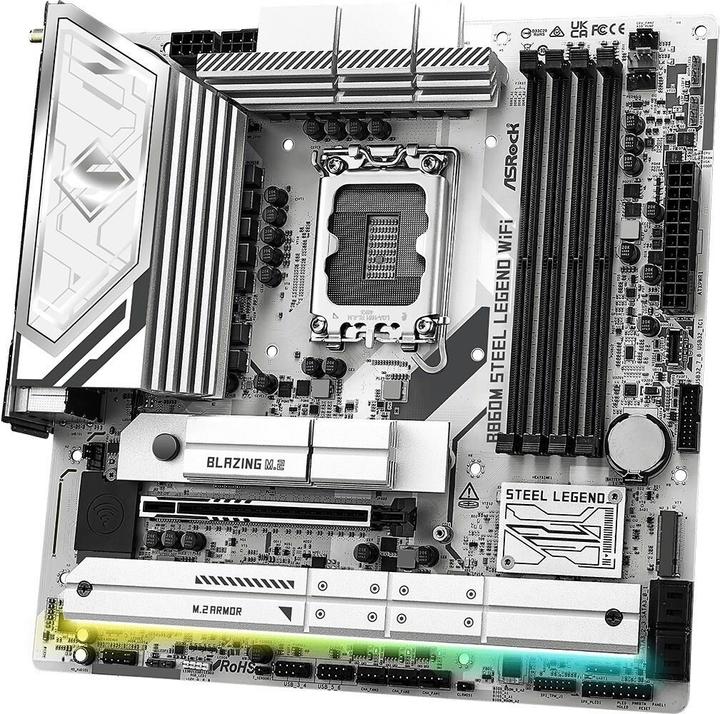

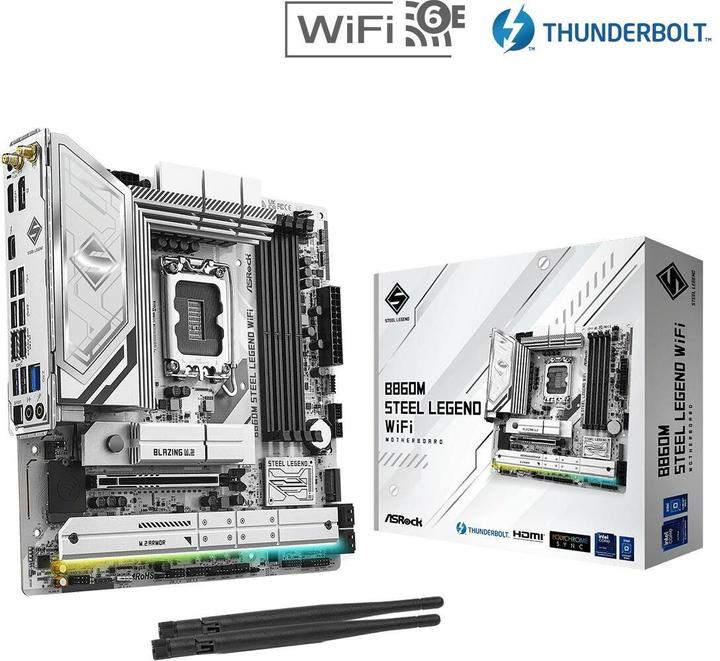

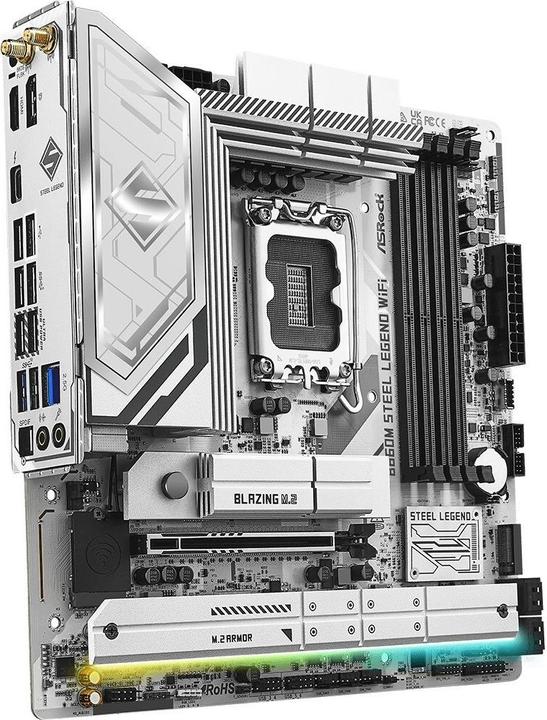

The ASRock B860M Steel Legend WiFi is a powerful Micro-ATX motherboard designed for modern computing applications. It supports the LGA 1851 socket and is equipped with the Intel B860 chipset, ensuring high compatibility with Intel Core Ultra processors of the 2nd generation. With up to 256 GB of DDR5 RAM and four DIMM slots, it provides ample memory for demanding applications and multitasking. The integrated networking features include 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, enabling fast and reliable connectivity. The motherboard has multiple USB ports, including USB4 and USB-C, as well as various M.2 interfaces for high-speed storage. Support for HD audio with 8-channel capability delivers an impressive sound experience. The B860M Steel Legend WiFi is thus an excellent choice for users who prioritize performance, connectivity, and expandability.
- Supports up to 256 GB of DDR5 RAM with 4 DIMM slots
- Integrated networking features: 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E
- Variety of USB ports, including USB4 and USB-C
- Three M.2 interfaces for high-speed storage
- HD audio with 8-channel support for a high-quality sound experience.
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x), USB 2.0 Header (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Item number | 53181632 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBQF0-A0UAYZ |
Release date | 27.11.2024 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8666 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

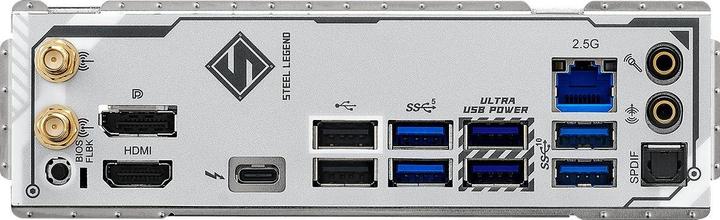

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x), Headphone output (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x), USB 2.0 Header (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |
USB ports | Thunderbolt, USB-A, USB-C |
Exact USB ports | Thunderbolt (1x), USB-A 2.0 (6x), USB-C 4 (2x) |
Power connectors | 20+4-pin ATX, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
