AsRock B860M Lightning WiFi DDR5 Intel S retail
LGA 1851, Intel B860, mATX9 pieces in stock at third-party supplier
Product details

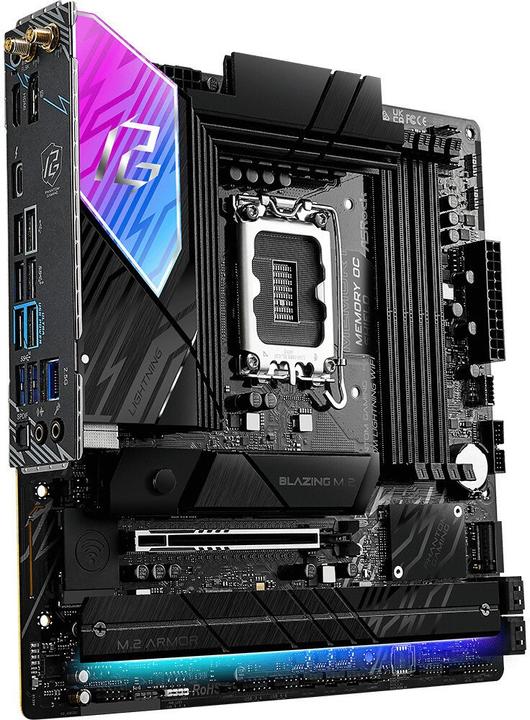

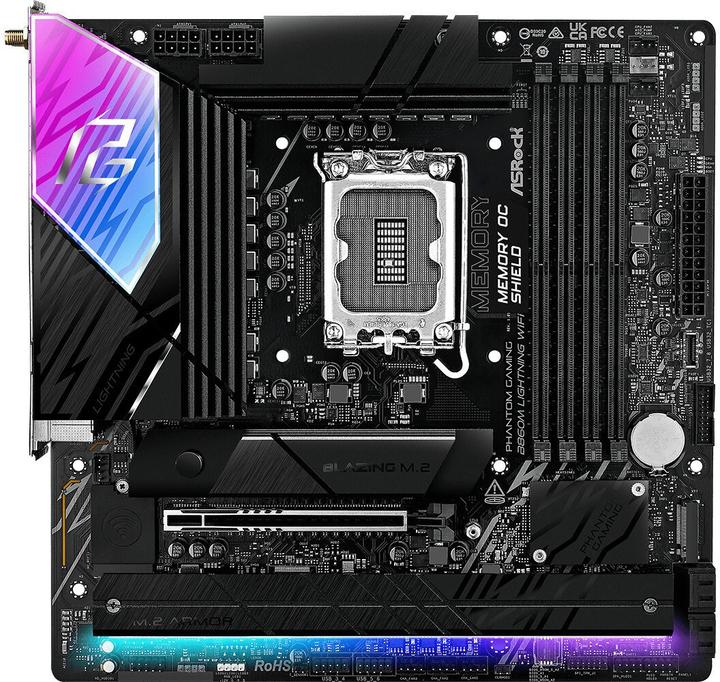

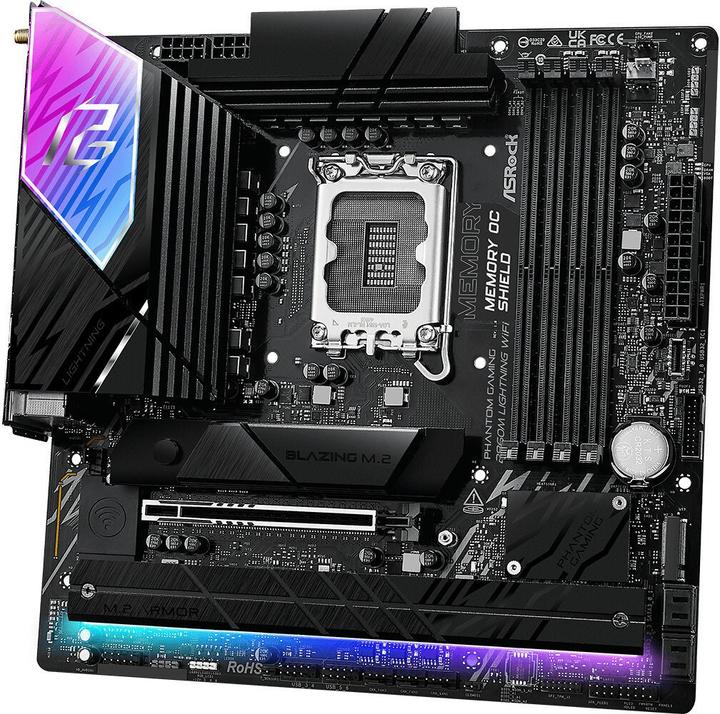

The ASRock B860M Lightning WiFi is a powerful Micro-ATX motherboard designed for modern computing applications. It supports the LGA 1851 socket and is equipped with the Intel B860 chipset, ensuring high compatibility with Intel Core Ultra processors of the 2nd generation. The motherboard accommodates up to four DIMM DDR5 RAM modules, allowing for a maximum memory capacity of 256 GB. With a variety of connectivity options, including USB4, USB-C, and HDMI, it is ideal for users seeking a flexible and future-proof solution. The integrated Wi-Fi functionality with Wi-Fi 6E and the 2.5 Gigabit LAN ports provide fast and reliable network connections. The B860M Lightning WiFi is therefore an excellent choice for gaming and multimedia applications, as well as for professional workstations.
- Supports up to 256 GB DDR5 RAM with 4 DIMM slots
- Integrated Wi-Fi with Wi-Fi 6E for fast wireless connections
- 1x PCI-Express 5.0 x16 slot for powerful graphics cards
- Versatile connectivity options, including USB4 and USB-C
- HD Audio with 8-channel support for an immersive sound experience.
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Item number | 53181631 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBQG0-A0UAYZ |
Release date | 27.11.2024 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8666 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

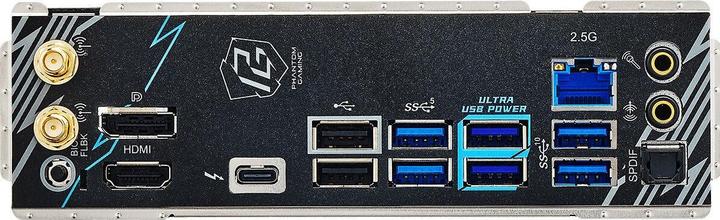

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt 4 (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Killer NIC |
Ethernet controller | Killer E3100G |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | Thunderbolt 4, USB-A, USB-C |
Exact USB ports | Thunderbolt 4 (1x), USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x), USB-C 4 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
