AsRock B850M-X

AM5, AMD B850, mATX
Ratings
BrandMore from AsRock
Delivered between Thu, 3.7. and Fri, 4.7.
7 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

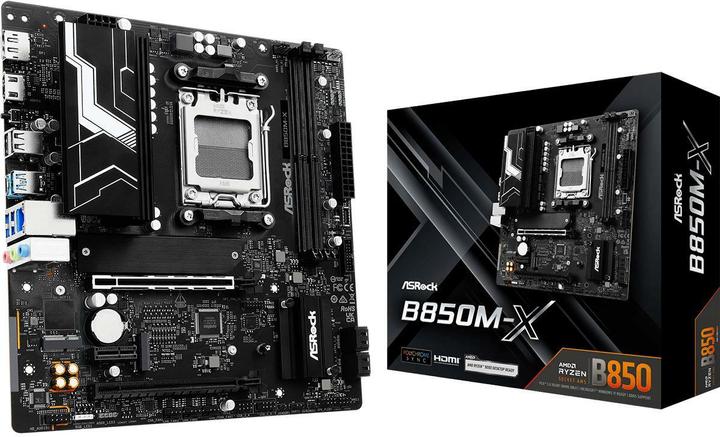

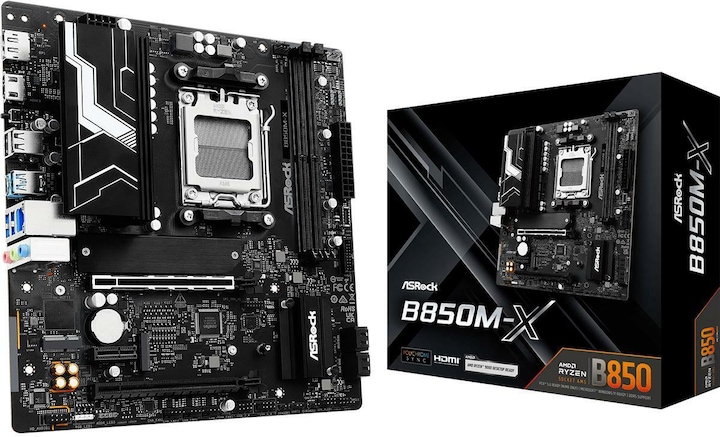

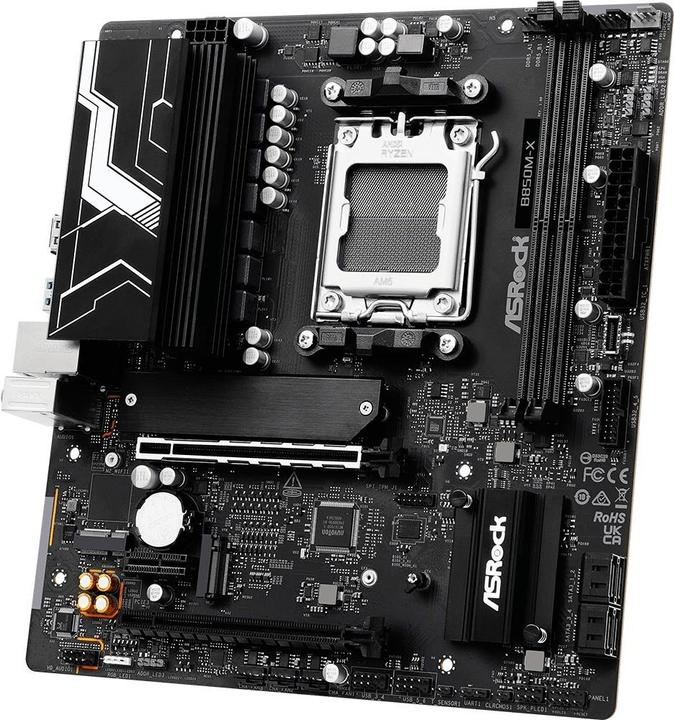

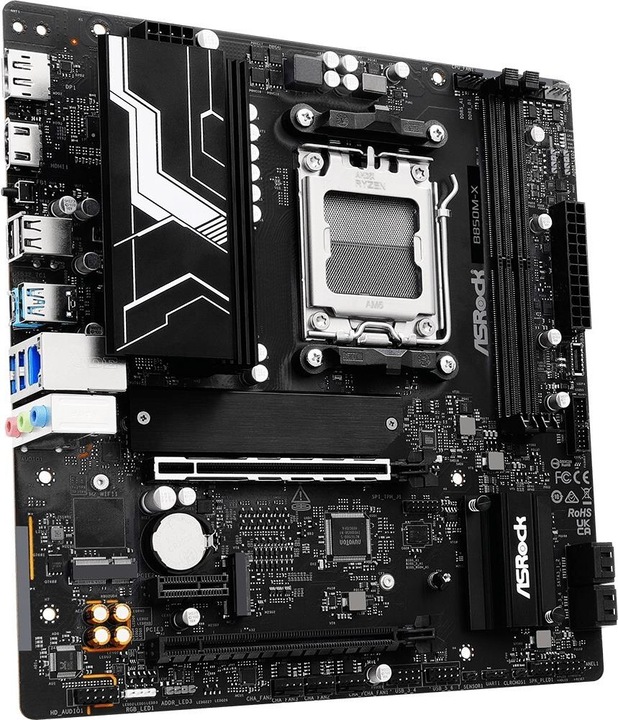

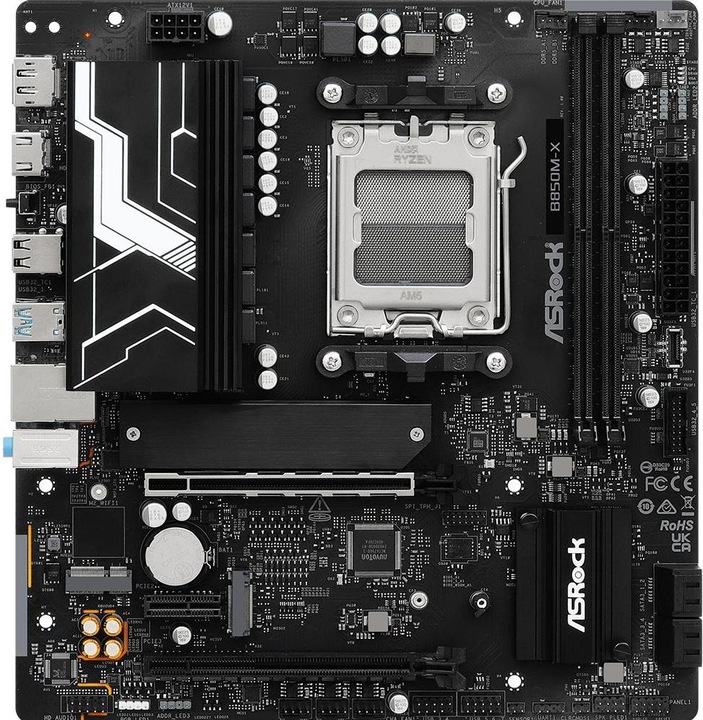

The ASROCK B850M-X is a Micro-ATX motherboard with the mid-range AMD B850 chipset and AMD AM5 socket. It supports Ryzen 9000, 8000 and 7000 CPUs. Graphics cards and NVMe SSDs are connected via PCIe 5.0. To get the best out of your gaming PC, the CPU can be overclocked via the motherboard to achieve higher clock rates. A stable power supply for the processor is guaranteed so that even high-end CPUs can work at full power for longer periods of time. The DDR5 memory can also be fully utilised through overclocking. The ASROCK B850M-X offers a BIOS flashback for emergencies.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 (1x), M.2 PCIe (2x), S-ATA III (4x)
Mainboard features
Front panel audio connector, RGB header
Item number
53181601

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBR10-A0UAYZ
Release date
27.11.2024

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B850
Mainboard features
Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
5600 MHz
Supported memory speed
5600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

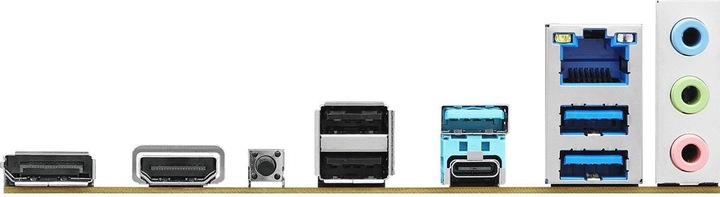

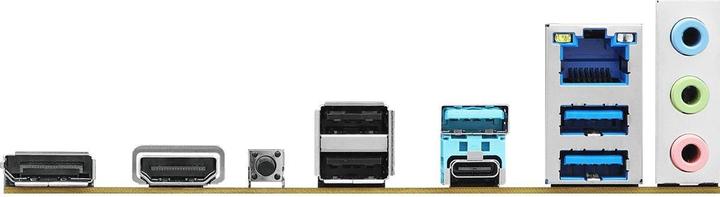

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (3x), Jack 3.5mm Line In (1x), Microphone

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (1x), M.2 PCIe (2x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (2x)
PCI express version (max.)
5
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX, 4-pin Molex, 8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece, Sata Cables, Screws

Product dimensions

Length
226 mm
Width
244 mm

Package dimensions

Length
30 cm
Width
26.50 cm
Height
6 cm
Weight
1.19 kg
