Product details

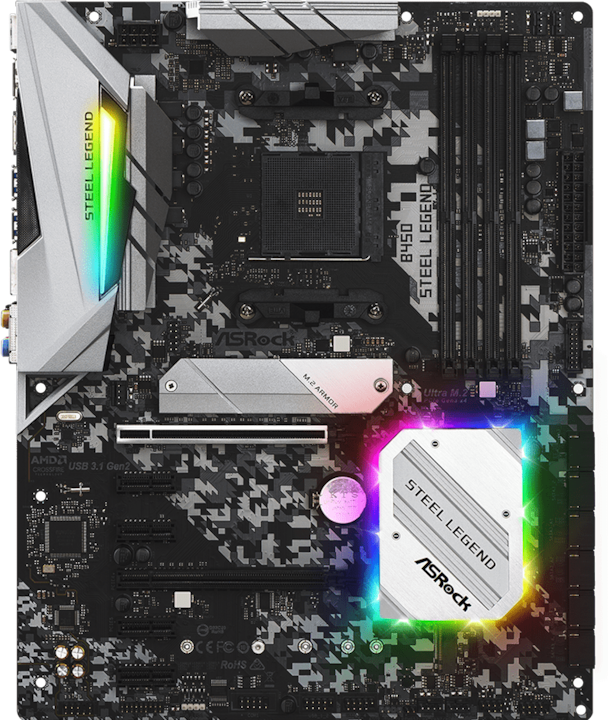

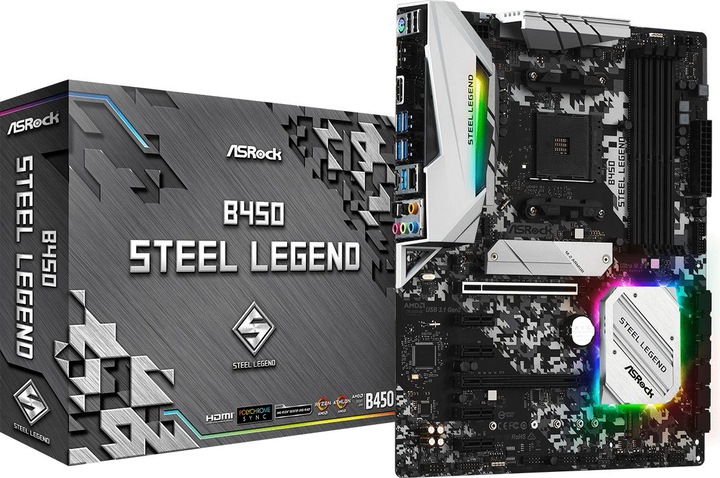

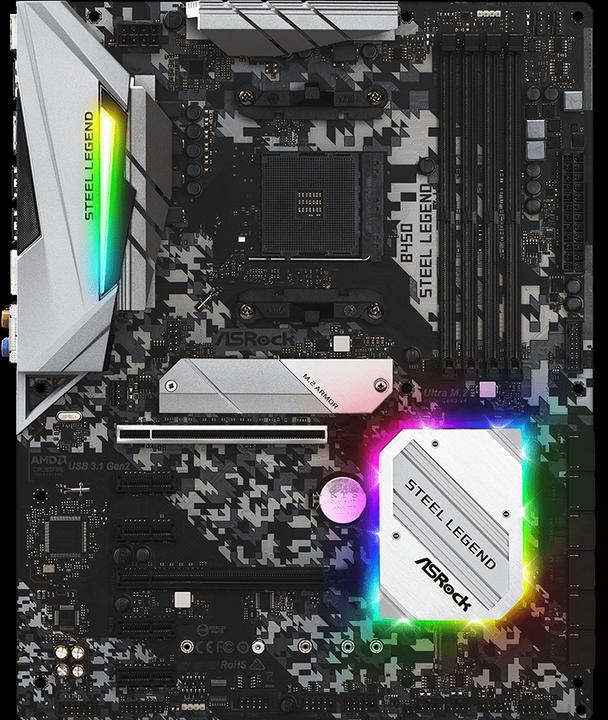

Steel Legend represents the philosophy of indestructible durability and irresistible aesthetics. Developed based on the most demanding specifications and features, the Steel Legend series is aimed at everyday users and mainstream enthusiasts. Stable and reliable performance is ensured through the selection of high-performance materials and components. The result is a motherboard that handles every task with style.
Processor family | Ryzen 2nd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (6x) |
Mainboard features | COM Port Header, RGB header, Trusted Platform Module |
Item number | 10684162 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBA00-A0UAYZ |
Release date | 6.3.2019 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | COM Port Header, RGB header, Trusted Platform Module |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2400 |
Max. RAM OC | 3533 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |

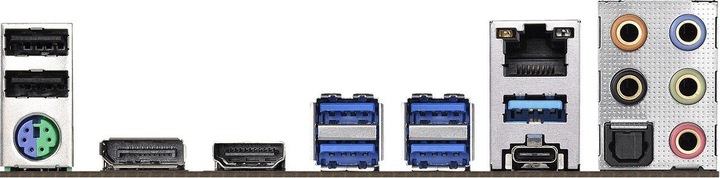

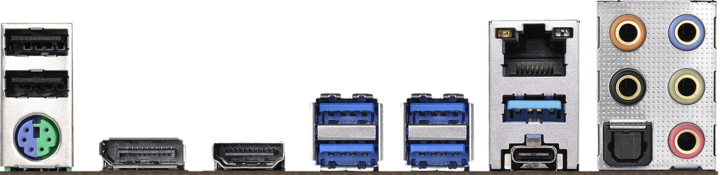

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.0b |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | RTL8111GN |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (4x) |
Number of fan connector | 6 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (4x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x Standoff for M.2, 2x screws for M.2, Quick Installation Guide |
Length | 305 mm |
Width | 244 mm |
Height | 30.50 mm |
Weight | 1816 g |
Length | 36 cm |
Width | 30 cm |
Height | 7.60 cm |
Weight | 1.84 kg |
Specifications may include unverified machine translations.
